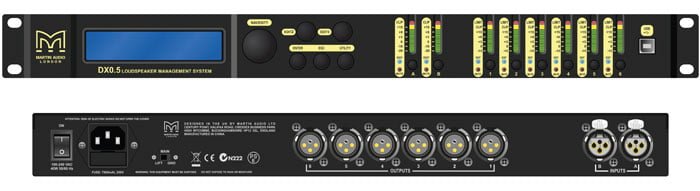

Loudspeaker Management System

  • Professional 2-input, 6-output system processor for passive and powered PAs
  • Sophisticated, intuitive EQ, crossover, delay and dynamics processing optimizes and protects your system
  • 5 operating modes: 2 x stereo sub, 3 x stereo,
  • USB port for simple programming via PC
Martin Audio
Tag: Category: SKU: OB/PRO/MAR02

Offered to partner our new CDD range the DX0.5 adds affordable loudspeaker system management to the existing range of DX loudspeaker controllers. Delivering EQ, crossover, processing and system protection, the DX0.5 2×6 speaker processor provides complete optimisation for both passive and powered loudspeaker systems.

Each input and output is loaded with a huge range of digital processing including flexible EQ, crossover, delay and limiting solutions. It delivers everything you need to professionally optimise loudspeaker systems of nearly any size. The DX0.5 utilizes high-end 24-bit AKM® AD/DA converters with 120dB dynamic range for class-leading sound quality. 24 presets and pre-configured preset files downloadable from the Martin Audio website, users can simply install these via the software application and front panel USB or define and store their own settings. With simple I/O routing and configuration, the DX0.5 is an ultra-flexible processor, ideal for a wide range of portable and installed applications.

Features

  • Professional 2-input, 6-output system processor for passive and powered PAs
  • Sophisticated, intuitive EQ, crossover, delay and dynamics processing optimizes and protects your system
  • High-end 24-bit AKM AD/DA converters with 120dB dynamic range
  • Two balanced XLR inputs with level control, mute, 600ms delay and 5-band parametric/shelving EQ
  • Six balanced XLR outputs with level control, mute, polarity invert, dedicated high and low pass filters, 7-band parametric/shelving EQ, 600ms delay, and limiting
  • Convenient front-panel controls for parameter editing and input/output muting
  • USB port for simple programming via PC
  • Linkable inputs and outputs for easy stereo configuration
  • 7-segment LED metering for input/output level or limiter activity
  • 5 operating modes: 2 x stereo sub, 3 x stereo,
  • 2 x 2-way sub, 2 x 3-way and 1 x 6-way
  • 24 presets for storing your Martin Audio or other system parameters
  • Switch mode power supply: 100V – 240V
  • Compact, single rack unit design
  • Approximate shipping weight: 4.0 kg



Applications

  • Live sound loudspeaker management
  • Active monitor systems
  • Fixed installations







INPUTS 2 electronically balanced analogue
CMRR >58dB
OUTPUTS 6 electronically balanced analogue
MAX OUTPUT 21dBu
FREQUENCY RESPONSE 20Hz-20kHz ± 0.2dB
DYNAMIC. RANGE 120dB
DISTORTION < .004% 20Hz-20kHz
MAXIMUM DELAY >600 ms
MIN STEP SIZE 20 μS
INPUT GAIN ± 15dB in 0.1dB steps
OUTPUT GAIN 6dB to -12dB in 0.1dB steps plus mute

PARAMETRIC EQUALISATION
FILTERS 5 per input / 7 per output
FILTER GAIN ±15dB in 0.05dB steps
FREQUENCY RANGE 20Hz – 20kHz, 1/24 octave steps
FILTER BW 3 to 0.05 in 0.05 steps

HIGH AND LOWPASS FILTERS
FREQUENCY RANGE 20Hz – 20kHz

RESPONSES
BUTTERWORTH 6dB, 12dB, 18dB, 24dB / Octave
LINKWITZ-RILEY 12dB, 24dB / Octave
BESSEL 12dB, 24dB / Octave

LIMITERS
THRESHOLD 20dBu to -10dBu
ATTACK TIME 5ms to 200ms
RELEASE TIME 0.1 – 3.0s ±0.1s increments
DISPLAY 2 x 24 character blue LCD
INPUT METER 2 x 7 point, -20dB to 15dB
OUTPUT METER 6 x 7 point, -15dB to 15dB into limit

CONNECTORS
INPUTS 3 pin female XLR
OUTPUTS 3 pin male XLR
EXTERNAL USB TYPE-B (USB1.1)

Program via Windows-based PC
Download app and driver from:
www.martin-audio.com/software/software

POWER 3 pin IEC
POWER 100 to 240V @ 50/60Hz
CONSUMPTION: 40 watts
DIMENSIONS (W) 482mm x (H) 44mm x (D) 229mm
(W) 19ins x (H) 1.75ins (1U) x (D) 9ins
WEIGHT 2.6kg (5.8lbs)
