Compact 6−Input Presentation Switcher/Scaler
- HDMI and VGA Inputs; HDMI and HDBaseT Outputs
- Microphone Input
- Audio Embedding and De−embedding
- Audio Equalization, Mixing, Delay
- Auto−Input Switching
- Built−in ProcAmp
- Resolution − Up to UXGA/1080p
The VP−440 is a high−performance presentation scaler/switcher with four HDMI and two computer graphics (VGA) inputs. The unit scales the video, embeds the audio and outputs the signal to an HDMI output and an HDBaseT output simultaneously. The unit includes analogue and embedded audio inputs and outputs.
- PixPerfect™ Scaling Technology – Kramer’s precision pixel mapping and high−quality scaling technology. High−quality 3:2 and 2:2 pull down de−interlacing and full up− and down−scaling of all video input signals.
- HDTV Compatible.
- HDCP Compliant.
- HDBaseT Certified. Class B 70m
- System Range – For the HDBT inputs and outputs, up to 70m (230ft).
- Cables – For optimum range and performance using HDBaseT™, use Kramer’s BC−UNIKat cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Max VGA Resolution – 1920 x 1200 @60Hz.
- Output Resolutions – Up to UXGA/1080p output resolutions.
- Multiple Aspect Ratio Selections – Full, best fit, overscan, underscan, letter box and panscan.
- Built-in ProcAmp – Color, hue, sharpness, noise, contrast and brightness.
- Colour Sampling – Supports 4:4:4 (RGB and YUV) as well as 4:2:2 (YUV) color sampling in native mode.
- Constant Output Sync – No output disruption while switching between inputs when no video is detected.
- Powerful Audio Features – Via DSP technology including audio equalization, mixing, delay, etc.
- Auto Input Switching – Last connected & auto−scan, selectable.
- Audio – Unbalanced stereo and embedded audio for HDMI/HDBT with individual input level controls.
- Companion AFV (Audio-Follow-Video) – Stereo audio for every input, on terminal blocks.
- Microphone Input – For mixing, switching or talk−over.
- Dedicated RS-232 Port – For bidirectional data tunneling via HDBaseT.
- Front Panel Lockout.
- Non-Volatile Memory – Saves final settings.
- Flexible Control Options – Front panel buttons, Ethernet with built−in Web pages, OSD (on−screen display), RS−232, remote contact closure switches.
- Size – Desktop – Mount 2 units side-by-side in a 1U rack space with the optional RK-1 adapter.

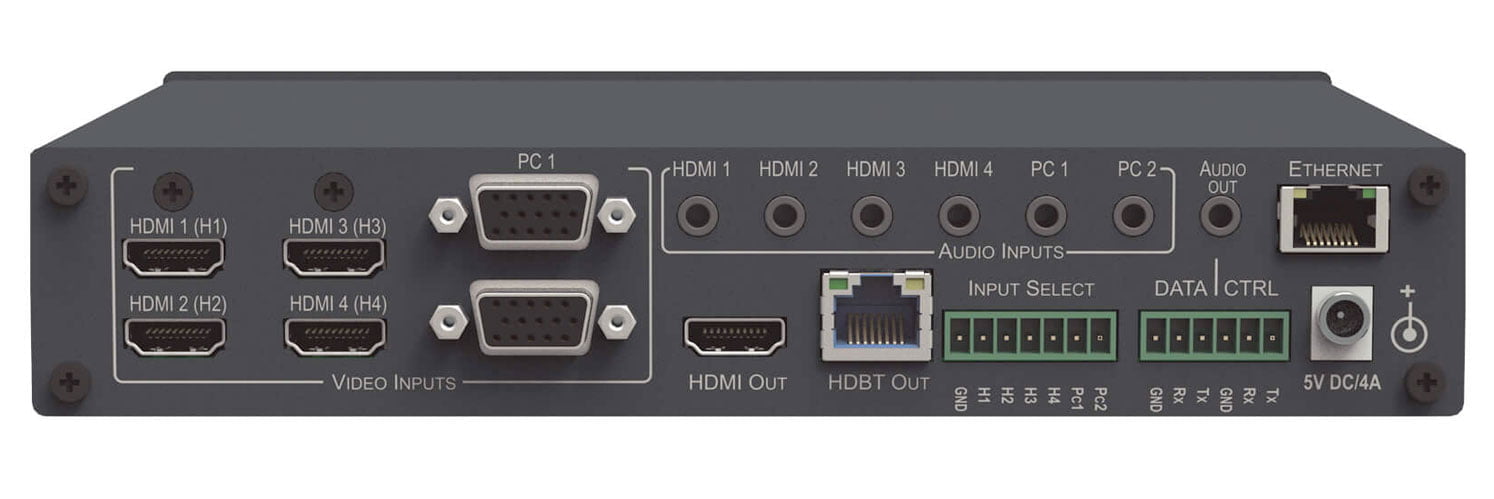

INPUTS: | 4 HDMI connectors (HDMI, HDCP version 1.4); 2 VGA on a 15−pin HD connector; 6 unbalanced stereo audio on 3.5mm mini jack connectors; 1 mic on a 6.3mm jack connector (with selectable 48V phantom power). |
OUTPUTS: | 1 HDMI connector (HDMI, HDCP version 1.4); 1 HDBT on a RJ−45 connector; 1 unbalanced stereo audio on a 3.5mm mini jack connector. |
BANDWIDTH: | Up to 1080p, UXGA. |
SWITCHING TIME BETWEEN INPUTS: | 2 to 3 seconds. |
VIDEO LATENCY: | Less than 2 frames. |
INPUT RESOLUTIONS: | PC1, PC2: 640×480 (60/72/75/85Hz), 800×600 (56/60/72/75/85Hz), 1024×768 (60/70/75/85Hz), 1280×1024 (60/75/85Hz), 1280×720 60Hz, 1920×1080 60Hz, 1600×1200 60Hz, 1280×800 60Hz, 1440×900 60Hz, 1366×768 60Hz, 1400×1050 60Hz, 1600×900 RB 60Hz, 1680×1050 RB 60Hz, 1920×1200 RB 60Hz. HDMI 1−4: 480i/576i, 480P/576p, 720p (50/60Hz), 1080i (50/60Hz), 1080p (50/60Hz), 1080p (24/25/30Hz), 640×480 (60/72/75/85Hz), 800×600 (56/60/72/75/85Hz), 1024×768 (60/70/75/85Hz), 1280×1024 (60/75/85Hz), 1280×720 60Hz, 1920×1080 60Hz, 1280×960 60Hz, 1600×1200 60Hz, 1280×800 60Hz, 1440×900 60Hz, 1366×768 60Hz, 1400×1050 60Hz, 1600×900 RB 60Hz, 1680×1050 RB 60Hz, 1920×1200 RB 60Hz. |
OUTPUT RESOLUTIONS: | 640×480 60Hz, 800×600 60Hz, 1024×768 60Hz, 1280×800 60Hz, 1360×768 60Hz, 1440×900 60Hz, 1280×1024 60Hz, 1400×1050 60Hz, 1680×1050 60Hz, 1600×1200 60Hz, 1920×1200 RB 60Hz ,1280×720 60Hz, 1920×1080 60Hz, 720x480P 60Hz, 720x576p (50Hz), 1280x720p (50/60Hz), 1920x1080i, 50/60Hz), 1920x1080p (50/60Hz). |

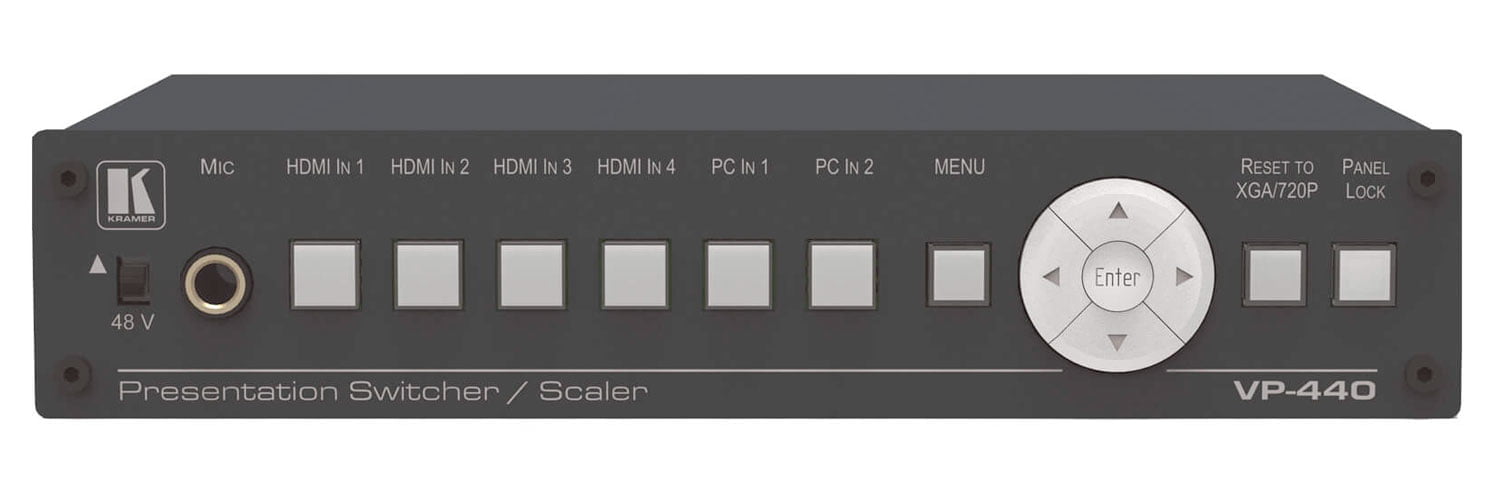

CONTROLS: | HDMI 1 to HDMI 4 and PC 1 to PC 2 input selector buttons; Input select contact closure; Menu and navigation buttons; Reset to XGA/720p and panel lock buttons; RS−232 (control and data); Ethernet (OSD and Web pages). |
POWER CONSUMPTION: | 5V DC, 3A. |
OPERATING TEMPERATURE: | 0° to 40°C (32° to 104°F). |
STORAGE TEMPERATURE: | −40° to 70°C (−40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL non−condensing. |
INCLUDED ACCESSORIES: | Power supply. |
OPTIONS: | RK−1 rack adapter. |
PRODUCT DIMENSIONS: | 21.46cm x 16.30cm x 4.36cm (8.45″ x 6.42″ x 1.72″ ) W, D, H |
PRODUCT WEIGHT: | 1.5kg (3.4lbs) approx. |
SHIPPING DIMENSIONS: | 35.10cm x 21.20cm x 7.20cm (13.82″ x 8.35″ x 2.83″ ) W, D, H |
SHIPPING WEIGHT: | 1.1kg (2.4lbs) approx. |
