The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
Extended bandwidth, extremely smooth frequency response.
150 W transformer for 70 V or 100 V lines, with 8 thru.
SonicGuard’ overload protection.

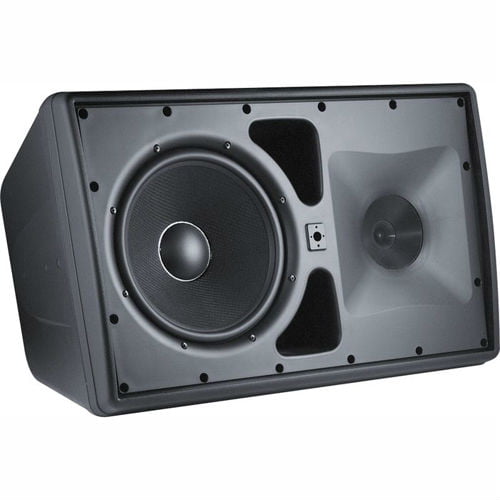

250 mm (10 in) fiberglass / Kevlar’ cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
Includes InvisiBall’ mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
Sealed input panel cover and screw-down input terminals.
Specifications Frequency Range : 38 Hz ¤ 17 kHz (-10 dB) Power Capacity : 500 W Continuous Program Power 250 W Continuous Pink Noise Transformer Taps : 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 nominal Frequency Response : 40 Hz ¤ 16 kHz ( ñ 3 dB) Maximum SPL @ 1m : Short-Term: 123 dB; Long-Term: 117 dB Nominal Sensitivity : 93 dB, 1W @ 1m (3.3 ft) Nominal Coverage Angle : 120˚ x110˚ V Directivity Factor (Q) : 5.2 dB, averaged 500 Hz to 10 kHz Directivity Index (DI) : 7.1 dB, averaged 500 Hz to 10 kHz Nominal Impedance : 4 ohms Crossover Network : 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry. Low Frequency : 250 mm (10 in) fiberglass/Kevlar’ cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet Mid Frequency : 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround Enclosure Material : High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold Grille : Thermoset composite coated steel, WeatherMax multi-layer foam Overload Protection : SonicGuard full range power limiting to protect network and transducers. Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open Safety Agency Rating : Transformer is listed per UL1876 Colors : Black or white (-WH)
Dimensions (H x W x D) : 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.) Shipping Weight (ea) : 218.9 kg (42 lb) Shipping Weight (ea) : 20.3 kg (45 lb)
Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.
Optional Accessories : MTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket
