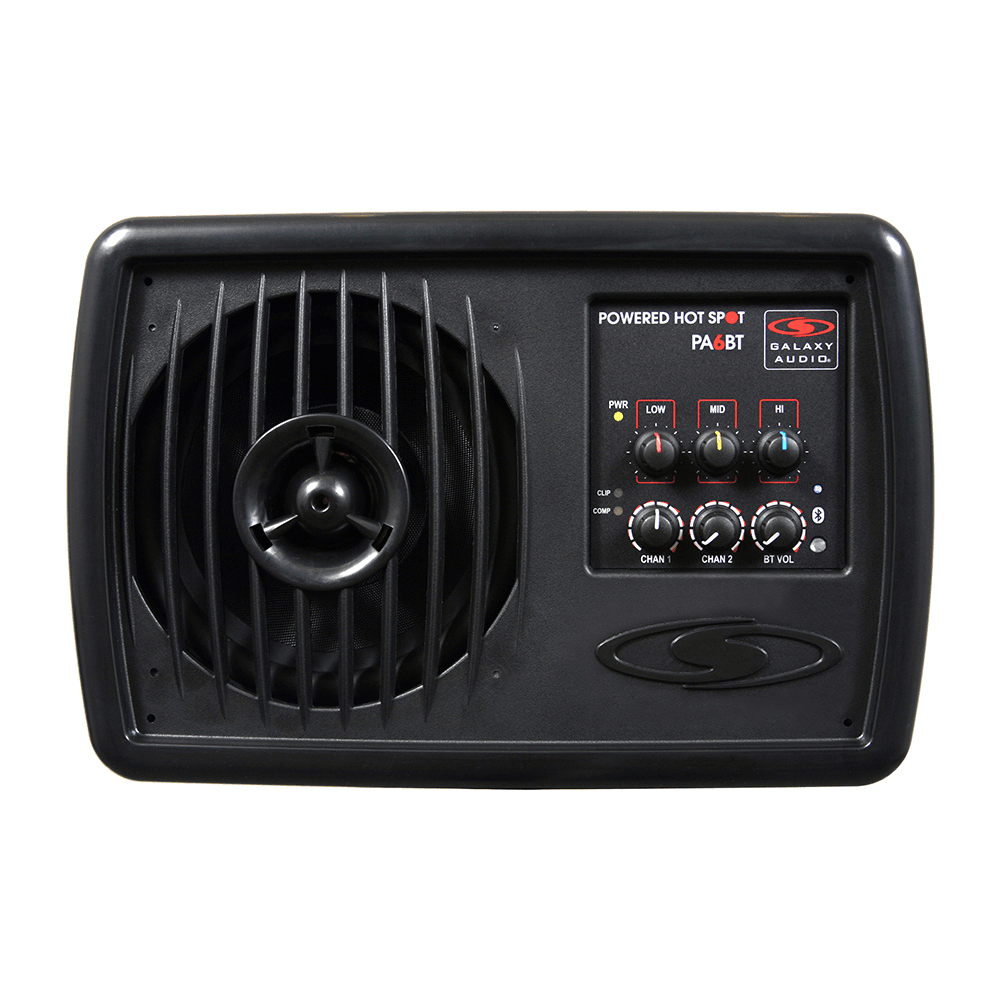

Back in the very early 70’s Galaxy Audio’s founders Brock Jabara and Jim Pearce pioneered the small PA/personal monitor category with the innovative product called the HOT SPOT. Through the years we’ve offered groundbreaking designs in both powered and unpowered models. The all new Galaxy Audio PA6BT is the newest powered model in the Hot Spot line. Succeeding the PA6S, the PA6BT has kept the popular design and look of the PA6S, but with the addition of Bluetooth® technology with its own volume control. The outer shell has kept the distinctive shape of the original Hot Spot, but with a 21st Century look. The cabinet now uses two specially designed speaker components, the new 155 watt NEOLITE 6.5″ Woofer and our highly efficient 1.5″ 60 watt Tweeter.
The PA6BT takes full advantage of recent improvements in speaker and amplifier technology, making it the lightest, most powerful, and best sounding compact PA system we’ve ever offered. Features such as the XLR pass-through on each channel allow independent control of mics without affecting the signal sent to the house PA. A –20dB Pad switch on each XLR input ensures that even the hottest signals will be accepted without overdriving the inputs. An additional 1/8″ Line input on Channel 2 will accept stereo or mono signals from sources such as tape or digital medial players as well as line level instruments.
The new two-way speaker system gives the PA6BT a much wider frequency response than earlier models. This means that full range music, such as keyboards or backing tracks, will come through with solid bass and crisp highs. This enhanced frequency response makes the PA6BT a great stand-alone PA system for small club gigs as well as lectures and A/V presentations. Plus a simple adjustment of the 3-band EQ can alter the response for singers who love the time-honored accentuated midrange of the classic Hot Spot vocal monitor. The PA6BT gives you the best of both worlds.
The PA6BT has a built in 170 watt amplifier designed to handle the most demanding audio situations. This high tech Class D amplifier produces plenty of power to cover a wide variety of applications. This design allows the PA6BT to function both as a stand-alone PA system and as a high-powered vocal monitor to cut through loud stage volumes. For larger gigs that require more coverage, you may simply patch from the Preamp Output to the main house PA, while using the PA6BT as your onstage monitor.
The PA6BT also features a built in 18dB Compressor/Limiter circuit with Compressor and Clip LEDs. The Compressor acts to smooth out transient peaks in the signals, thus improving overall sound quality and increasing apparent volume. The Limiter helps protect the woofer and tweeter from being damaged by amplifier distortion. The Clip LED indicates when a reduction in volume is recommended.
“After years of wishing for a small powered speaker for my small private gigs and rehearsals, my dreams have been answered a hundredfold. The Galaxy PA6S is simply the best small monitoring system that I have ever heard that is on the market today. I am able to play 6-7 note Full piano chords, organ and synth leads at sustained high levels without ANY distortion, yet maintaining a brilliant clarity that fills rooms much larger than I thought capable of. Nothing… I mean NOTHING, gets close! I am a Galaxy fan for Life!”
|Frequency Response||80Hz – 18kHz|
|Output/Peak||170 Watts @ 4 Ohms|
|Sensitivity||98dB, 1 W @ 1 m (1kHz octave band)|
|Speaker Compliment||1 SW6.5, 6.5″ NEOLITE Neodymium Woofer|
1 ST1.5 ferro fluid cooled 1.5″ NEOLITE
Neodymium Titanium Dome Tweeter
|Nominal Impedance||4 Ohms|
|Equalization||Three Band Center Detent|
Lo: ± 12dB @ 200Hz
Mid: ± 12dB @ 2kHz
Hi: ± 12dB @ 10kHz
|Input Connections||Two 1/4″ Balanced/Unbalanced|
Two XLR +28V Phantom Power
One 1/8″ Stereo Line In
|Output Connections||Two XLR Thru Outputs, One 1/4″ Preamp Output|
|Controls||CH1 & CH2 Level, High Frequency, Mid Frequency, Low Frequency, CH1 & CH2 20dB Pad, Bluetooth® Button, Bluetooth® Volume Control, Power Switch|
|Indicators||Power LED, Clip LED & Compressor LED|
|Protection||Short circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection|
|Power Requirements||Domestic: 120Vac~ 60Hz|
Export: 230Vac~ 50Hz
|Enclosure Materials||Fire Retardant Styrene, Integrated Handle|
|Mounting/Rigging||Built-in yoke bracket points, built-in mic stand insert|
|Accessories||MSA-1 Stand Adaptor, IEC Power Cable, Quick Start Guide|
|Dimensions||7.75″ x 11.75″ x 6.75″ (197 x 298 x 171 mm)(HxWxD)|
|Weight||6.4 lbs (2.9 kg)|
