Discontinued

2 x 900W @ 8 ohms
Class H amplifer
Compact & lightweight

EV
Tag: Category: SKU: AM/LOW/EV12

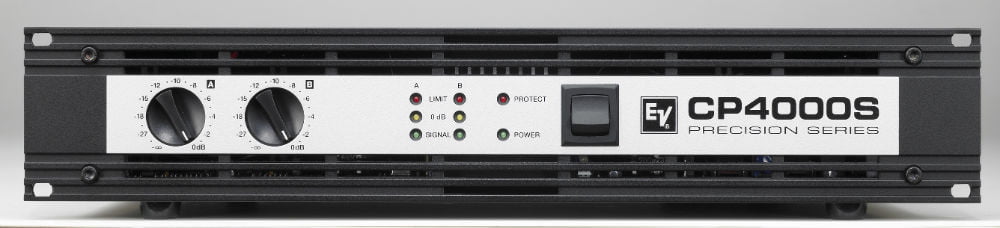

Electro-Voice’s new Precision Series Compact amplifiers offer proven Precision Series performance and reliability in a new compact, lightweight format made possible by a highly efficient Class-H design, which generates considerably less heat. The flagship of EV’s Precision Series Compact amplifiers is the CP4000S. With up to 2×2100 watts into two ohms, and 2×1500 watts into four ohms, and only 19.2 lbs (8.7 kg it is both the most powerful and lightweight model in the line.

Features
* Designed for Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, Stadium Systems, and other applications.
* Up to 2 x 1600 W into 2 ohms

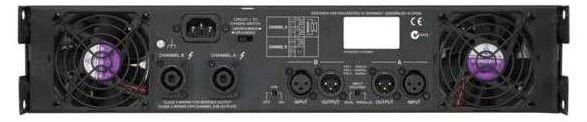

* XLR pass-though input connections
* The NL4 connection on output A also carries output B on pins /- 2 to allow easy connection to bi-amped loudspeakers
* Extremely lightweight and highly efficient
* Class-H design
* Switch mode power supply
* Three-stage front-to-rear fans
* Complete protection package
* Classic EV amplifier dynamic headroom for real-world music and applications
* Built-in dynamic limiters

Amplifier Gain 32 dB
Continuous Rated Power
(1 kHz, THD 1%) 2? 2100 Watts
Continuous Rated Power
(1 kHz, THD 1%) 4? 1500 Watts
Continuous Rated Power
(1 kHz, THD 1%) 8? 900 Watts
Continuous Rated Power
(20-20 kHz, THDContinuous Rated Power
(20-20 kHz, THDElectronics Type Amplifier
Input Impedance (Balanced) 20 kO
Input Sensitivity 7dBu
Intermodulation Distortion (SMPTE) 0.02 %
Maximum Bridged Output 4? 4500 Watts
Maximum Bridged Output 8? 3000 Watts
Network Control (IRIS-Net) No
Total Harmonic Distortion 0.05 %
Height 2RU 88.1 mm (3.47″)
Width 483 mm (19.02″)
Depth 368.8 mm (14.52″)
Weight Net 8.7 kg (19.18 lbs)

Brand

Electro-Voice

EV
