£389.00 Inc VAT

Media Player with Bluetooth Receiver and AM/FM Tuner

  • Ideal for front-of-house, education, music and rehearsal studios, houses of worship.
  • 1RU chassis with removable rack ears

Combining the best of disc, wireless, and solid-state media playback, the Denon Professional DN-300ZB is an all-in-one audio player you can count on when the whole room is listening. Ideal for front-of-house, education, music and rehearsal studios, houses of worship, restaurants and more, it has an answer to every request—all consolidated into a compact 1RU design. Extending Denon Professional’s dedication to powerful solutions that are easy-to-use, the DN-300Z plays the media of both today and tomorrow, in formats easily accessible to any user.

It really does expect the unexpected. Go ahead, throw anything you want at it: Front-loading media slots (CD, USB, SD/SDHC) deliver intuitive playback of today’s familiar mass-storage mediums. Or, go wireless with long-range Bluetooth audio connectivity (up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. With support for CD-DA, MP3, WAV, and AAC file formats, the DN-300ZB is the master-of-all-trades player that excels when the unpredictable occurs.

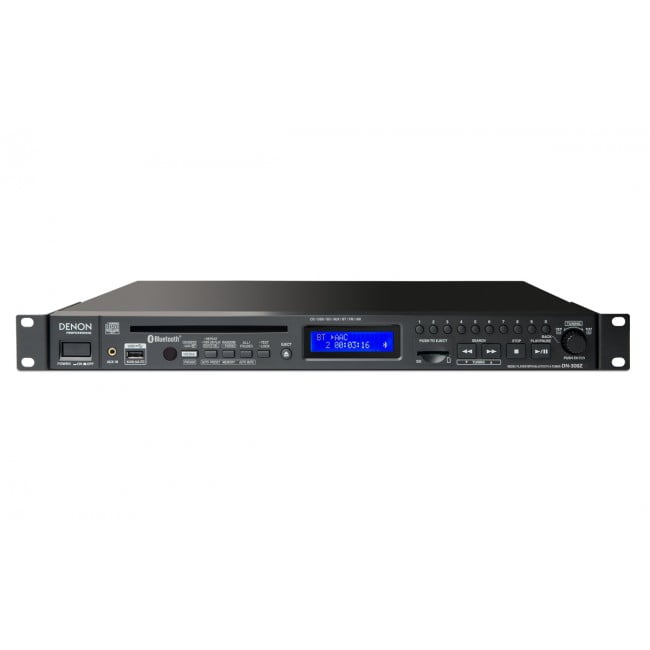

The front panel’s backlit LCD screen provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. Designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or “wall warts” required. When installed into a client’s rack, the DN-300ZB provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

The DN-300ZB media player expects the unexpected. But you demand it.

  • Super-fast loading, slot-in CD player
  • Supports removable USB thumb and HDDs, SD/SDHC cards
  • Wireless audio playback from tablets and smartphones via Bluetooth
  • Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
  • Up to 100 foot (33m) wireless Bluetooth range
  • Plays CD-DA, MP3, WAV, and AAC files
  • 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
  • AM/FM Tuner w/ dedicated audio out for multi-room use

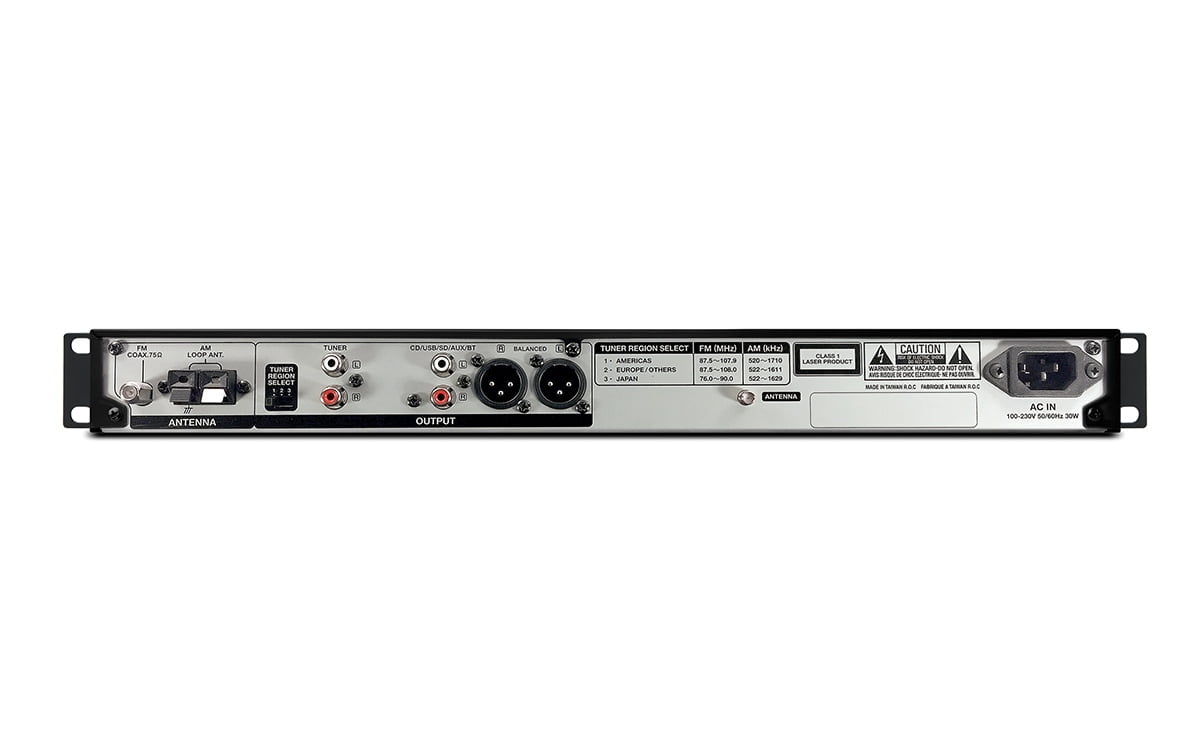

  • Unbalanced combi (RCA) audio output / balanced (XLR) audio outputs
  • 10-key direct track access
  • Random and repeat playback modes
  • Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
  • Folder only and All play modes
  • Lockable front-panel keeps program material from being interrupted
  • IR controllable with included, compact remote
  • 1RU chassis with removable rack ears
  • Detachable IEC-weighted AC inlet
  • 100-220v switching power supply

Playable formats, file systems
USB: FAT16 / FAT32

Supported WAV format
Extension: WAV
Bitrate: 16–bit
Samplig Frequency: 44.1 kHz

Supported AAC format
Extension: M4A
Compression method: AAC-LA
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Supported MP3 format
Extension: MP3
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Number of channels
2 (stereo), 1 (mono)

Audio frequency characteristics
10 Hz – 20 kHz (± 1.0dB)

S/N ratio
More than 95 dB (A-Weighted)

Total harmonic distortion
Less than 0.01%

Dynamic Range
More than 85 dB

Channel Separation
More than 80 dB

Version 3.0
Output Class 2
Range: Up to 100 feet (30m) with included antenna
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
Device memory: Recall up to 8 pairings instantly

Tuner (EU and Asia Pacific)
FM receiving range: 87.5 MHz – 108.0 MHz
AM receiving range: 520 kHz – 1611 kHz

Useable Sensitivity (FM): 30 dBuV/m

Useable Sensitivity (AM): 60 dBuV/m
Tuner channel separation: 20 dB (0 kHz)
Tuner S/N ratio (FM): 40 dB
Tuner S/N ratio (AM): 30 dB
THD N (1 kHz): 3.0%

Analog RCA terminals
Load impedance: Over 10 kohms
Output level: 2 Vrms at 10 kohms

Balanced XLR
Output Level: +8 dBu
Load impedance: > 10 kΩ

Aux in: TRS (3.5mm)
Input impedance: Over 10 kohms
Maximum input level: 1 Vrms
Maximum output level: 3 Vrms

Max storage capacity: Up to 2TB
Max file size: 2 GB
Max number of files per folder: 999
Max number of folders: 999
Max folder heirarchies: 8
Max file/folder name length: 255 characters

Power Supply

EU, UK, APAC: AC 230V, 50/60 Hz

Power consumption: 30W

Operating Environment
Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)
Operating humidity: 25-85%, no condensation

Sizes & Weight
Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm) with rack ears
Weight: 7.94 lbs. / 3.6 kg
