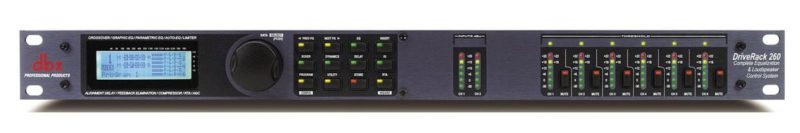

Complete Equalization & Loudspeaker Control System

There is a reason that Tour Sound Professionals and discriminating Audio Contractors choose dbx® DriveRack® products for their high-end tours and installs. The DriveRack products provide the tools that ensure that the system sounds its very best. With the introduction of the new 260, the heritage of unrivaled system/loudspeaker control continues.

The 260 capitalizes on the road tested and contractor approved nature of the other products in the DriveRack line. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression (AFS™).

The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface.

This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus® limiters (to provide protection against speaker blowouts) and alignment delay.

These features combined with the Wizard setup system and complete DriveWare™ GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

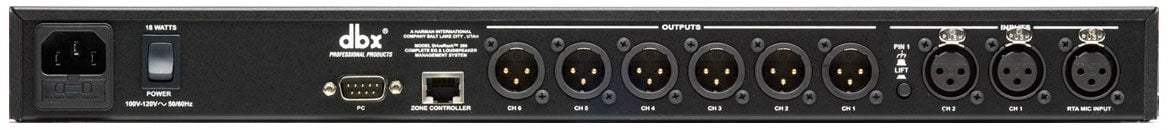

(2) Line inputs. (1) RTA Mic input
Connectors: (2) Female XLR line inputs. XLR RTA Mic input
Type:Electronically balanced/RF filtered
Impedance:>40k ohm
Maximum Input Level: 30dBu with input jumpers in 30 position
CMRR: >45 dB
RTA Mic Phantom Voltage: 15 VDC
RTA Mic ETN:Analog Outputs
Number of Outputs: 6
Connectors: Male XLR
Type:Electronically balanced, RF filtered
Impedance:120ohm
Max Output Level: 22dBu
A/D Performance
Type: dbx Type IV“ Conversion System
Dynamic Range line: >114 dB A-weighted, >112 dB unweighted
Type IV“ dynamic
range: >119 dB, A-weighted, 22kHz BW
>117 dB, A-weighted, 22kHz BW
Sample Rate: 48kHz
D/A Performance
Dynamic Range: 112 dB A-unweighted, 110 dB unweighted
System Performance
Dynamic Range: 110 dB unweighted, >107 dB weighted
THD Noise:0.002% typical at 4 dBu, 1 kHz, 0 dB input gain
Frequency Response: 20 Hz – 20 kHz, /-0.5 dB
Interchannel Crosstalk: >110 dB, 120 dB typical
Crosstalk input-output: >100 dB
