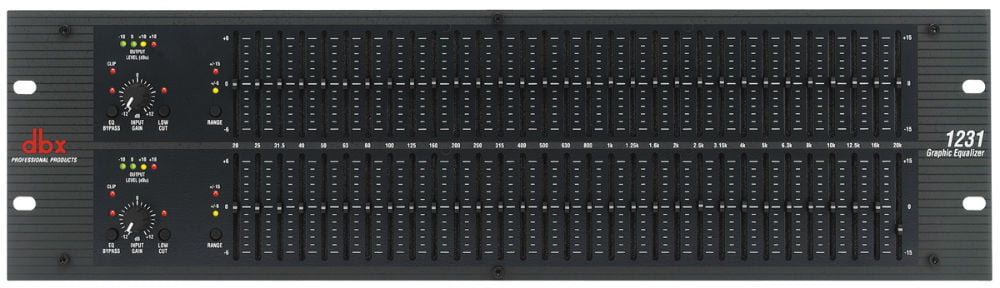

DBX 1231
DBX 1231
DBX

£329.00 Inc VAT

Dual Channel 31-Band Equalizer

  • Switchable boost/cut ranges of ±6 or ±15 dB
  • Electronically balanced/unbalanced inputs
  • Servo balanced/unbalanced outputs
  • RF filtered inputs and outputs
SKU: OB/EQ/DBX06FP Category: Graphic Equalisers
Share
0
  • Description
  • Specification
  • Brand
  • Reviews (0)

The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.

The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, /- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; selectable /-6dB or /-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4” TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.

The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps our engineers took to ensure compatibility for all installations.

Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref 4dBu), less than 0.005% THD Noise (1kHz at 4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 3U steel/aluminum chassis.

  • Dual Chanel 31-Band Equalizer
  • Switchable boost/cut ranges of ±6 or ±15 dB
  • Electronically balanced/unbalanced inputs
  • Servo balanced/unbalanced outputs
  • RF filtered inputs and outputs
  • XLR, Barrier Strip, and 1/4″ TRS connectors
  • -12dB/ 12dB input gain range
  • 18dB/octave 40Hz Bessel low-cut filter
  • Chassis/signal ground lift capability
  • Internal power supply transformer
  • Power-off hardwire relay bypass with 2-second power-up delay

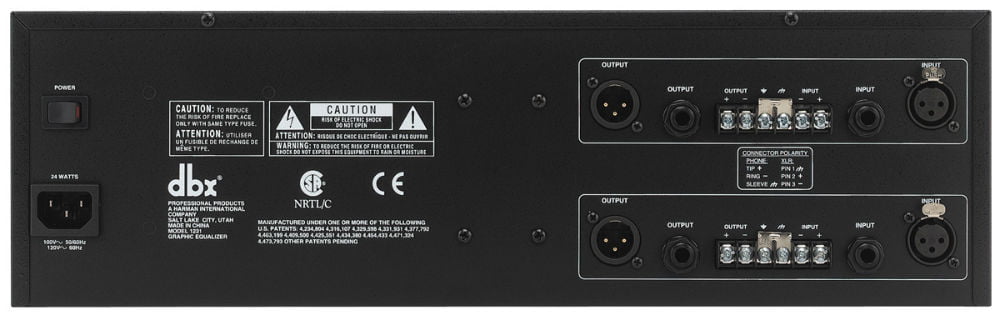

Input Connectors 1/4″ TRS, female XLR (pin 2 hot), and barrier terminal strip
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm
Max Input > 21dBu balanced or unbalanced
CMRR >40dB, typically >55dB at 1kHz
Output Connectors 1/4″ TRS, male XLR (pin 2 hot), and barrier terminal strip
Output Type Impedance-balanced/unbalanced, RF filtered
Output Impedance Balanced 200 ohm, unbalanced 100 ohm
Max Output > 21dBu balanced/unbalanced into 2 kOhm or greater; > 18dBm balanced/unbalanced (into 600 ohm)
Bandwidth 20Hz to 20kHz, 0.5/-1dB
Frequency Response <10Hz to >50kHz, 0.5/-3dB; /-15dB range; /-6dB range
Dynamic Range 109dB; 115dB
Signal to Noise Ratio 90dB, 97dB
THD Noise <0.005%
Interchannel Crosstalk <-80db, 20Hz to 20kHz
Bypass Switch Bypasses the graphic equalizer section in the signal path
Low cut Switch (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
Range Switch (recessed) Selects either /- 6dB or /- 15dB slider boost/cut range
I/O Meter 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, 10, and 18dBu
Indicators EQ Bypass (Red); Clip (Red); Low Cut (Red); /-6dB (Yellow); /-15dB (Red)
Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Power Consumption 24W
Power Connector IEC receptacle
Dimensions 5.25″ H X 19″ W X 7.9″ D (13.4cm x 48.3cm x 20.1cm)
Unit Weight 10.6 lbs.
Shipping Weight 11.6 lbs.
