Dual Compressor / Limiter / Gate
- Selectable auto or manual compression
- Contour switch removes unwanted low frequency information from detector circuit
- PeakStopPlus™ limiting for setting maximum allowable level with minimal distortion
- True differentially balanced gold-plated XLR and 1/4″ inputs and outputs
- True RMS level detection
After producing the world’s most renown series of compressors, the task of producing a new compressor worthy of our reputation would be daunting for most engineers. Not for dbx®. Our engineers know audio like no one else in the world. Now the fruits of their talents are available to you in the form of the 1066 Stereo Compressor/Limiter/Gate.
Want to instantly add that classic dbx response to your mix? It’s there at the touch of the “Auto” button. Or use the independent Attack and Release controls to tailor the 1066 to your specific needs. Unwanted frequencies or mic bleed in the signal path? Frequency dependent gain control is a snap to set up and execute with our Side Chain External button (SC Ext). Use the Side Chain Monitor button (SC Mon) and your favorite EQ to dial in the specific frequencies you want to trigger the device. As has become our standard, the contour switch allows entire mixes to be easily smoothed with soft compression while keeping low frequencies from punching holes in the overall mix. Selectable input and output metering allow you to make sure that everything is matched up level-wise, maximizing your signal-to-noise ratio.
For overall speaker protection, our new PeakStopPlus™ does all previous circuits one better. With a new design, the PeakStopPlus represses those unwanted transients from blowing your drivers while minimizing the distortion common to many other “hard” limiters. Selectable Hard-Knee or OverEasy® characteristics make the 1066 ideal for your gain control needs, whether you’re looking for “heavy” almost-special-effects compression or soft, smooth gain leveling. New lightpipe technology replaces standard LED’s found on most other units, making the 1066 both very easy to read and much easier to operate.
In the studio, broadcast facility or on the road with a P.A. system, the 1066 is designed for perfectly simple operation. The 1066 allows you to eliminate unwanted signals, flexibly control overall signal gain and guard your overall mix in dual mono or stereo operation.
At the heart of the 1066 is our new dbx V2 VCA. Developed especially for the 1066, 1046 and other 10 series products to come, this revolutionary VCA boasts superb dynamic range characteristics while maintaining very low distortion and almost immeasurable noise characteristics. The bottom line is this: a new VCA working in conjunction with world class design makes the dbx 1066 perform better than compressors selling for hundreds more.
State-of-the-technology VCA’s, meticulous component selection, and scrupulous testing procedures are just a few more reasons that the new dbx 1066 is the latest in a long line of pedigreed dbx signal processors.
- Selectable auto (classic dbx®) or manual (variable Attack and Release) compression
- Contour switch removes unwanted low frequency information from detector circuit
- Selectable Overeasy® or Hard Knee compression modes
- PeakStopPlus™ limiting for setting maximum allowable level with minimal distortion
- SC Ext and SC Mon for setting up and monitoring external devices for gating function
- True differentially balanced gold-plated XLR and 1/4″ inputs and outputs
- True RMS level detection
- Precision metering of input level, output level, and gain reduction
- True stereo or dual mono operation
- Switchable 4dBu or -10dBV operation per channel

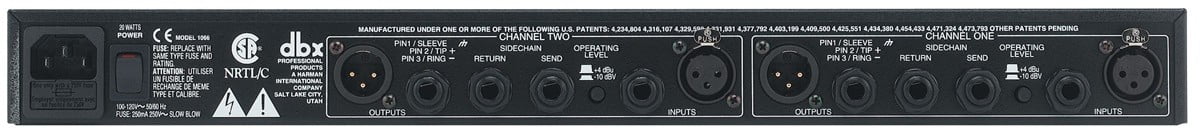

Input Connectors XLR and 1/4″ TRS (Pin 2 and tip hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced > 50 kOhm, unbalanced >25 kOhm
Max Input > 24 dBu balanced or unbalanced
CMRR Typically >50 dB at 1 kHz
Output Connectors XLR and 1/4″ TRS (Pin 2 and tip hot)
Output Type Servo-balanced/unbalanced, RF filtered
Output Impedance Balanced 120 Ohm, unbalanced 60 Ohm
Max Output > 21 dBm balanced, > 20 dBm unbalanced
Sidechain Input Connector 1/4″ Unbalanced (Tip-Sleeve)
Sidechain Input Type Unbalanced, RF filtered
Sidechain Impedance >10 kOhm
Sidechain Max Input Level > 24 dBu
Sidechain Output Connector 1/4″ Balanced TRS (tip hot)
Sidechain Output Type Impedance balanced, RF filtered
Sidechain Output Impedance Balanced 2 kOhm, unbalanced 1 kOhm
Sidechain Max Output Level > 21 dBu balanced or unbalanced
Bandwidth 20 Hz to 20 kHz, 0/0.5 dB
Frequency Response 0.35 Hz to 90 kHz, 0/-3 dB
Noise < -95 dBu, unweighted, 22 kHz measurement bandwidth
Dynamic Range > 118dB, unweighted
THD Noise 0.008% typical at 4 dBu (1 kHz unity gain), 0.08% typical at 20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz
IMD < 0.1% SMPTE
Interchannel Crosstalk < -80 dB 20Hz to 20 kHz
Stereo Coupling True RMS Power Summing
Compressor Threshold Range -40 dBu to 20 dBu
Compressor Ratio 1:1 to infinity:1
Compressor Threshold Characteristic Selectable OverEasy® or hard knee
Compressor Attack/Release Characteristic AutoDynamic™
Compressor Attack/Release Modes Selectable Manual or Auto
Compressor Manual Attack Time Scalable program-dependent
Compressor Manual Release Time Scalable program-dependent
Compressor Auto Attack Time Program-dependent
Compressor Auto Release Time Program-dependent
Compressor Output Gain -20 to 20 dB
Limiter Threshold Range 4 dBu to 24 dBu (off)
Limiter Ratio infinity:1
Limiter Type PeakStopPlus® two-stage limiter
Limiter Stage 1 PeakStop® brickwall limiter
Limiter Stage 1 Attack Time Zero
Limiter Stage 1 Release Time Zero
Limiter Stage 2 Predictive intelligent program limiter
Limiter Stage 2 Attack Time Program-dependent
Limiter Stage 2 Release Time Program-dependent
Expander/Gate Threshold Range Off to 15dBu
Expander/Gate Ratio 1:1 to 30:1
Expander/Gate Attack Time < 100 µsec
Expander/Gate Release Time Program-dependent
SC Ext. Switch Routes the external sidechain input signal to the detector
SC Mon. Switch Routes the sidechain signal to the output, interrupting the normal audio
OverEasy® Switch Activates the OverEasy compression function
Countour Switch Activates the frequency-dependent detector function
Auto Switch Activates automatic program-dependent attack and release times, disabling the manual Attack and Release controls
I/O Meter Switch Switches between monitoring input and output levels on the Input/Output Level meter
Bypass Switch Activates the direct input-to-output hard-wire relay bypass. Relay automatically hard-wire bypasses unit at power-down and provides a power-on delay of 1.5 sec.
Operating Level Switch (rear panel) Switches the nominal operating level between -10 dBV and 4 dBu simultaneoulsy for both input and output levels
ST Link Switch Link both channels for stereo operation. Channel One becomes the master
Gain Reduction Meter 12-segment LED bar graph at 1, 2, 4, 6, 9, 12, 15, 18, 21, 24, 27 and 30 dB
I/O Meter 8-segment LED bar graph at -24, -18, -12, -6, 0, 6, 12, and 18 dBu
Compressor Threshold Meter 3-segment LED bar graph at Below (-), OverEasy and Above ( )
Expander/Gate Threshold Meter 2-segment LED bar graph at Below (-) and Above ( )
Limiter Threshold Meter 1 LED to indicate PeakStopPlus™ limiting
Function Switches LED indicator for each front-panel switch
Output Transformer Options Jensen® JT-123-dbx or JT-11-dbx, BCI RE-123-dbx or RE-11-dbx
Operating Voltage 100-120 VAC 50/60 Hz 200-240 VAC 50/60 Hz
Power Consumption 20 Watts
Fuse 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
Power Connector IEC receptacle
Dimensions 1.75″Hx19″Wx9″D (4.4cmx48.3cmx20.1cm)
Unit Weight 5.1 lbs. (2.3 kg)
Shipping Weight 7.5 lbs. (3.4 kg)
