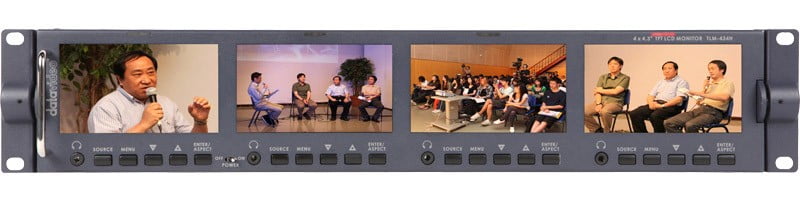

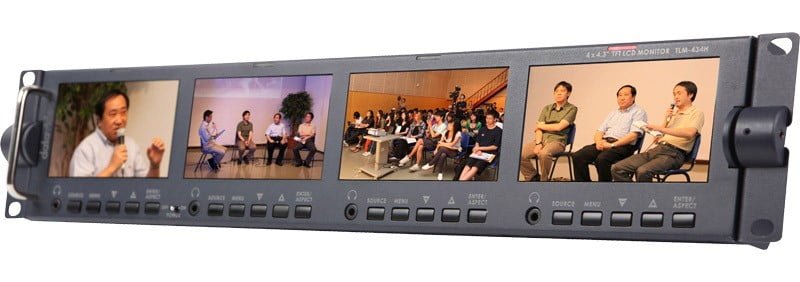

Built within a robust steel and aluminium 19-inch rack mountable design, this bank of both HD & SD 4.3-inch (16:9 and 4:3) high quality TFT LCD monitors are perfect for integration.

Each monitor has individual adjustments for contrast, brightness and colour saturation as well a LED tally light indication.

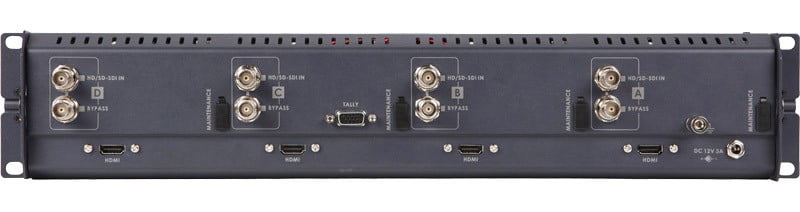

Connection includes HD-SDI, SD-SDI and HDMI Inputs. Embedded audio is supported on both SDI & HDMI, with superimposed on-screen audio and time code indicator.

All four of the SDI inputs include a seamless bypass, ensuring the monitor is an ideal companion for switches. They are also perfect for integration within system racks, OB Van, studios or many more applications.

Features:

Image Control Individual adjustments for contrast, brightness and colour saturation
19″ Rackmountable 19-inch robust steel and aluminium design. Tilt up to 90 degrees perfect integration
Video Inputs HD-SDI / SD-SDI & HDMI input. Each SDI inputs with seamless bypass
Resolution RGB 480 x 272 pixel, 16:9 & 4:3 PAL/NTSC auto recognition
Time Code Indicator
Audio Peak Meter
Blue Only Function
Colour Temperature Adjustment
Tally Indication Standard 15-pin tally connector for easy integration with existing equipment

Accessories Included:

• TLM-434H
• AC Power Cord
• 1.5 mm Hex Wrench
• 2.5 mm Hex Wrench
• Switching Adaptor DC 12V / 2A
• TLM-434H Instruction Manual
