XGA 3LCD 6,000 lumen digital projector

  • 6,000 ANSI lumens,
  • XGA native resolution
  • Intuitive LCD menu
  • Suite of optional lenses
  • Long life, 330W UHP lamp
  • Hybrid filter operates for up to 20,000 hours
  • Built-in security features
  • Optional wireless module
Tag: Category: SKU: PR/LCD/CHR103

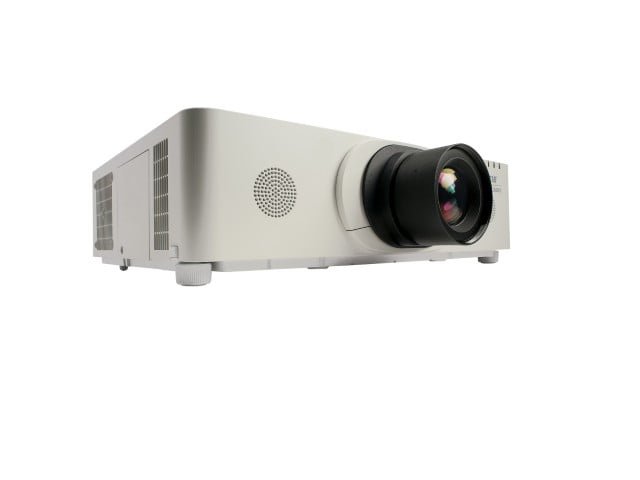

The Christie LX601i provides professional-quality presentations at an affordable price. This feature-rich, XGA resolution projector offers 6000 ANSI lumens at 3000:1 contrast ratio for bold, detailed images. The optional lens suite includes a selection of zoom lenses with repeatable position recall capabilities that make the Christie LX601i ideal for small-to-medium sized applications and multiple screens.

The Christie LX601i has an intuitive LCD menu for easy setup and maintainance. With the projector’s USB port, presenters can use wireless devices to present their data.. The Christie LX601i also has an instant texting messenger function that displays messages as an overlay on the screen. This is ideal to communicate in real-time to projectors on the network.

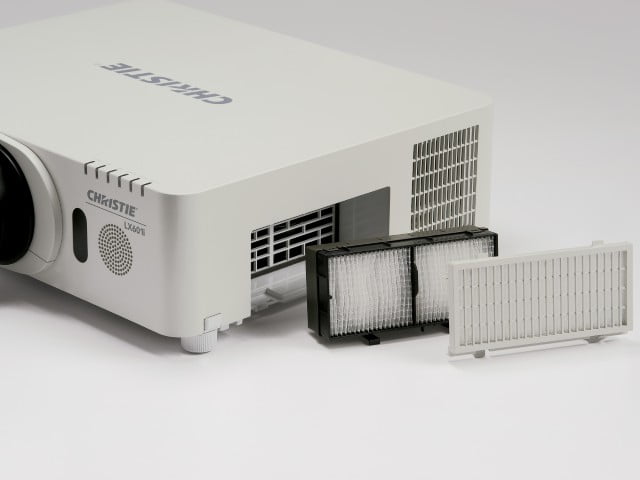

This projector is low maintenance, with features such as long-lasting lamps, a filter with up to 20,000 hours of maintenance-free operation, and 0.3W standby operation, all resulting in a low total cost of ownership.

Technology 3LCD
Resolution 1024 x 768 XGA
Brightness 6,000 lumens
Contrast 3000:1
Illumination 330W UHP lamp
Lamp life 2,500 hours, up to 3,000 in eco mode
Length 18.7″ (476mm)
Width 19.6″ (498mm)
Height 5.8″ (147mm)
Weight 19.6lbs (8.9kg)

The Christie LX601i is equipped with AMX Device Discovery and Crestron’s RoomView™ for easy integration with third-party control systems. AMX Device Discovery:

Improves the way AV installations are programmed, managed and operated,
Makes programming easy, and
Makes operation with an AMX control system effortless.
Crestron RoomView software provides a custom-configurable interface for remotely monitoring, managing and controlling every device in every room from any computer. RoomView automates and streamlines several management and technical support functions so you can work more efficiently.

The Christie LX601i, equipped with all the features you need, makes giving professional presentations in your workplace easy and affordable.

  • Brightness: 6,000 ANSI lumens
  • Contrast: Up to 3000:1
Display technology and resolution
  • 3 x 0.79″ inorganic LCD
  • 1024 x 768 native XGA

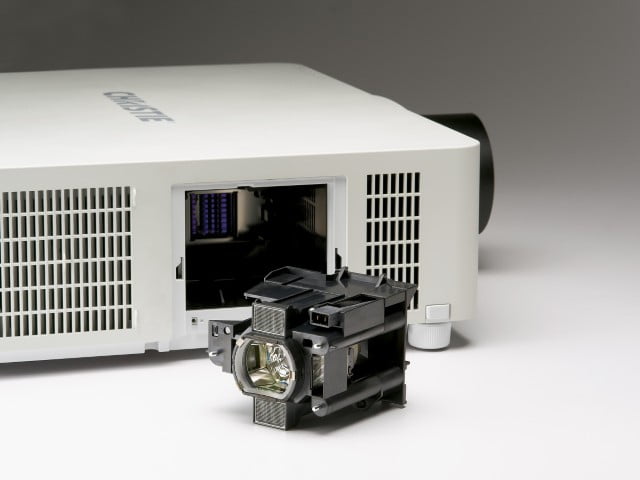

  • 330W UHP lamp
  • Standard mode: 2,500 hours; eco mode: 3,000 hours
Input signal compatibility
  • UXGA/SXGA /SXGA/WXGA/XGA/WXGA/SVGA/ VGA, MAC16″, NTCS, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, 480I, 480P, 576I, 720P, 1080i 1080p
Scan rates
  • Horizontal: 15-106kHz
  • Vertical: 56-120Hz
Pixel clock
  • 162 MHz (digital and analog)

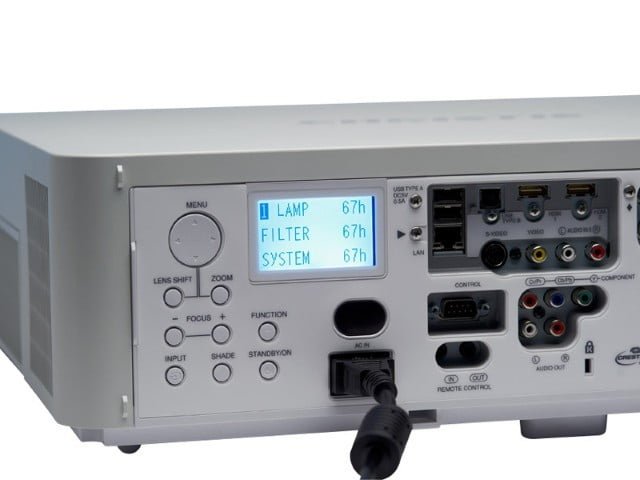

Inputs, control and networking
  • Input 1: D-Sub 15 x 1 (Component support)
  • Input 2: 5-BNC (R, G, B, H, V & Y, Pb/Cb, Pr/Cr & Composite)
  • Digital inputs: HDMI x 2, S-video DIN 4-pin x 1, Composite video RCA x 1
  • Component video RCA x 3, USB input type A x 2 for optional wireless network), USB type B x 1 (for USB display or mouse control), Audio In – Mini jack x 2 (3.5 mm stereo), RCA jack (L,R) x 1
  • Output RCA (L & R) x 1, Network (LAN) RJ-45 x 1 (wired LAN), Control terminals 9-pin D-sub x 1 for RS-232C (serial)
  • Control 9-pin D-sub x 1 for RS-232C (serial)
Optical system
  • Motorised zoom, focus and lens shift
  • Mechanical light shutter
Fixed lens
  • 0.8:1
Zoom lenses
  • Short zoom 1.2-1.8:1
  • Medium zoom 1.5-3.0:1*
  • Long zoom 2.8-4.9:1
  • Ultra long zoom 4.9-8.3:1

*Lens ships standard

Digital keystone
  • Horizontal: ± 20 degrees
  • Vertical: ± 12 degrees
  • 8-point geometry correction
Standard accessories
  • Power cord (US cord, 1.8m) x 1
  • (UK cord, 1.8m) x 1
  • (Euro code, 1.8m) x 1
  • Computer cable (2m) x 1
  • HDMI-DVI cable (0.4m) x 1
  • Wireless remote control x 1 & “AA” Batteries x 2
  • Security label x 1
  • Lens cover x 1
  • Adapter cover x 1
  • Cable holder x 1
  • Network and wireless software (in a CD-ROM)
  • User’s manual CD
Optional accessories
  • Wireless adapter
  • Hybrid filter
  • 330W UHP lamp
Enhanced feature sets
  • Crestron RoomView™
  • AMX Device Discovery
  • 360-degree on axis rotation
  • Picture-by-picture
  • Dual-stack control
  • Digital keystone feature
  • Hybrid filter up to 20,000 hours maintenance-free
  • Customizable start-up logo
  • Selectable aspect ratio 16:9 and true mode
  • Intuitive graphical user interface
  • Graphical on-screen lens range
  • LCD menu for easy set up and maintainence
  • Front and rear infrared sensors for IR keypad
  • Supports simple curved screens
  • Stackable1design for redundancy or added brightness
  • Built-in security features and menu settings
  • Repeatable lens recall capabilities2
  • 16W stereo speakers

1In a stacked setup, this projector is best suited for events or temporary use. The projector may need to be re-aligned if it is used in a fixed-installation application.

2Not available on fixed lenses and does not include zoom or focus capabilities.

Power requirements
  • Operating voltage: AC100 -120V, 50/60Hz • AC220 -240V, 50/60Hz
  • Operating current: 4.9A max at 100V AC • 2.4A max at 220V AC
  • Consumption: • 480W  AC100 -120V • 455W  AC220 -240V
  • Dissipation: 1683 BTU/hr @ 100-120V • 1553 BTU/hr @ 220-240V
Dimensions (LxWxH)
  • Body: (LxWxH): 18.7 x 19.6 x 5.8″ (476 x 498 x 147mm) (with standard lens)
  • Shipping size: (LxWxH): 26.9 x 21.7 x 9.0″ (683 x 552 x 229mm)
  • Weight: 19.6 lbs (8.9kg) (with standard lens)
  • Shipping weight: 28.0 lbs (12.7kg)
Operating environment
  • Noise: Standard mode: 35 dBA / 29 dB Eco mode
  • Temperature: 32-104°F (0-40°C)
  • Humidity: 10-85% non-condensing



With an established, respected and trusted history supplying and supporting various high-end applications with performance-driven display technologies, advanced processing, warping, media playback and network-distributed solutions for a variety of proAV applications. DM supply a range of Installed Christie Projectors - Please contact us directly for more information and a quotation.
