3 LCD projector
Widescreen (16:9)
Resolution 1920 x 1200 WUXGA
5,000 ANSI Lumens
Contrast 2000:1
Professional installation unit

Tag: Categories: , SKU: PR/LCD/CHR07

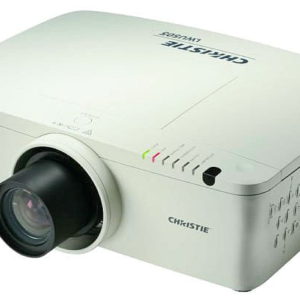

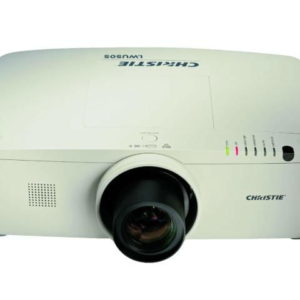

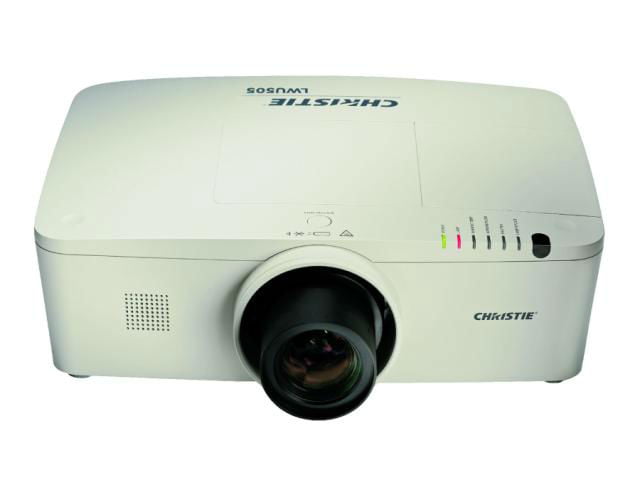

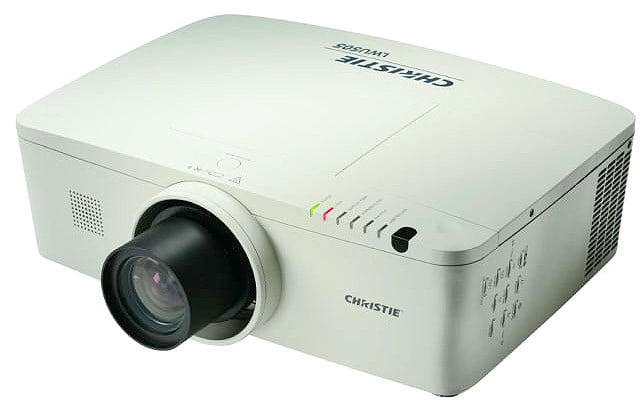

The Christie LWU505 digital projector offers native WUXGA resolution (1920 x 1200) making it an ideal choice for small to mid-sized applications ¤ corporate AV, higher education, houses of worship ¤any organization requiring a high definition widescreen projector in the 5000 ANSI lumen range.

Technology 3LCD
Resolution 1920 x 1200 WUXGA
Brightness 5,000 ANSI Lumens
Contrast 2000:1
Illumination 330W NSHA lamp
Lamp Life 2,000 hours, up to 3,000 in eco mode
Length 22.9″ (581 mm)

5000 ANSI lumens brightness suitable for small to medium size applications
Native WUXGA resolution (1920×1200)
2000:1 contrast ratio for exceptional image clarity
Same optional lens suite as Christie LX505, Christie LX605 and Christie LW555
Highest level of data resolution without compromising full HD video content
Mechanical shutter (light dowser)
Ships with standard lens: 1.70-2.89:1 Zoom Lens

Set up and image adjustment is a breeze, even in the most challenging room environments™ built-in 3D Keystone“ technology ensures quick and easy image alignment. The Christie LWU505 is also equipped with motorized lens shift for zoom and focus, with a center mount lens design and easy one-button lens release capability.

The Christie LWU505 uses the same suite of optional lenses compatible with the Christie LX505, Christie LX605 and the Christie LW555 which enables easy integration with these other projectors, and ensures a lower cost of ownership.

This quiet, compact projector, available in an off-white color to complement its surroundings, is also backed by Christie’s industry-leading warranties, service and support.

5000 ANSI lumens
2000:1 contrast ratio
>80% brightness uniformity

3 x 0.76ΠInorganic LCD panels
Native WUXGA (1920 x 1200) resolution

Normal mode 2000 hours, eco mode 3000 hours

Signal Compatibility
VGA through WUXGA (1920 x 1200)

Video Signal
Accepts current HDTV/DTV formats (720p, 1035i, 1080i, 1080p)

Pixel Clock
162MHz ~ 162MHz

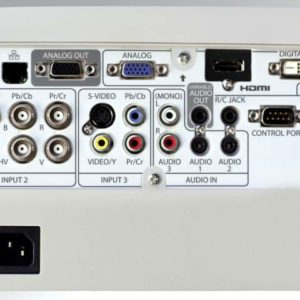

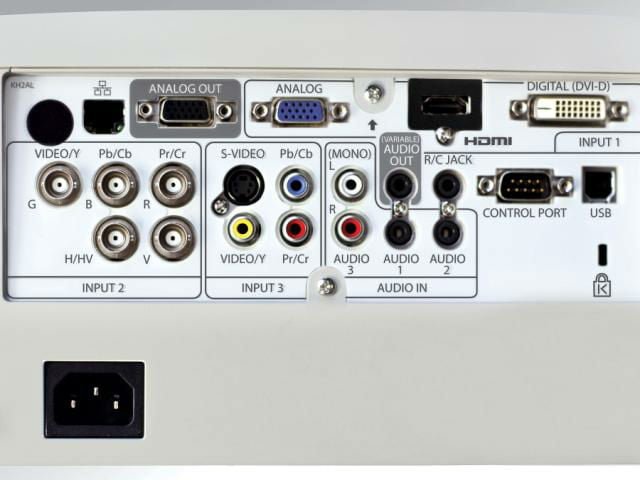

Inputs, Control and Networking
DVI-D x 1 (HDCP Compliant)
HDMI x 1
D-Sub 15 x 1
BNC x 5 (R,G,B,H,V & Y, Pb/Cb, Pr/Cr & Composite)
Mini DIN 4-pin (S-video)
RCA x3 (Video/Y,Pb/Cb,Pr/Cr)
Audio input Mini jack x 2(1,2)(stereo)
RCA x2(R,L-mono)
Control port Dsub-9 x 1
R/C Jack ¤ Mini jack x 1 (wired remote)
RJ45 LAN x 1

Optical System
Motorized zoom, focus and lens shift
Vertical and Horizontal lens shift
Ships with standard lens 1.7-2.89:1

Standard Accessories
Quick set-up manual
PIN code label registration card
UL cable card
Lens adaptor
Power cord-AC cord UL type (NEMA 6-20P plug type)
AC cord (European 2P plug type
Computer cable (Dsub15)
Remote control
Lens mount cover
Lens anti-theft screw
USB cable

Optional Accessories
CCM-LX for enhanced network options
AutoFilter cartridge
Replacement 330W NSHA lamp
1.25-1.70:1 Zoom Lens
1.70-2.89:1 Zoom Lens
2.89-4.60:1 Long Lens
4.60-7.36:1 Zoom Lens
Lens 0.8:1

Ships with standard lens: 1.70-2.89:1 Zoom Lens
1.25-1.70:1 Zoom Lens
2.89-4.60:1 Long Lens
4.60-7.36:1 Zoom Lens
Lens 0.8:1

Enhanced Feature Sets
10-bit image processing
Top-loading lamp
1-button quick lens release
3D Keystone“ technology (advanced four corner geometry correction)
Suite of optional lenses
Easy menu navigation
Up to 13,000 hour AutoFilter
360 degree on axis rotation
Built in networking -RJ45
Expansion port for advanced networking module (CCM-LX)
Customized logo capture

Power Requirements
Operating voltage: 100-120 VAC ñ10%/200-240 VAC ñ10%
Operating current: 5.2A max @ 100-120 VAC 50/60Hz; 2.5A max @ 200-240 VAC 50/60Hz
Operating power: 488W max
Dissipation: 1,771 BTU/hr
Dissipation: 1,665 BTU/hr

Body size with lens (LxWxH): 17.12 x 19.27 x 6.50″ (434.8 x 489.5 x 164.0mm)
Weight: 21.6lbs (9.8kg) with lens
Shipping weight: 35.1lbs (15.9kg)
Shipping size (LxWxH): 22.90 x 26.81 x 12.52″ (581 x 681 x 318mm)

35dBA standard mode
29dBA eco mode

Operating Environment
Operating temperature: 41-104?F (5-40?C)
Humidity (non-condensing): 20-80%
Altitude: 0-8858ft/0-2700m

Regulatory Approvals
This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC):
UL 60950-1 first edition
CAN/CSA-C22.2 No 60950-1-03 first edition

Limited Warranty Projector: 3 years parts and labor
Lamp: 500 hrs or 120 days (whichever comes first) or Contact an authorized Christie representative for full details of our limited warranty
Width 26.81″ (681 mm)
Height 12.52″ (318 mm)
Weight 21.6 lbs (9.8 kg)



With an established, respected and trusted history supplying and supporting various high-end applications with performance-driven display technologies, advanced processing, warping, media playback and network-distributed solutions for a variety of proAV applications. DM supply a range of Installed Christie Projectors - Please contact us directly for more information and a quotation.
