Christie LWU501i

Christie LWU501i
Christie LWU501i
Christie LWU501i
Christie LWU501i
Christie LWU501i
Christie LWU501i
Discontinued

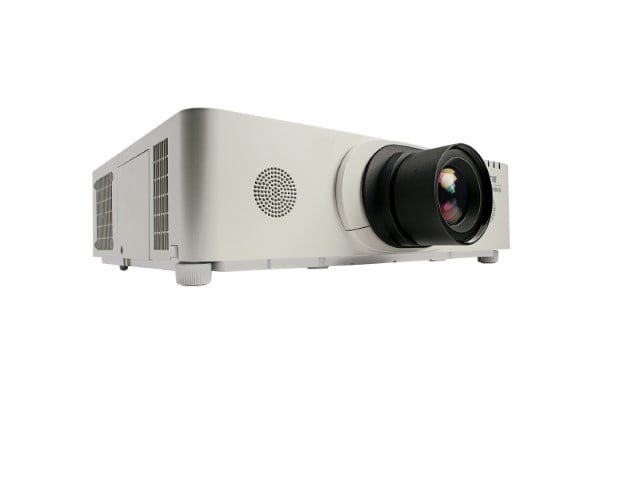

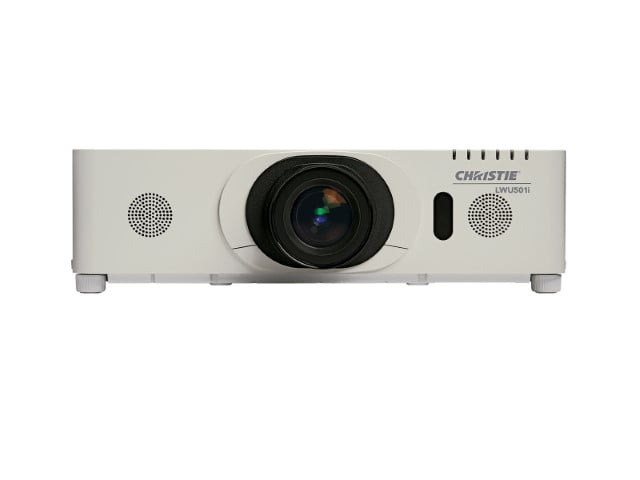

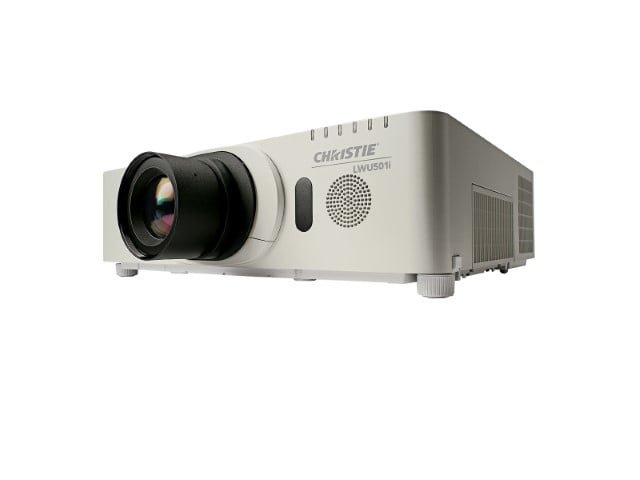

The flexible Christie LWU501i 3LCD projector produces high-quality images and is easy to use.

  • 5,000 ANSI lumens
  • WUXGA (1920×1200) native resolution
  • Intuitive LCD menu for easy set up and maintenance
  • Suite of optional lenses with repeatable position recall capabilities

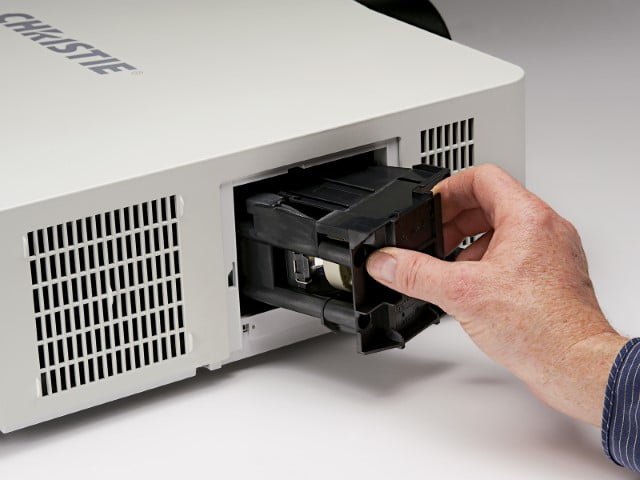

  • Long life, 330W UHP lamp (standard mode: 2500 hours; eco mode: 3000 hours)
Christie
Tag: Category: SKU: PR/LCD/CHR107

The Christie LWU501i produces professional-quality presentations at an affordable price. This feature-rich, WUXGA (1920×1200) resolution 3LCD projector has 5,000 ANSI lumens at 3000:1 contrast ratio for bold, detailed images. The optional lens suite includes a selection of zoom lenses with repeatable position recall that make the Christie LWU501i ideal for small- to medium-sized applications and wide screens.

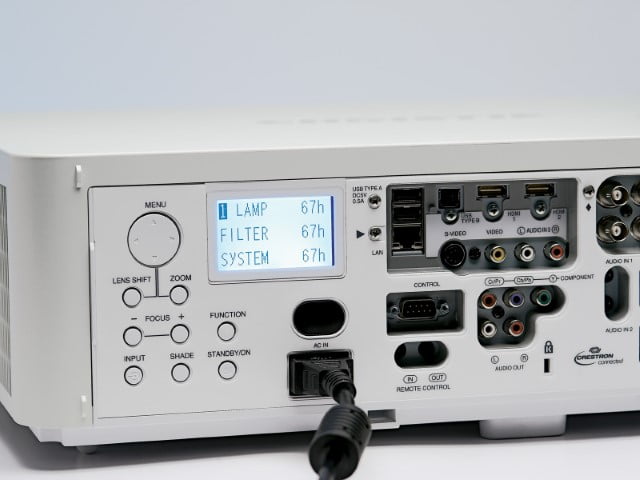

The Christie LWU501i has an intuitive LCD menu for easy set up and maintenance. With the projector’s USB port, presenters can use wireless devices to present their data. The Christie LWU501i also has a text message function that is ideal for displaying emergency or evacuation messages as an overlay on the screen.

This 3LCD projector is low maintenance, with features such as long-lasting lamps, a filter with up to 20,000 hours of maintenance-free operation, and (<0.35W) standby operation, all resulting in a low total cost of ownership.

Technology 3LCD
Resolution 1920 x 1200 WUXGA
Brightness 5,000 ANSI lumens
Contrast 3000:1
Illumination 330W UHP lamp
Lamp life 2,500 hours, up to 3,000 in eco mode
Length 18.7″ (476mm)
Width 19.6″ (498mm)
Height 5.8″ (147mm)
Weight 19.6lbs (8.9kg)



Features

  • 5,000 ANSI lumens
  • WUXGA (1920×1200) native resolution
  • Intuitive LCD menu for easy set up and maintenance
  • Suite of optional lenses with repeatable position recall capabilities
  • Long life, 330W UHP lamp (standard mode: 2500 hours; eco mode: 3000 hours)

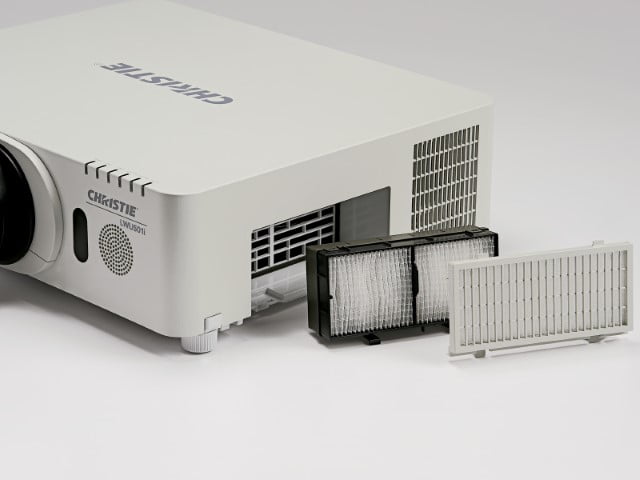

  • Hybrid filter operates for up to 20,000 hours reducing maintenance requirements
  • Built-in security features that limit access to projector controls and menus
  • Can be used at high altitudes – up to 10,000 feet (3,048m)
  • Optional wireless module for device flexibility and easy presentation set up
  • DICOM simulation mode for training purposes

The Christie LWU501i is equipped with AMX Device Discovery and Crestron’s RoomView™ for easy integration with third-party control systems. AMX Device Discovery:

  • improves the way AV installations are programmed, managed and operated,
  • makes programming easy, and
  • makes operation with an AMX control system effortless.

Crestron RoomView software provides a custom-configurable interface for remotely monitoring, managing and controlling every device in every room from any computer. RoomView automates and streamlines several management and technical support functions so you can work more efficiently.

The Christie LWU501i, equipped with all the features you need, makes giving professional presentations in your workplace easy and affordable.





  • Brightness: 5,000 ANSI lumens
  • Contrast: Up to 3000:1
Display technology and resolution
  • 3 x 0.75″ inorganic LCD
  • 1920 x 1200 native WUXGA
Lamp
  • 330W UHP lamp
Input signal compatibility
  • UXGA/SXGA /SXGA/WXGA/XGA/WXGA/SVGA/ VGA, MAC16″, NTCS, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, 480I, 480P, 576I, 720P, 1080i 1080p
Scan rates
  • Horizontal: 15-106kHz
  • Vertical: 56-120Hz
Pixel clock
  • 27MHz ~ 162MHz
Inputs, control and networking
  • Input 1: D-Sub 15 x 1 (Component support)
  • Input 2: 5-BNC (R, G, B, H, V & Y, Pb/Cb, Pr/Cr & Composite)
  • Digital inputs: HDMI x 2, S-video DIN 4-pin x 1, Composite video RCA x 1
  • Component video RCA x 3, USB input type A x 2 for optional wireless network), USB type B x 1 (for USB display or mouse control), Audio In – Mini jack x 2 (3.5 mm stereo), RCA jack (L,R) x 1
  • Output RCA (L & R) x 1, Network (LAN) RJ-45 x 1 (wired LAN), Control terminals 9-pin D-sub x 1 for RS-232C (serial)
  • Control 9-pin D-sub x 1 for RS-232C (serial)
Optical system
  • Motorised zoom, focus and lens shift
  • Mechanical light shutter
Fixed lens
  • 0.8:1
Zoom lenses
  • Short zoom 1.2-1.8
  • Medium zoom 1.5-3.0*
  • Long zoom 2.8-4.9
  • Ultra long zoom 4.9-8.3

*Lens ships standard
Digital keystone
  • Horizontal: ± 20 degrees
  • Vertical: ± 12 degrees
  • 8-point geometry correction
Standard accessories
  • Power cord (US cord, 1.8m) x 1
  • (UK cord, 1.8m) x 1
  • (Euro code, 1.8m) x 1
  • Computer cable (2m) x 1
  • HDMI-DVI cable (0.4m) x 1
  • Wireless remote control x 1 & “AA” Batteries x 2
  • Security label x 1
  • Lens cover x 1
  • Adapter cover x 1
  • Cable holder x 1
  • Network and wireless software (in a CD-ROM)
  • User’s manual CD
Optional accessories
  • Wireless adapter
  • Hybrid filter
  • 330W UHP lamp
Enhanced feature sets
  • Crestron RoomView™
  • AMX Device Discovery
  • 360-degree on axis rotation
  • Picture-by-picture
  • Dual-stack control
  • Digital keystone feature
  • Hybrid filter up to 20,000 hours maintenance-free
  • Customisable start-up logo
  • Selectable aspect ratio 16:9 and true mode
  • Intuitive graphical user interface
  • Graphical on-screen lens range
  • LCD menu for easy set up and maintainence
  • Front and rear infrared sensors for IR keypad
  • Supports simple curved screens
  • Stackable*design for redundancy or added brightness
  • Built-in security features and menu settings
  • Repeatable lens recall capabilities**
  • 16W stereo speakers

*In a stacked setup, this projector is best suited for events or temporary use. The projector may need to be re-aligned if it is used in a fixed-installation application.

**Not available on fixed lenses and does not include zoom or focus capabilities.
Power requirements
  • Operating voltage: AC100 -120V, 50/60Hz • AC220 -240V, 50/60Hz
  • Operating current: 4.9A max at 100V AC • 2.4A max at 220V AC
  • Consumption: • 480W  AC100 -120V • 455W  AC220 -240V
  • Dissipation: 1683 BTU/hr @ 100-120V • 1553 BTU/hr @ 220-240V
Dimensions (LxWxH)
  • Body: (LxWxH): 18.7 x 19.6 x 5.8″ (476 x 498 x 147mm) (with standard lens)
  • Shipping size: (LxWxH): 26.9 x 21.7 x 9.0″ (683 x 552 x 229mm)
  • Weight: 19.6lbs (8.9kg) (with standard lens)
  • Shipping weight: 28.0 lbs (12.7kg)
Operating environment
  • Noise: Standard mode: 35 dBA / 29 dB Eco mode
  • Temperature: 32-104°F (0-40°C)
  • Humidity: 10-85% non-condensing
Regulatory approvals
  • This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)
  • FCC, Part 15, Subpart B, Class
  • EN55022/CISPR22 Class A
  • EN55024 / CISPR24
  • IEC 60950-1
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • Directive (EC) 2002/95/EC (RoHS)
  • Directive 2002/96/EC (WEEE)
  • EU Regulation (EC) No. 1907/2006 (REACH)
  • Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), C-Tick (Australia and New Zealand), South Africa
Limited warranty
  • Projector: three years parts and labour
  • Lamp: 500 hours or one year (whichever comes first)
  • Contact an authorised Christie representative for full details of our limited warranty

Brand

Christie

With an established, respected and trusted history supplying and supporting various high-end applications with performance-driven display technologies, advanced processing, warping, media playback and network-distributed solutions for a variety of proAV applications. DM supply a range of Installed Christie Projectors - Please contact us directly for more information and a quotation.
