Discontinued

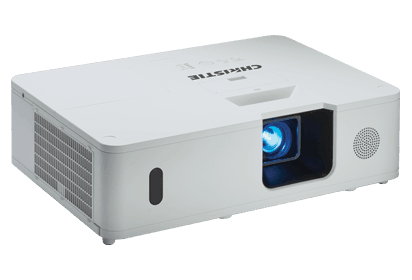

Christie LW502 3LCD projector

  • 5000 lumens
  • Extensive I/O including HDBaseT
  • WXGA (1280×800) resolution
  • 5000:1 contrast ratio
  • 16W integrated audio system
  • Edge-blending and warping
Christie
Tag: Category: SKU: PR/LCD/CHR115

The Christie® LW502 is a feature-rich, 5,000-lumen-class 3LCD projector showcasing Christie’s renowned level of performance in a compact, easy-to-use and value-added package.
Offering a long lamp life (up to 6,000 hours) and integrated audio, this projector provides a low total cost of ownership and is designed for easy classroom or meeting space installation.

Features

  • Extensive I/O including HDBaseT
  • WXGA (1280×800) resolution
  • 5000:1 contrast ratio
  • 16W integrated audio system
  • Edge-blending and warping
  • DICOM simulation mode
  • Wireless presentation capable
  • Ease-of-use and maintenance
  • Industry-leading warranties and service
Image Brightness (lumens)

  • Centre – 5401
  • ANSI – 5000
  • ISO – 5525

Contrast

  • 5,000:1
Display technology
  • 3 x 0.59″ Inorganic LCD
  • 1280 x 800 WXGA
Lamp Type

  • 300W UHB

Typical lifetime

  • Normal mode: up to 4000 hrs
  • Eco mode: up to 6000 hrs
Inputs Signals

  • VGA / SVGA / XGA / WXGA / WXGA / SXGA / SXGA / WSXGA / UXGA / WUXGA / MAC 16″
  • NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM
  • 480i, 480p, 576i, 720p, 1080i, 1080p

Scan rates

  • Horizontal: 15-106kHz
  • Vertical: 60-120Hz

Standard

  • Computer In: 15-pin D-sub x 1

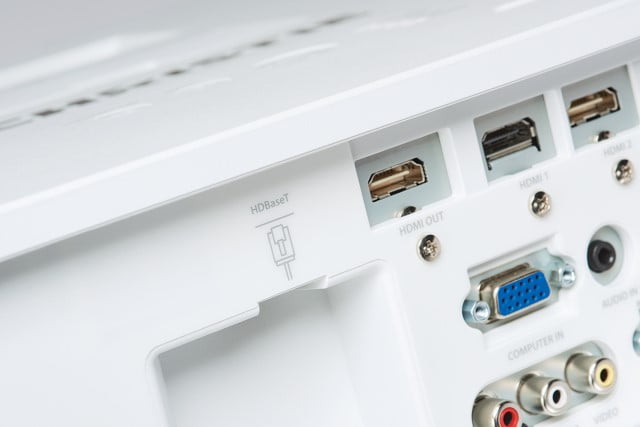

  • Digital Input: HDMI x 2, HDBaseT x 1
  • Video Input: Composite video RCA jack x 1, Component video 15-pin D-sub x 1
  • Audio input: 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1
  • USB Type A x 1 (for wireless network)
Outputs
  • HDMI x 1
  • 15-pin D-sub x 1
  • Audio output 3.5mm stereo mini jack x 1
Control and networking
  • 9-pin D-sub x 1 (RS-232C)
  • RJ-45 port (HDBaseT)
Accessories Standard

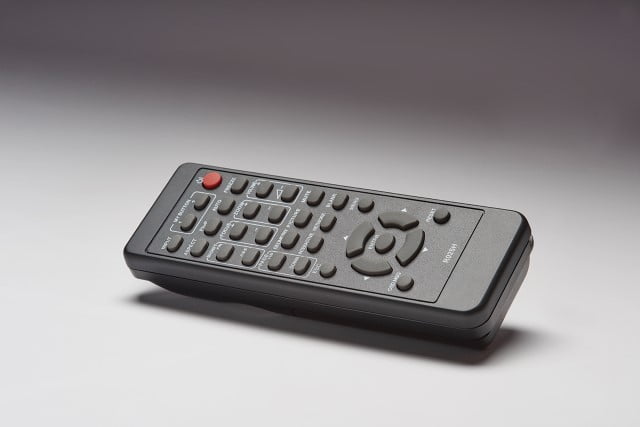

  • IR remote
  • AC line cords for projector head
  • RGB cable
  • Adapter cover
  • Lens covers
  • User documentation

Optional

  • Ceiling mount (108-506102-01)
  • 300W UHB lamp (003-005852-01)
  • Air filter (003-005853-01)
  • USB wireless adapter (121-116109-XX)
Lens
  • 1.4 – 2.3:1, 1.6x manual zoom

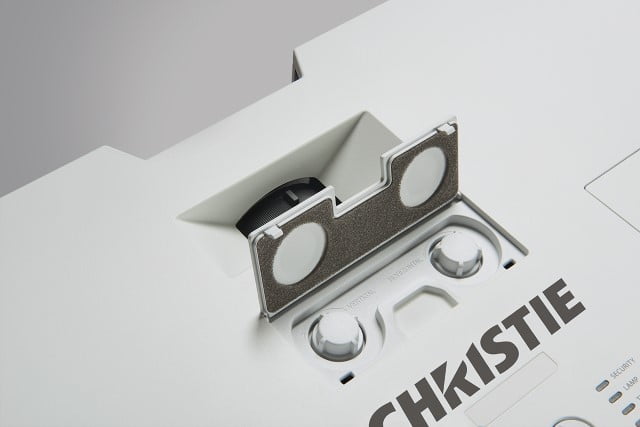

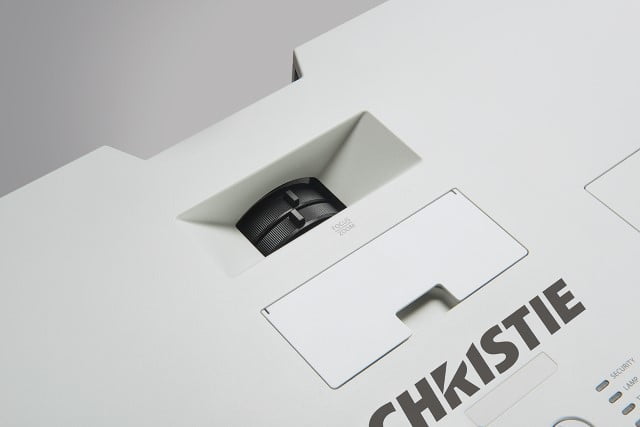

  • Focus and lens shift
Power requirements Operating voltage

  • 100-120V AC @ 50/60Hz
  • 220-240V AC @ 50/60Hz

Power consumption

  • 440W @ 100-120V AC
  • 420W @ 220-240V AC

Operating current

  • 4.4A @ 100V AC
  • 2.2A @ 220V AC

Dissipation

  • 1502 BTU/hr @ 100-120V
  • 1433 BTU/hr @ 220-240V
Audible noise
  • Standard mode: 39dB(A)
  • Eco mode: 30dB(A)
Physical Size

  • (LxWxH) 13.3 x 18.3 x 5.4″ (338 x 466 x 138mm) w/o feet

Shipping size

  • (LxWxH) 18.8 x 22 x 9.7″ (478 x 560 x 246mm)

Weight

  • 15.2lbs (6.9kg)

Shipping weight

  • 21.8lbs (9.9kg)
Operating environment Temperature

  • Temp: 40–104° F (5–40° C)

Humidity

  • Humidity: 10-85% non-condensing

Altitude

  • 0–10,000ft (3048m)
Key features
  • HDBaseT
  • Long-life lamp up to 6000 hrs (eco mode)
  • AMX and Crestron connectivity
  • Extron XTP certified

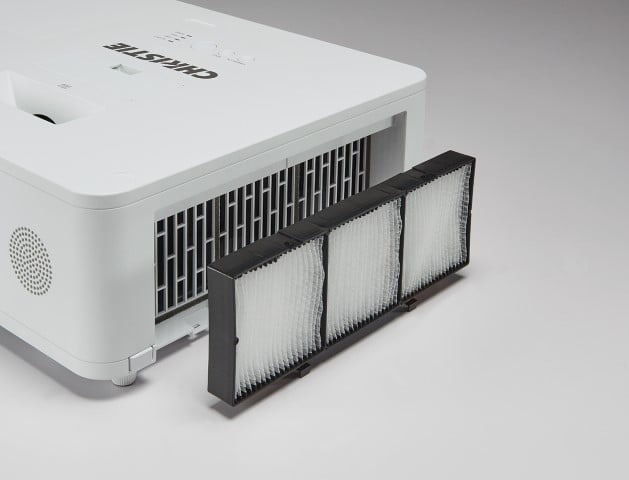

  • Hybrid filter up to 10,000 hrs
  • DICOM simulation mode
  • HDCR
  • Picture-in-Picture/Picture-by-Picture
  • Edge blending
  • Warping
  • Zoom, focus, H/V lens shift
  • HDMI-Out
  • Closed caption
  • Built-in keypad
  • 3D Keystone
  • Wireless capable
Warranty
  • Three years on the projector
  • Contact an authorised Christie representative for full details of our limited warranty

Brand

Christie

With an established, respected and trusted history supplying and supporting various high-end applications with performance-driven display technologies, advanced processing, warping, media playback and network-distributed solutions for a variety of proAV applications. DM supply a range of Installed Christie Projectors - Please contact us directly for more information and a quotation.
