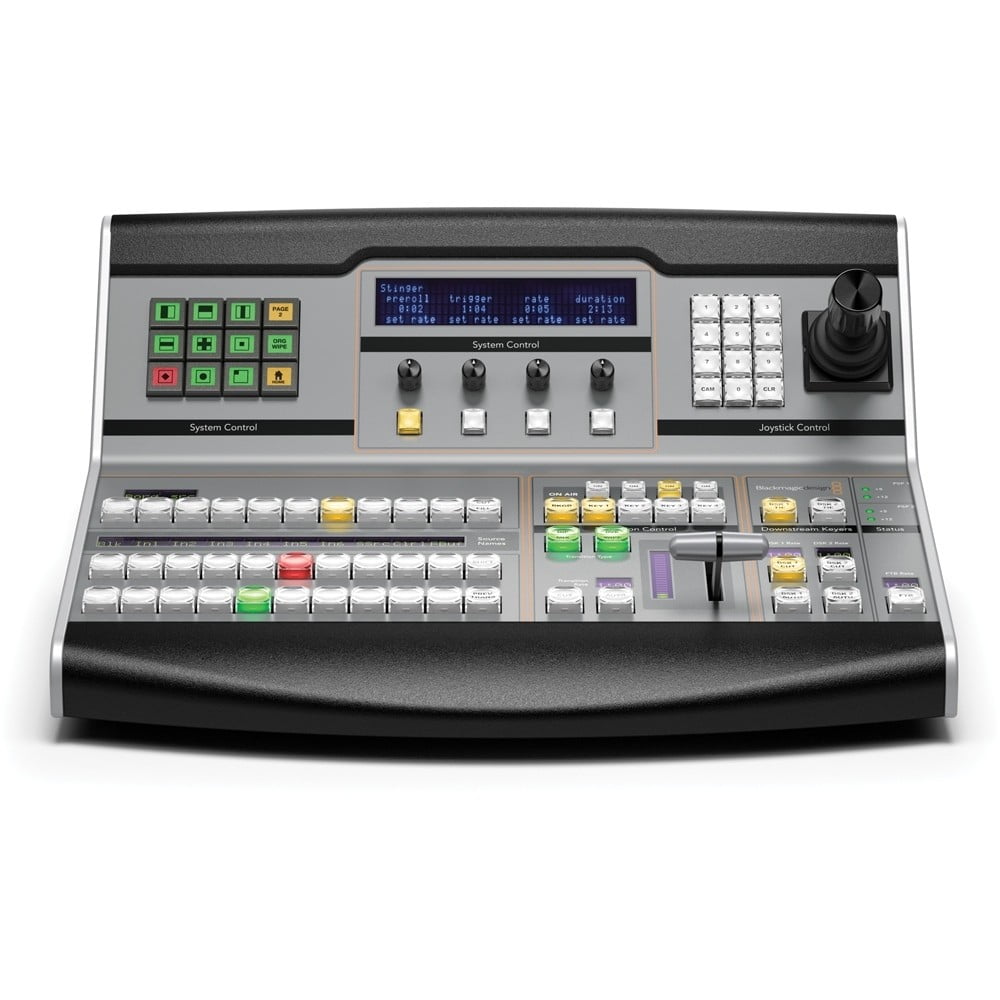

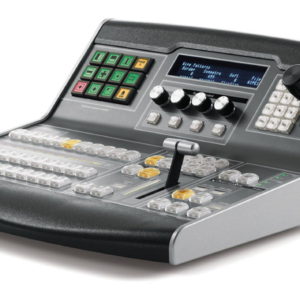

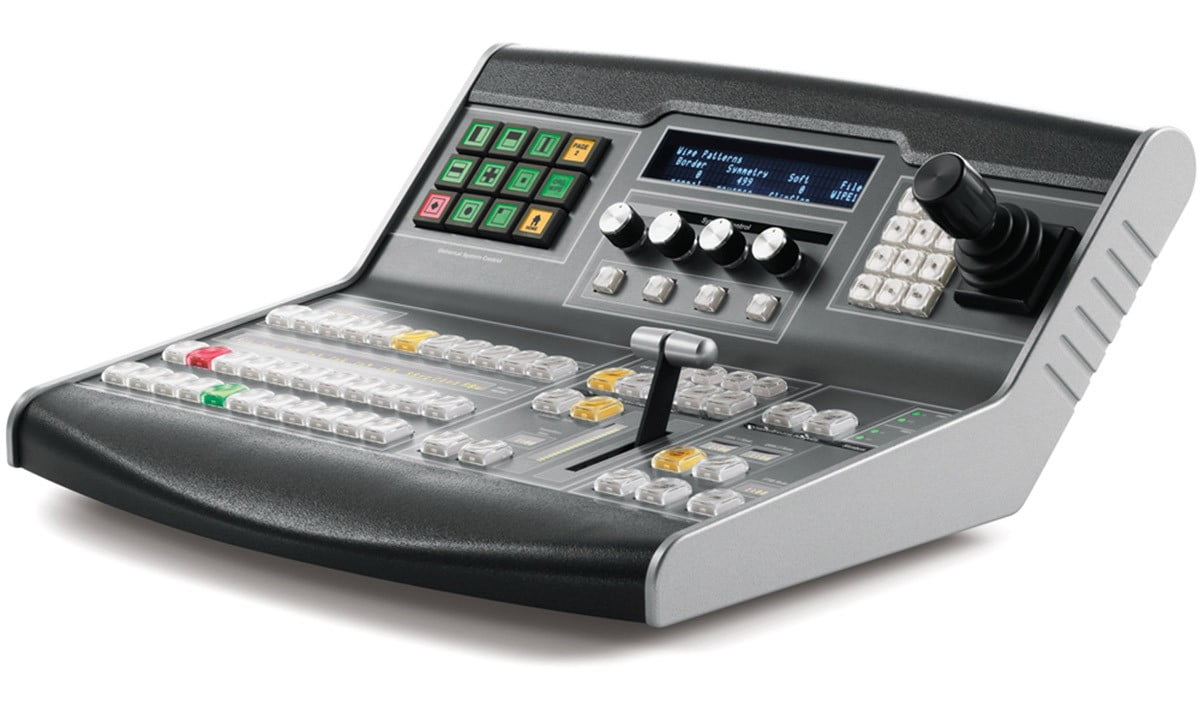

When the software control panel is too limited, the ATEM 1 M/E Broadcast Panel is a professional panel with the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment. The ATEM 1 M/E Broadcast Panel is compact so it fits within a rack width!
You get full control of your switcher, including cameras, transitions, keyers, fader, DVE control and more. ATEM 1 M/E Broadcast Panel connects via ethernet and includes a loop thru connection for more than one panel or computer.
Live production demands error free operation and the features you need for incredible production values. ATEM switchers include powerful creative tools such as DVE, upstream keyers, media pool, Photoshop™ plug in, preview transition and more! With ATEM you get the features you need for an incredible live production that will amaze your audience!.
Built in Multi ViewSave thousands of dollars on costly camera monitoring with ATEM’s built in multi view. Multi view allows 10 channels of video to be displayed on a single SDI or HDMI television or monitor. Views are fully routable, so you can select any external video source or any internal video source such as media players, color generators, auxiliary outputs, clean feeds and more! You can change the multi view layout, as well as customize the labels and set safe area markers on the preview display. Multi view includes tally, so on-air sources have red borders and preview sources have green borders. No other switcher is more portable than ATEM because you only need the ATEM chassis, laptop and a single television for a complete multi-camera production environment!
ATEM is a professional broadcast SDI switcher that also includes loads of HDMI connections, so you can start affordably with consumer HDMI cameras then move up to SDI cameras as your budget grows! Unlike other switchers, every video input features an automatic frame re-synchronizer, so you can plug in any device and it always works! Imagine getting started with incredible multi-camera production using the latest low cost and high quality HD consumer cameras! ATEM is perfect at locations where you need to adapt to the environment because it includes SDI, HDMI, and component/composite inputs and outputs. You can send live program output to anyone who needs it because ATEM includes 6 program outputs in HD-SDI, HDMI, HD component and USB 3.0, as well as permanently down converted SD-SDI and composite video. All ATEM models include built in black, bars, media player and color generator sources. The ATEM multi-viewer includes both SDI and HDMI outputs, plus you get 3 Aux outputs for connecting to stage screens and venue monitoring. The ATEM 1 M/E model includes a total of 8 inputs with 4 HDMI, 1 component/composite, and 4 SDI/HD-SDI connections. If you need even more inputs, the ATEM 2 M/E model features extra SDI connections for a total of 16 inputs, as well as 6 Aux outputs, and support for 2 independent multi-viewers!
Preview TransitionWhen you’re in the middle of a busy live production, the last thing you need is to make a mistake! ATEM includes a transition preview function that’s as easy to use as pushing the Preview Transition button! The Preview Transition button lets you see how the transition will look on the preview output of the switcher. Now you can see the effect before it goes on air!
For incredible character and title generation, every ATEM includes a Photoshop plug-in that lets you instantly download graphics and titles from Photoshop directly into the ATEM media pool. Imagine the moment a live event happens, you can update your Photoshop file and instantly download it into the ATEM media player. Now you can get titles on air in seconds! Because Photoshop is the standard tool for millions of graphic designers, it’s easy to get help to create your own custom graphics! ATEM also supports rendered stills and clip sequences from Photoshop, After Effects, Final Cut Pro, Premiere Pro and many more!
Ethernet 10/100/1000 BaseT with loop output for additional control panels or computers.
Software Updates 1 x USB for firmware updates
Direct Cross Points 10
Shifted Cross Points 20
Crosspoint Button Type Tri-Color LED
Crosspoint Label 4 Character LED
Next Transition Selectors BKG, Key 1 – Key 4
On-Air indicator Yes
DSK Transition Selectors Auto, Cut, Tie/Pvw
Preview Transition Yes
Transition Rate Displays Yes
Menu Control LCD Bitmap Buttons
Fader Bar 1
3 Axis Joystick Yes
Numeric Keypad Yes
Operating System Aerospace Certified Embedded OS
Redundant Power Yes
Input Voltage 12V
Power Usage 40 Watts
Product Warranty 12 Months Limited Manufacturer’s Warranty
Width 17.63″ or 448mm
Height 6.92″ or 176mm
Depth 15.08″ or 383mm
Weight 13.2 lbs or 6 kg
Cutout Width None
Cutout Depth None
