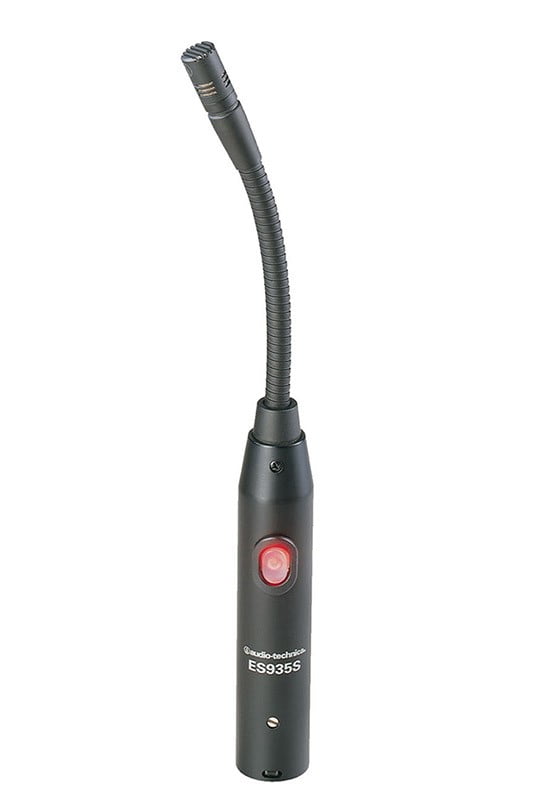

Audio Technica ES935SH6

Discontinued

Gooseneck condenser mic with integrated 3 pin XLR connector

    • Touch on/off mute switch and light “on” LED
    • 197.3mm length, flexible arm
    • Ideal for lecterns, pulpits and desktop speech pickup
    • Mic capsule with Hypercardioid pickup pattern
    • ‘UniGuard’ radio interference immunity (from mobile phones etc)
    • Requires Phantom Power

Discontinued – See Replacement Microphone ES931H



Audio Technica
Tag: Categories: , SKU: MI/CON/ATEC65

This super-compact, small-diameter gooseneck delivers flexible positioning with a sleek, low-profile appearance. The mic’s low-profile element provides a uniform hypercardioid polar pattern with 100deg acceptance angle. It is equipped with an 80 Hz low-cut UniSteep’ filter that reduces pickup of low-frequency ambient noise and a mute switch with an LED that lights when the mic is on. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard’ innovations.

  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Mute switch in base lights to indicate operational status of the microphone
  • Low-profile element provides uniform hypercardioid polar pattern with 100deg acceptance angle
  • Unobtrusive design with an overall length of only 7.77″ (197.3 mm)
  • Plugs into any standard XLRF-type connector, or direct mounts to 5/8″-27 stands using included thread-mount adapter
  • Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
  • Available interchangeable elements permit angle of acceptance from 90deg to 360deg
  • Small-diameter gooseneck permits highly flexible positioning while maintaining smooth, contoured appearance
  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom power
  • UniGuard’ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep’ filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • RoHS compliant. Free from all substances specified in the EU directive on hazardous substances

Accessories
AT8109 two-stage foam windscreen; AT8474 universal isolation mount; AT8473 quick-mount stand adapter; 5/8″-27 to 3/8″-16 threaded adapter

Specifications

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Hypercardioid
Frequency Response: 80-20,000 Hz
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
Impedance: 250 ohms
Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 109 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 4 mA typical
Weight: 104 g (3.7 oz)
Dimensions: 197.3 mm (7.77″) long, 8.4 mm (0.33″) head diameter, 18.9 mm (0.74″) base diameter
Output Connector: Integral 3-pin XLRM-type
