With durable construction and unobtrusive appearance, the ES933H offers versatile solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphone’s low-profile element provides a uniform hypercardioid polar pattern with 100° acceptance angle.

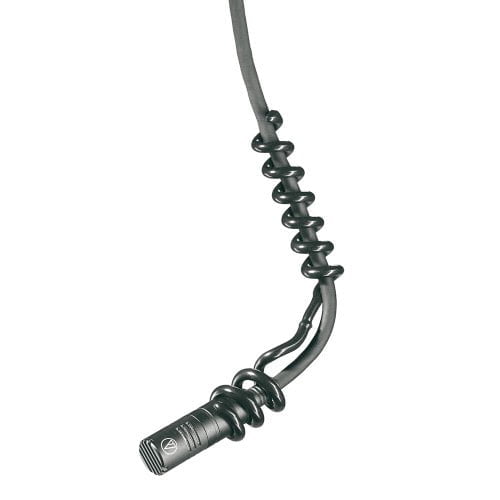

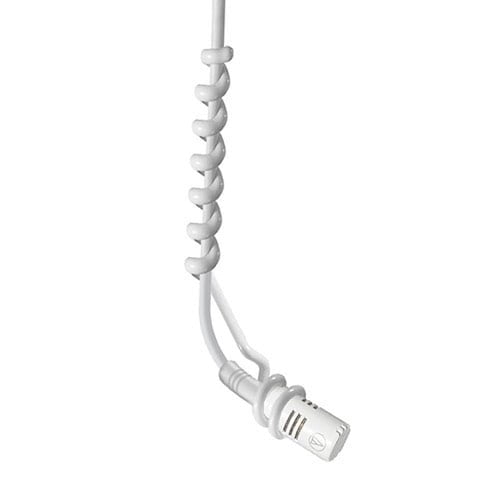

Available in two colors: black (ES933H); white (ES933WH), the microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard’ innovations. The ES933H also offers an 80 Hz low-cut UniSteep’ filter that reduces pickup of low-frequency ambient noise.
Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages
Low-profile element provides uniform hypercardioid polar pattern with 100°acceptance angle
Available interchangeable elements permit angle of acceptance from 90° to 360°
Superior off-axis rejection for maximum gain before feedback
Requires 11V to 52V DC phantom power
UniGuard’ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Integral UniSteep’ filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Available in two colors: black (ES933H) and white (ES933WH)
RoHS compliant – free from all substances specified in the EU directive on hazardous substances
Element: Fixed-charge back plate, permanently polarized condenser

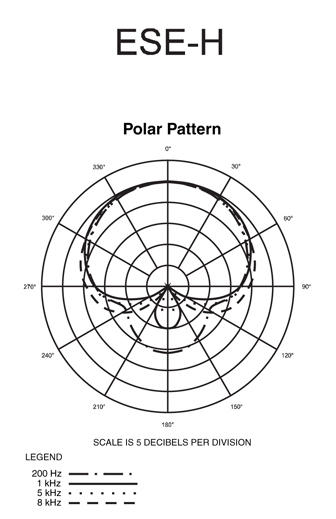

Polar Pattern: Hypercardioid

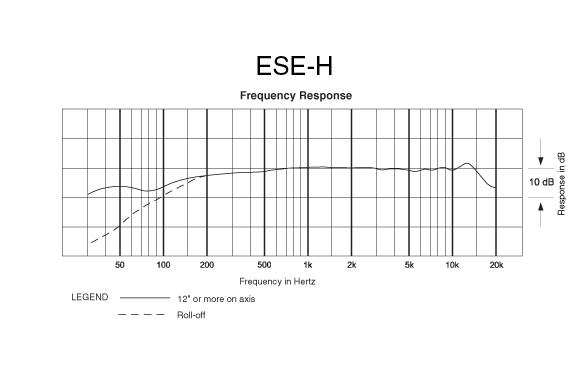

Frequency Response: 80-20,000 Hz
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: -40 dB (10.0 mV) re 1V at 1 Pa
Impedance: 250 ohms
Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 109 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 65 dB, 1 kHz at 1 Pa
Phantom Power Requiremens: 11-52V DC, 2 mA typical
Switch: Flat, roll-off
Cable: 15.2 m (50′) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable, terminated with TA3F-type connector
