Audio Technica ATW-2110a & BP892cW

Discontinued

Audio Technica AT2110 radio system with BP892cW discreet headset

  • True diversity rack mount radio system
  • Pro quality, discreet headset condenser mic
  • Excellent radio reception and sound quality
  • Special package price
Audio Technica
Tag: Category: SKU: RM/OTH/AT2000/BP892

Audio Technica AT2110 radio system with BP892cW headset

  • True diversity rack mount radio system
  • High quality, discreet headset mic
  • Excellent radio reception and sound quality
  • Special package price

We have packaged this this system to offer a great deal on this excellent combination of radio mic and discreet headset microphone.

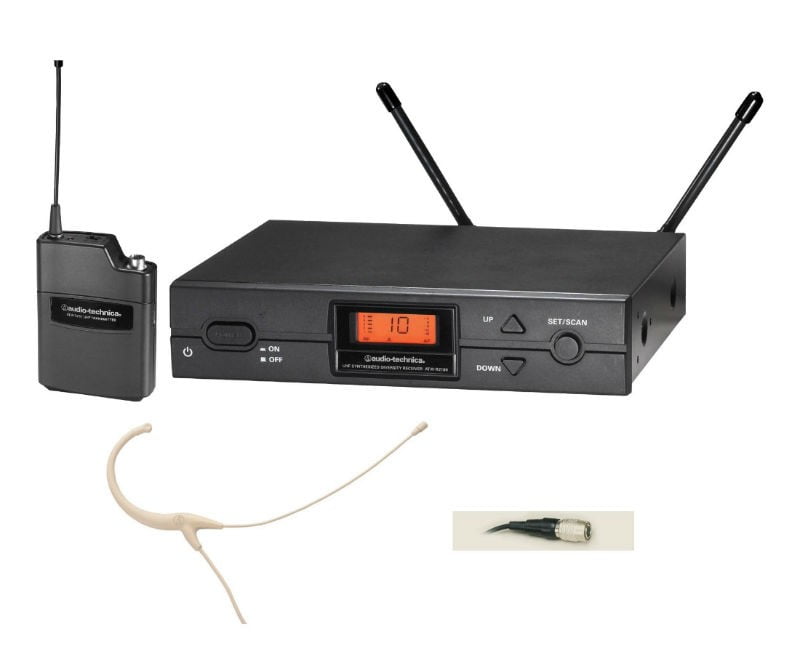

Package includes

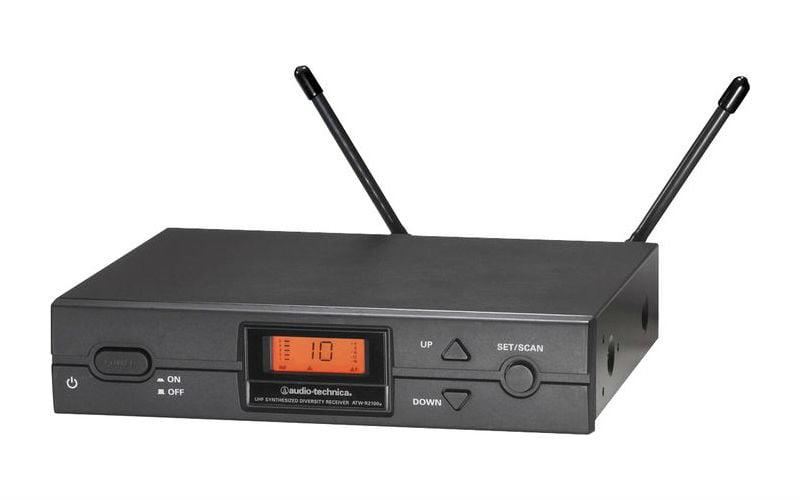

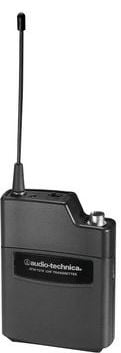

1 x Audio Technica ATW-2110a (ATW-T210a beltpack transmitter & ATW-R2100a rack mount receiver)
1 x Audio Technica BP892cW discreet pro headset mic (with 3.5mm jack connector)

Product Details

The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Features

  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning finds an open channel at the touch of a button
  • All 10 user-switchable channels are compatible-for easy use with multiple systems; no confusing frequency groups
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock“ tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
  • Balanced XLR and unbalanced 1/4″ output jacks enable use with a wide variety of audio gear
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

System Specifications:
Operating Frequencies UHF band: 840.000 – 865.000 MHz (UK Band-GB)
Number of Channels: 10 total
Frequency Stability: /- 0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Normal Deviation: /- 5 kHz
Operating Range: 100 m typical
Operating Temperature Range: 41degrees F (5 degrees C) to 113 degrees F (45 degrees C)
Frequency Response: 100 Hz to 15 kHz
ATW-T210 Input Connections: High impedance, low impedance, bias, Batteries: Two 1.5V AA alkaline (not included)

NOTE: If using rechargeable batteries we recommend Nickel Metal Hydride (NiMH) type.

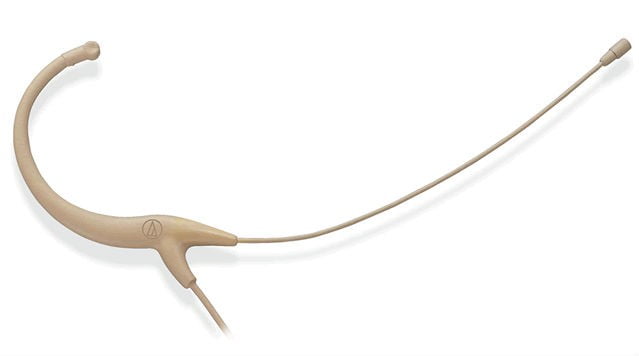

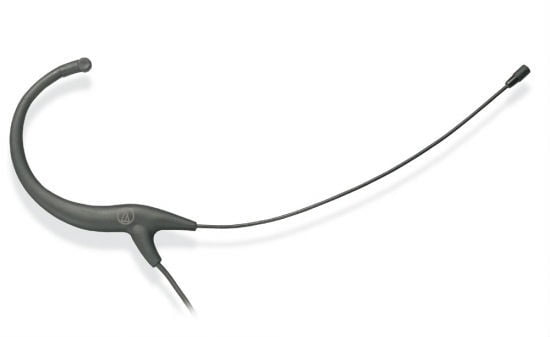

BP892cW MicroSet’ Omnidirectional Condenser Headworn Microphone

Introducing a giant stride in the technology of inconspicuous sound. With a capsule diameter of just 2.6 mm, the new MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.

Audio-Technica’s high-SPL BP892 MicroSet’ offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue.

The microphone features a flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by a highly durable Parylene coating, the new headworn mic is built to stand up to the rigors of day-to-day use.

Key points:
• Handles high sound pressure levels with ease
• Extremely intelligible natural audio
• Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
• Ergonomic under-ear design¤flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses
• High-pass filter on power module provides a steep low-frequency attenuation to improve sound pickup without effecting voice quality

Overall Radio System
Operating Frequencies: UHF band856.100 – 864.900 MHz (F Band)800.100 – 813.900 MHz (E Band)721.500 – 746.375 MHz (G Band)656.125 – 678.500 MHz (D Band)487.125 – 506.500 MHz (I Band)
Number Of Channels: 10 total
Frequency Stability: ±0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Operating Range: 100 m (300′) typical
Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
Frequency Response: 100 Hz to 15,000 Hz

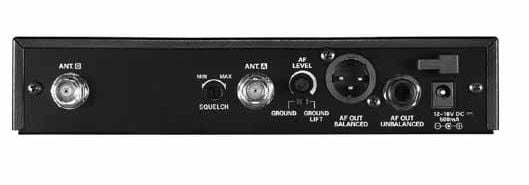

Receiver Specifications
Receiving System: True diversityImage Rejection: 55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio: >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
Sensitivity: 20dBuV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Audio Output: Unbalanced: 25mV (100k ohms load), 1/4″ phone jack
Balanced: 50mV (Attenuator; 0dB)12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHzdeviation, 100k ohm load, XLRM-type
Antenna Input: BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
Dimensions: 210 mm x 44 mm x 162.2 mm (W x H x D)
Weight: 1.0kg (2.2 lbs)
Accessories Furnished: Two flexible UHF antennas, rack mount adapters, AC adapters
Optional System Accessory: AT8630 joining-plate kit, mounts two ATW-R2100a receivers in single 19″ rack space Body-Pack Transmitter
RF Power Output: High: 30mW; Low: 10mW, nominal
Spurious Emissions: According to National Regulations
Batteries: Two 1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption: 150 mA typical
Battery Life: Approximately 9 hours (low), 7 hours (high)
Dimensions: 66 mm x 92.3 mm x 22.5 mm (W x H x D)
Weight (Without Battery): 80 grams

Specifications – BP892 headset mic

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave (wired only)
OPEN CIRCUIT SENSITIVITY ¤ 49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms (wired only)
MAXIMUM INPUT SOUND LEVEL 135 dB SPL, 1 kHz at 3% T.H.D.
DYNAMIC RANGE (typical) 104 dB, 1 kHz at Max SPL (wired only)
SIGNAL-TO-NOISE RATIO 63 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical (wired only)
SWITCH Flat, roll-off (wired only)
CURRENT CONSUMPTION 0.1 mA typical at 5V (wireless only)
VOLTAGE RANGE 2.5-11V (wireless only)
WEIGHT (MICROPHONE) 2.6 g (0.09 oz)
WEIGHT (POWER MODULE) 85 g (3.0 oz) (wired only)
DIMENSIONS (MICROPHONE) 8.1 mm (0.43″) long, 2.6 mm (0.10″) diameter – Boom: 98.4 mm (3.87″) long, 1.07 mm (0.04″) diameter
DIMENSIONS (POWER MODULE) 97.6 mm (3.84″) long, 18.9 mm (0.74″) diameter (wired only)
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 1.4 m long (permanently attached to microphone),
1.6 mm diameter, 2-conductor shielded cable with locking 4-pin connector (wired only)

ACCESSORIES FURNISHED BP892: AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens; two AT8156 element
covers; moisture guard; belt clip (wired only); carrying case
BP892-TH: AT8539 power module (wired only); AT8440 cable clip; two AT8157-TH windscreens; two AT8156-TH
element covers; moisture guard; belt clip (wired only); carrying case
