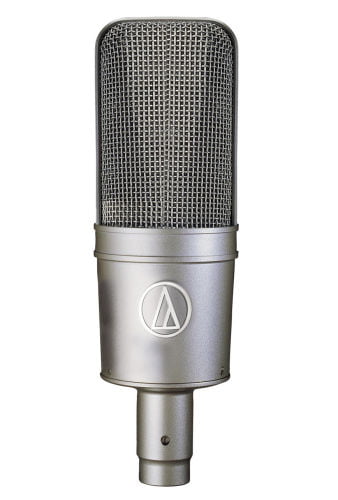

The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047SVSM studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range.

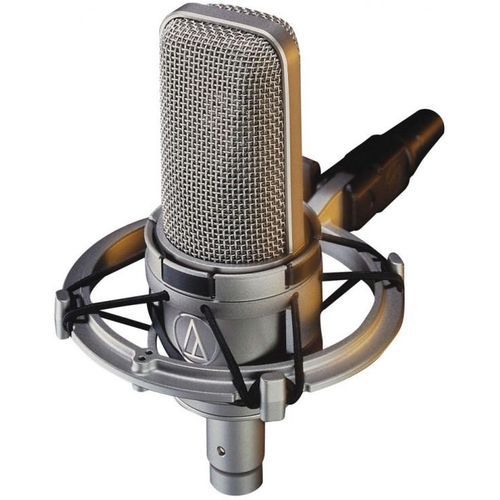

With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers. Supplied with AT8449SV shockmount. Also available as the AT4047SVSC with the AT8430 isolation stand clamp.
Element: Externally-polarized (DC bias) condenser

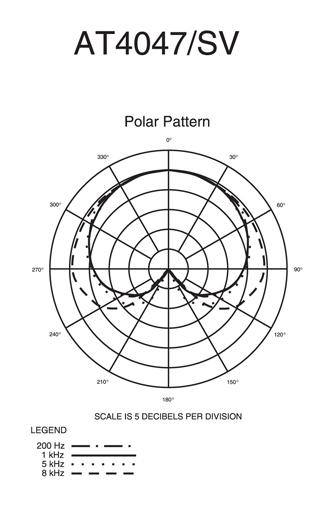

Polar Pattern: Cardioid
Frequency Response: 20-18,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa
Impedance: 250 ohms
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
Dynamic Range: 140 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 85 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 3.0 mA typical
Weight: 14.5 oz (410 g)
Dimensions: 6.69″ (170.0 mm) long, 2.10″ (53.4 mm) maximum body diameter
Output Connector: Integral 3-pin XLRM-type

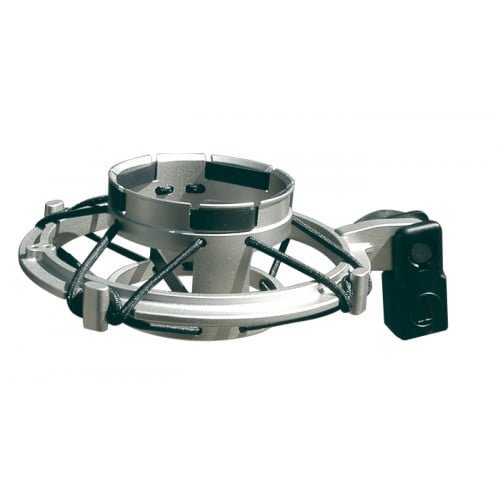

Accessories: AT8449SV shock mount for 5/8″-27 threaded stands; protective carrying case
