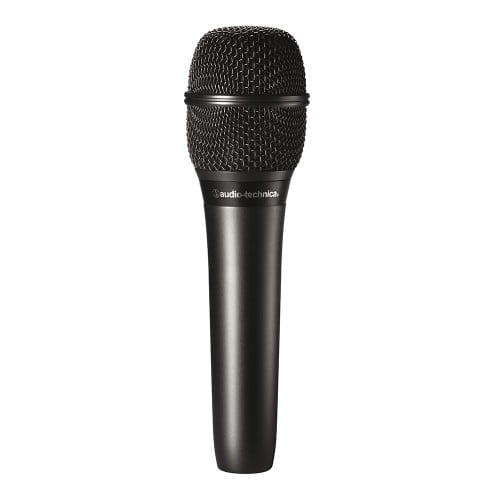

The AT2010 is a handheld condenser microphone with a cardioid polar pattern. It is designed specifically for close-up vocal use in professional live-sound and studio applications.
The AT2010 brings the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances.
Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.
Studio-quality sound on stage for crystal-clear vocal performance
Same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio microphone
Extended frequency response and superior transient response for smooth, natural sonic characteristics
High SPL-handling and wide dynamic range provide unmatched versatility
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
Rugged all-metal design and construction for years of trouble- free use
Corrosion-resistant contacts from gold-plated XLRM-type connector

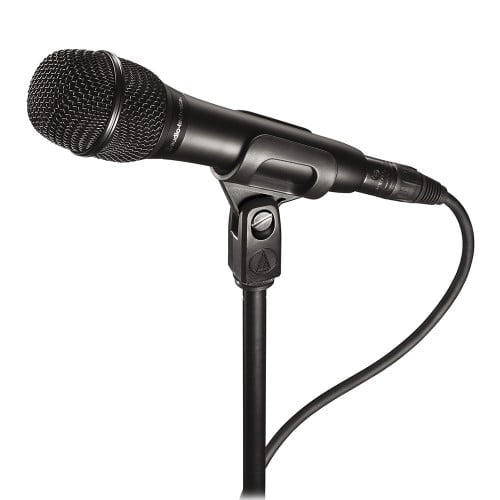

Quiet-Flex™ stand clamp provides silent, exible microphone positioning
Fixed-charge back plate permanently polarized condenser
40 – 20,000 Hz
Open Circuit Sensitivity
-48 dB (3.9 mV) re 1V at 1 Pa
Maximum Input Sound Level
136 dB SPL, 1 kHz at 1% T.H.D.
113 dB, 1 kHz at Max SPL
71 dB, 1 kHz at 1 Pa
Phantom Power Requirements
48V DC, 2 mA typical
179.1 mm (7.05″) long, 50.8 mm (2.00″) maximum body diameter
Integral 3-pin XLRM-type

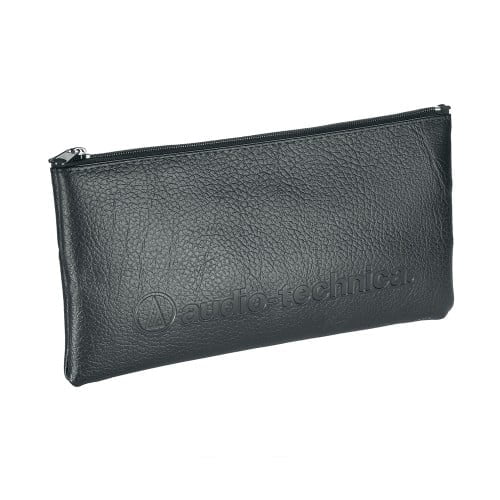

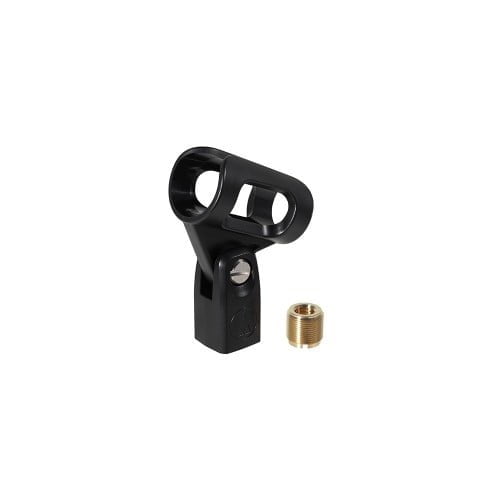

AT8470 Quiet-Flex™ stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
