Discontinued
  • 1U rack mount mixer
  • 6 channel stereo mixer
  • 3 x XLR balanced inputs
  • EQ (bass & treble) control
  • Effects loop
ART
Tag: Categories: , SKU: MX/UNP/ART04

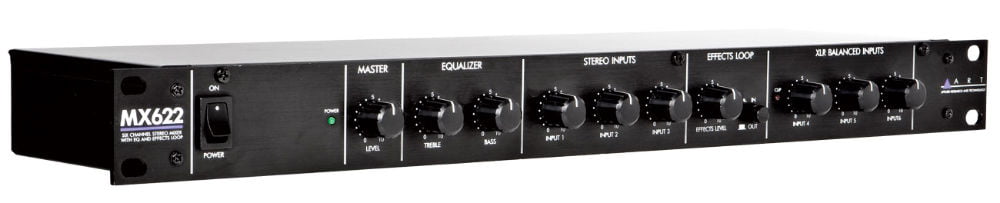

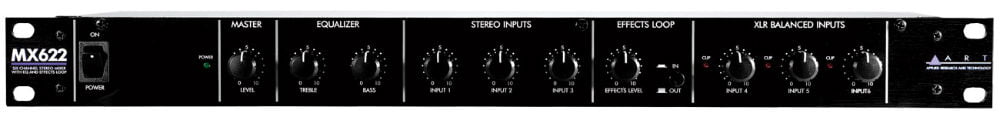

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Features

  • Three Balanced XLR Inputs Switchable Mic/Line Level
  • Three Stereo RCA Inputs with Separate Level Controls
  • Level Control and Clip Indicators
  • Selectable 15-volt Phantom Power for Mic Channels
  • Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
  • Versatile Two-Band Master EQ
  • Separate Stereo Record Outputs
  • Effects Loop with Level Independent Level Control

Specifications

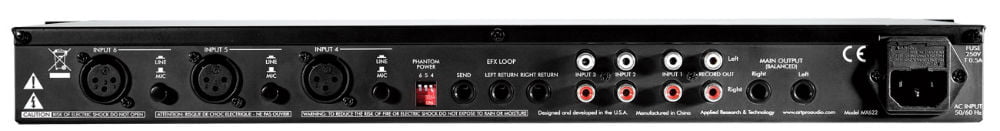

Input Connections: XLR-F balanced (x3) / §-inch unbalanced (x2) / 3 pairs stereo RCA (6 total)
Output Connections: TRS balanced 1/4-inch (x2) / 1/4-inch unbalanced (x1) / RCA (x2)
Input Impedance: 600/22K Ohms mic/line XLR inputs / 10K Ohms RCA inputs / 22K Ohms 1/4-inch effects returns
Output Impedance: 50 Ohms 1/4-inch main outputs / 1K Ohms RCA record outputs / 100 Ohms effects output
Maximum Input Level: -10dBu/ 20dBu mic/line XLR inputs / 20dBu RCA line inputs / 20dBu Effects inputs
Maximum Output Level: 24dBu balanced main outputs / 20dBu RCA record outputs / 20dBu Effects output
Phantom Power: 15 Volts DC (regulated / low noise)
Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
Signal to Noise Ratio: >90dB typical
THD: .01% Typical
Equalizer Range: /-12dB @ 100Hz & 10KHz
Power Requirements: USA ¤ 105 to 125 VAC / 50-60Hz, 15 Watts typical
Dimensions (HxWxD in): 1.75 x 19.0 x 6.0
Dimensions (HxWxD mm): 44.5 x 483 x 152
Weight (lbs/kgs): 6.2 / 2.8
