£924.00 Inc VAT

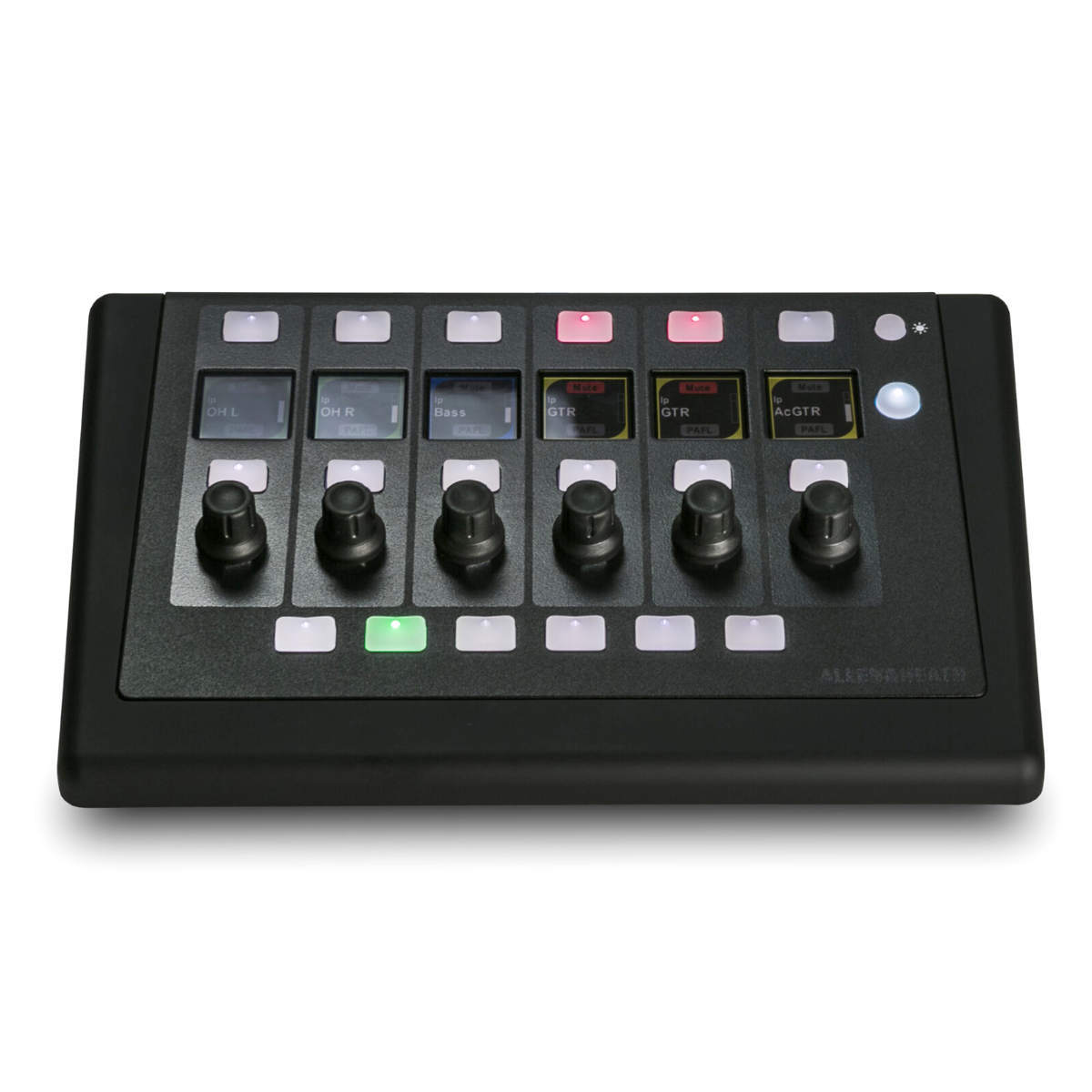

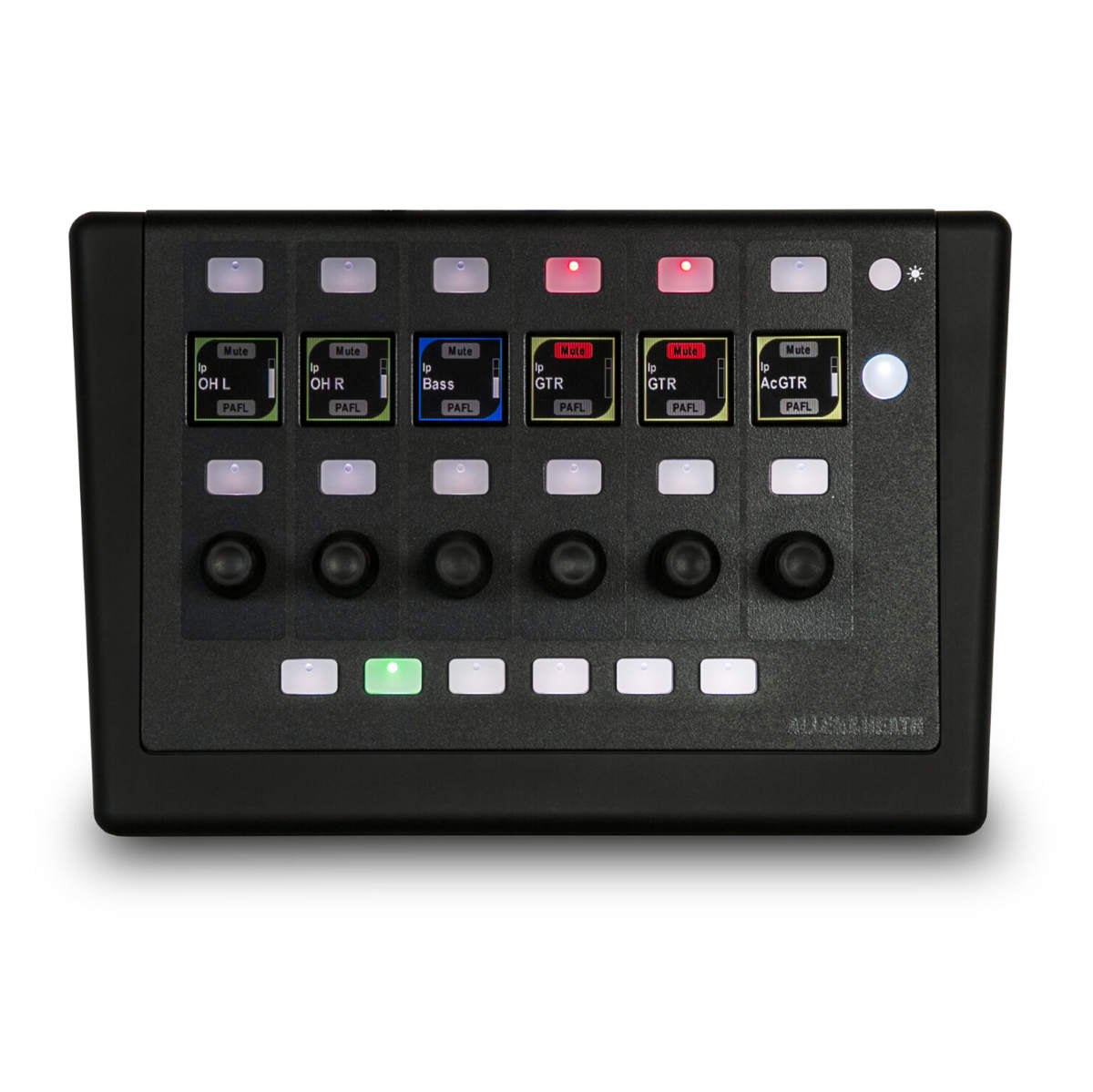

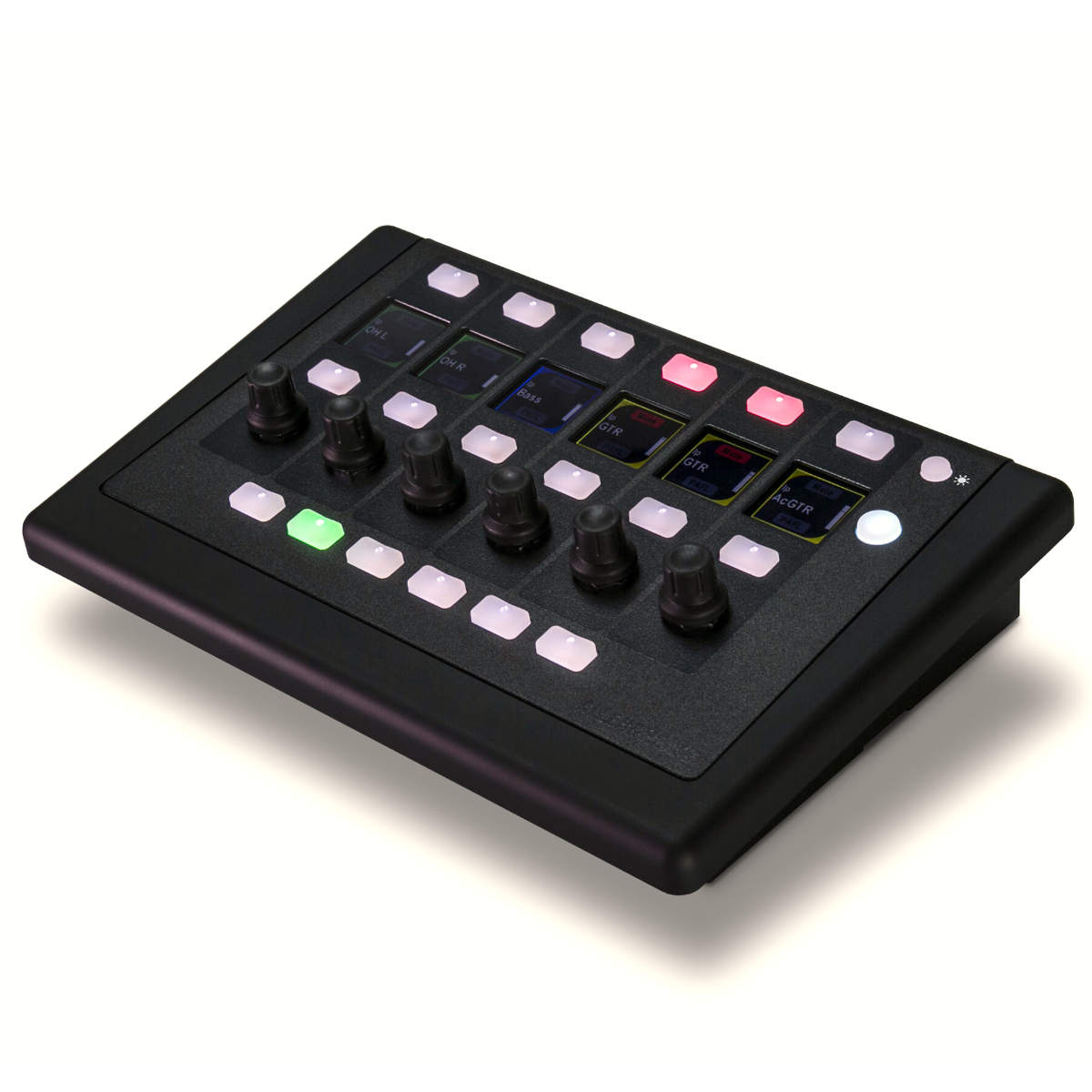

Six Rotary Remote Controller

  • 6 Push n Turn Rotary encoders
  • 6 x Layers
  • PoE or external 12V PSU (supplied)
  • Network with other controllers, computers and third-party devices
  • Compatible with the dLive product series
  • Works with Allen & Heath dLive, Avantis and AHM64 via TCP/IP
Allen & Heath
Category: SKU: RC/A&H/11

Rotary Control

The 6 assignable rotaries, with additional push and turn control, can be configured individually or as part of a “rotary strip”.

Assignable SoftKeys

19 assignable SoftKeys deliver a comprehensive level of control for the user.

Power Options

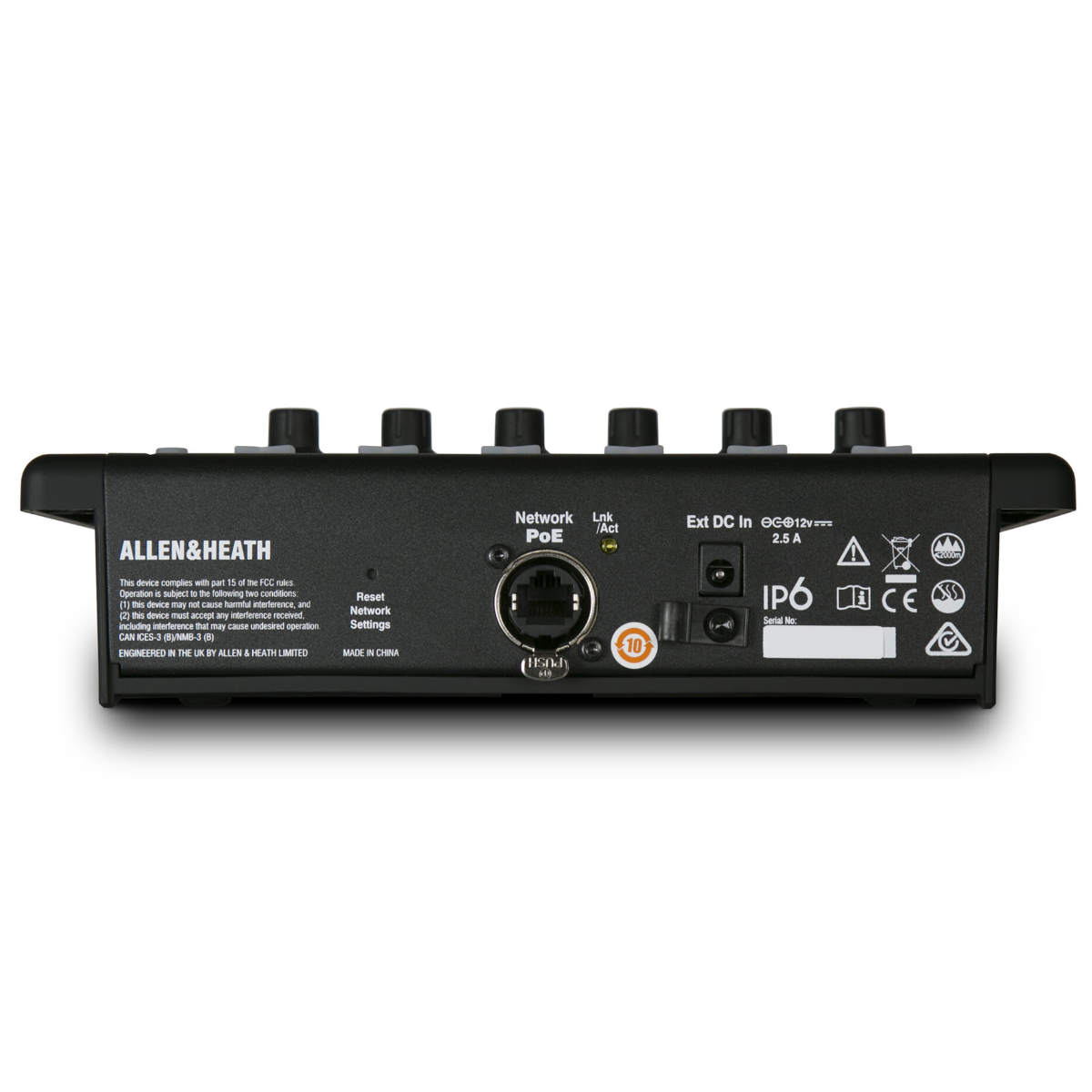

The IP6 ships with a 12V PSU and also supports PoE.

Freestanding or Mounted

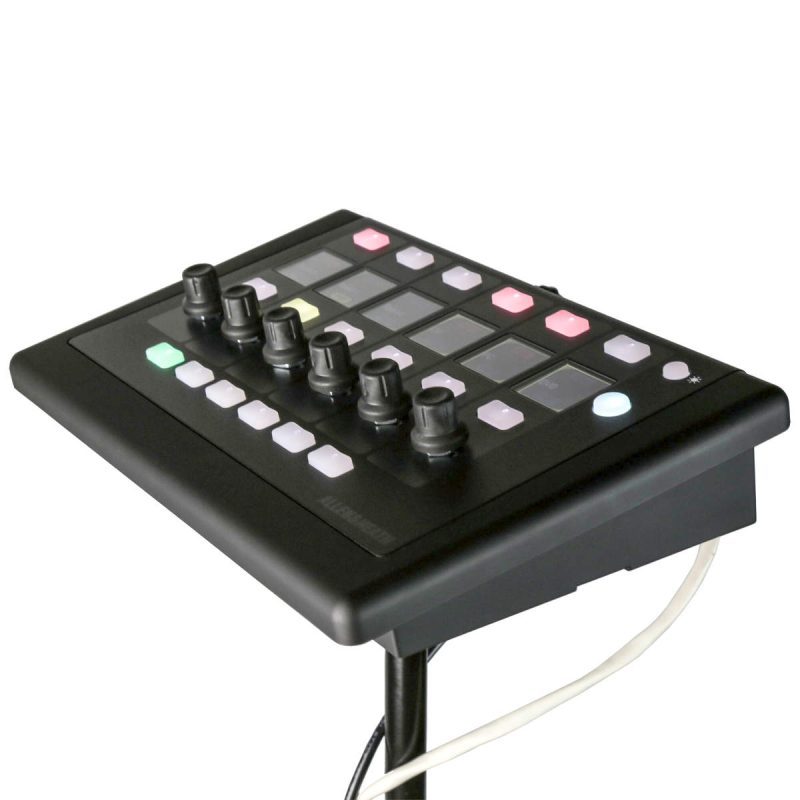

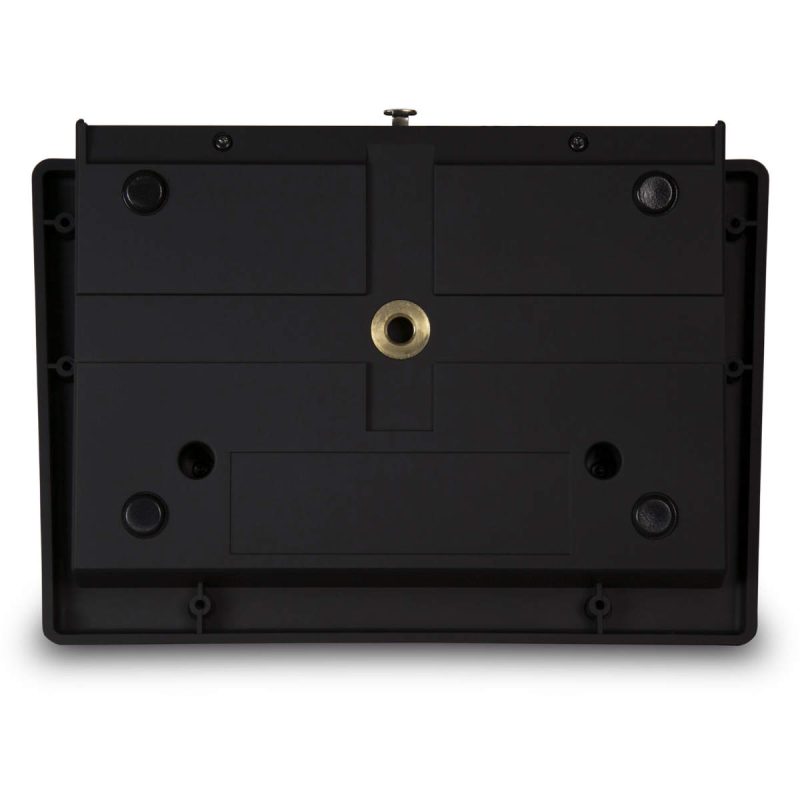

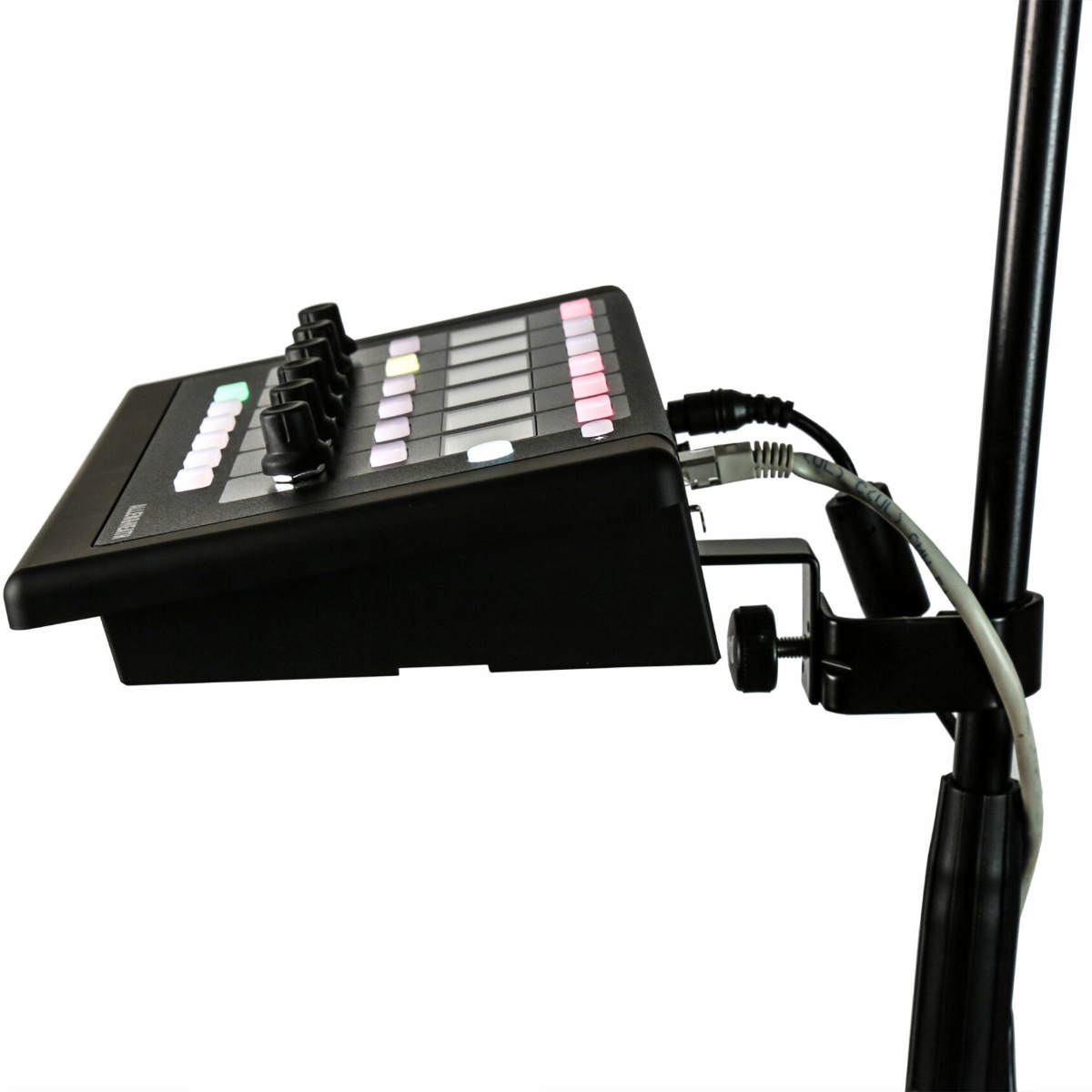

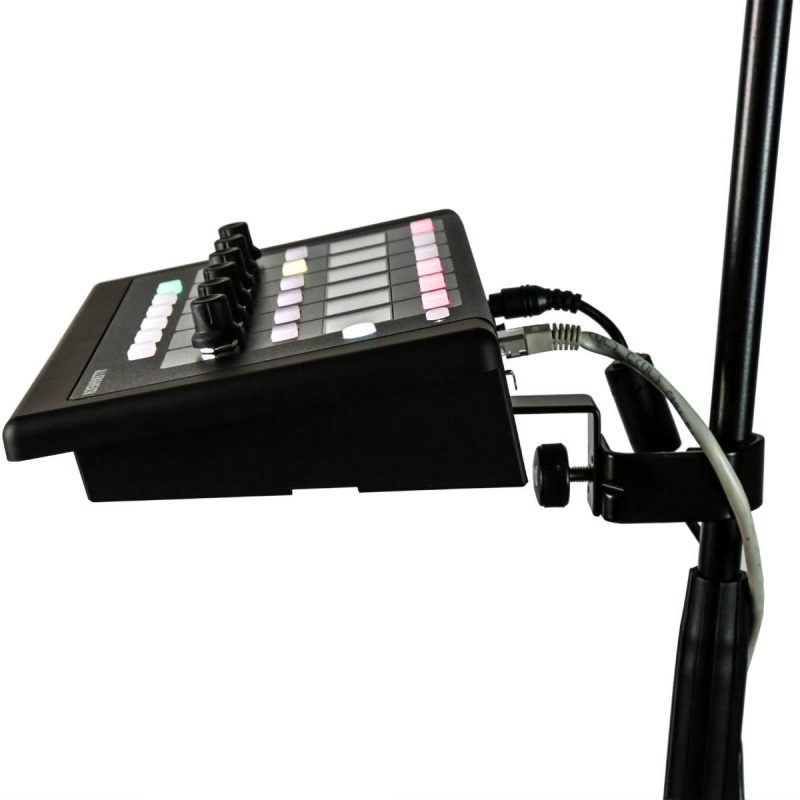

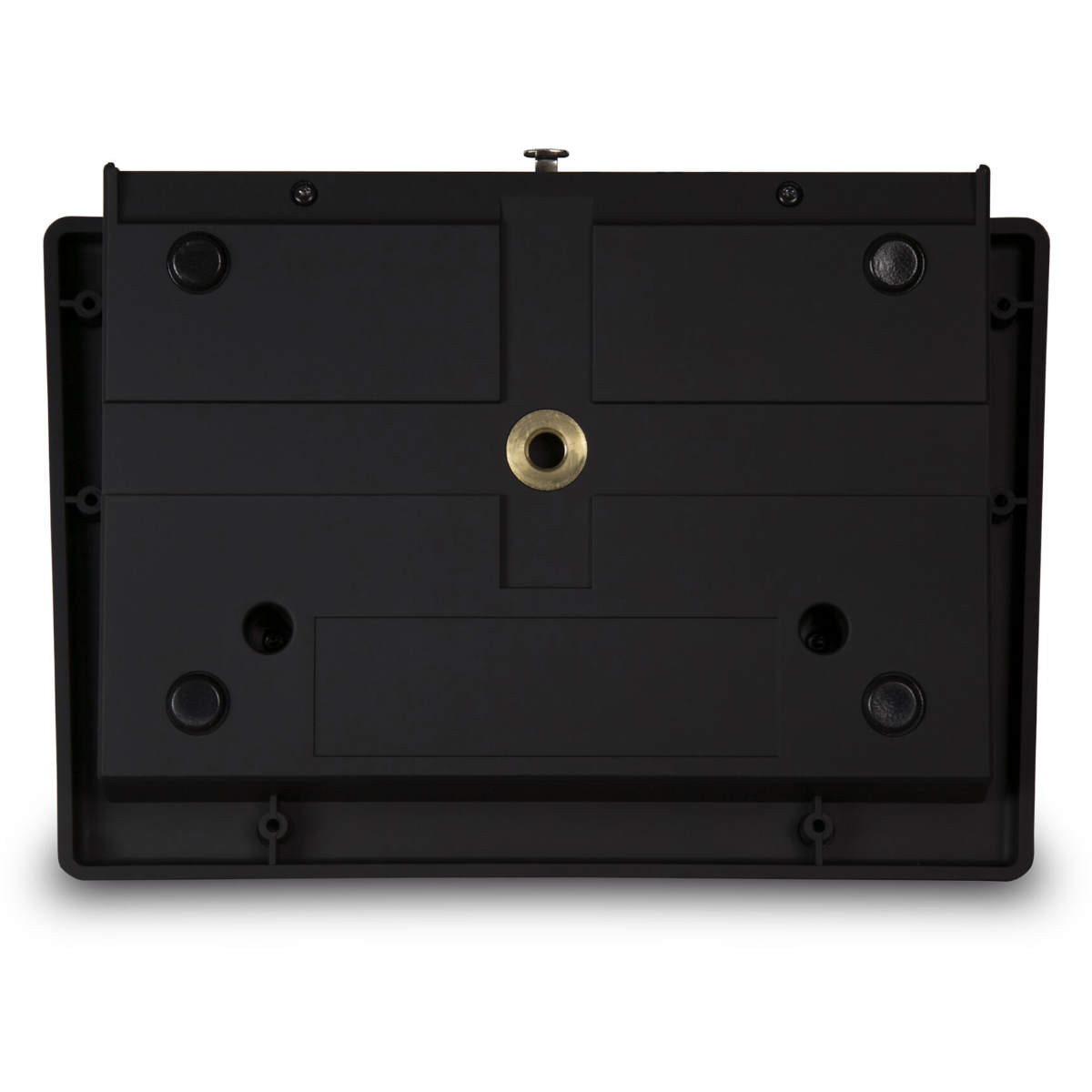

Optional wall mount and mic stand brackets are available so IP6 can fit neatly into all live and install scenarios.

Personal Monitoring

The IP6 can be configured to control the Send levels, Pans and assignments of multiple channels to a specific mix on the dLive/Avantis, e.g. for wireless IEM use, giving musicians the freedom to control their own monitor sound.


Easy for Non-Technical Operators

The installer or system integrator can configure the IP6 to provide the degree of control needed by the day to day operator, for example the levels of microphones and music sources in a room.


IP6 interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.


The IP6’s controls and functions are configured using AHM System Manager, Avantis Director or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.

System Design

Mix and Match

Multiple IP Controllers can be connected to an AHM, dLive or Avantis system to provide control exactly where needed.

  • System
    • Network:  Fast Ethernet 100MBps
    • Ext DC In:  +12V, 360mA
    • PoE:  802.3af (15.4W at source)
    • Max power consumption:  5W
    • Operating Temperature Range:  0 deg C to 35 deg C (32 deg F to 95 deg F)
  • Dimensions and Weights
    • IP6:  227W x 150D x 55H mm
    • IP6 (boxed):  300W x 330D x 170H mm
  • Weights
    • IP6:  1.5kg (3.3lbs)
    • IP6 (boxed):  1.6kg (3.5lbs)
