£389.00 Inc VAT

One Rotary Wallplate Controller

  • Music source selection, level control, or preset recall
  • Dual function rotary encoder
  • Compatible with the dLive product series
  • Up to 32 IP controllers
  • LCD Display
Allen & Heath

Category: SKU: RC/A&H/12

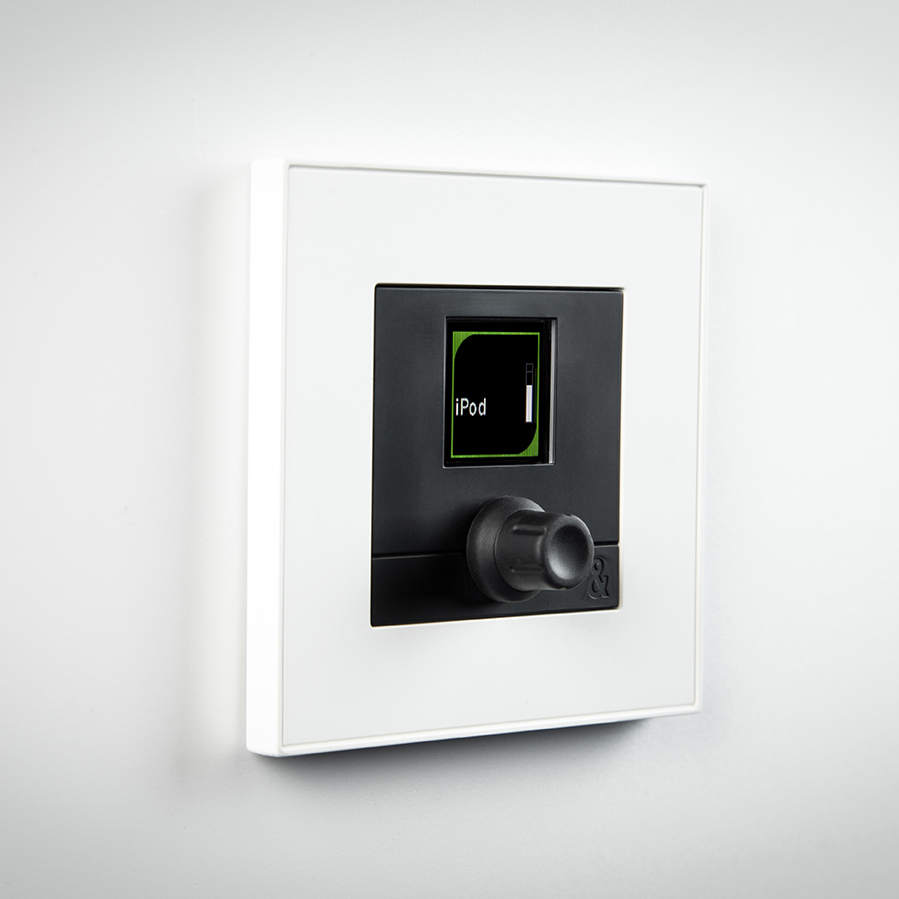

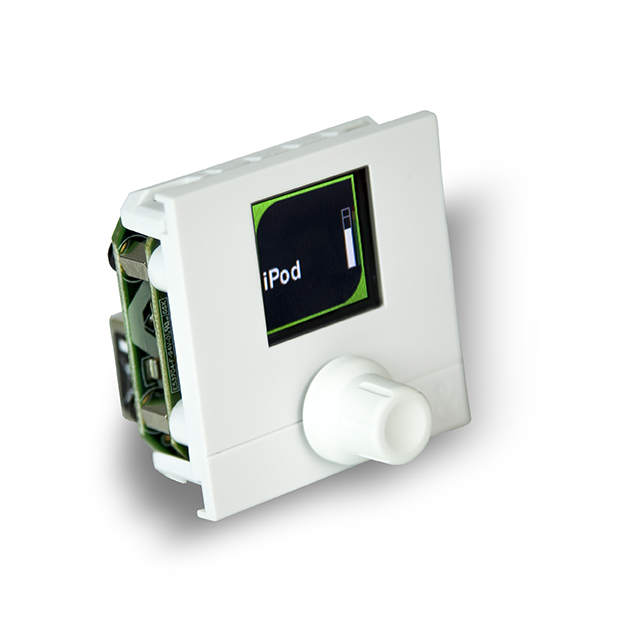

IP1 is a simple yet powerful programmable wallplate, giving the non-technical user convenient, easy control via a single push-and-turn rotary.

Simple to Use

The IP1 is designed with the non-technical user in mind, and can control zone level, source selection or scene/preset recall via a single rotary control.

Visual Feedback

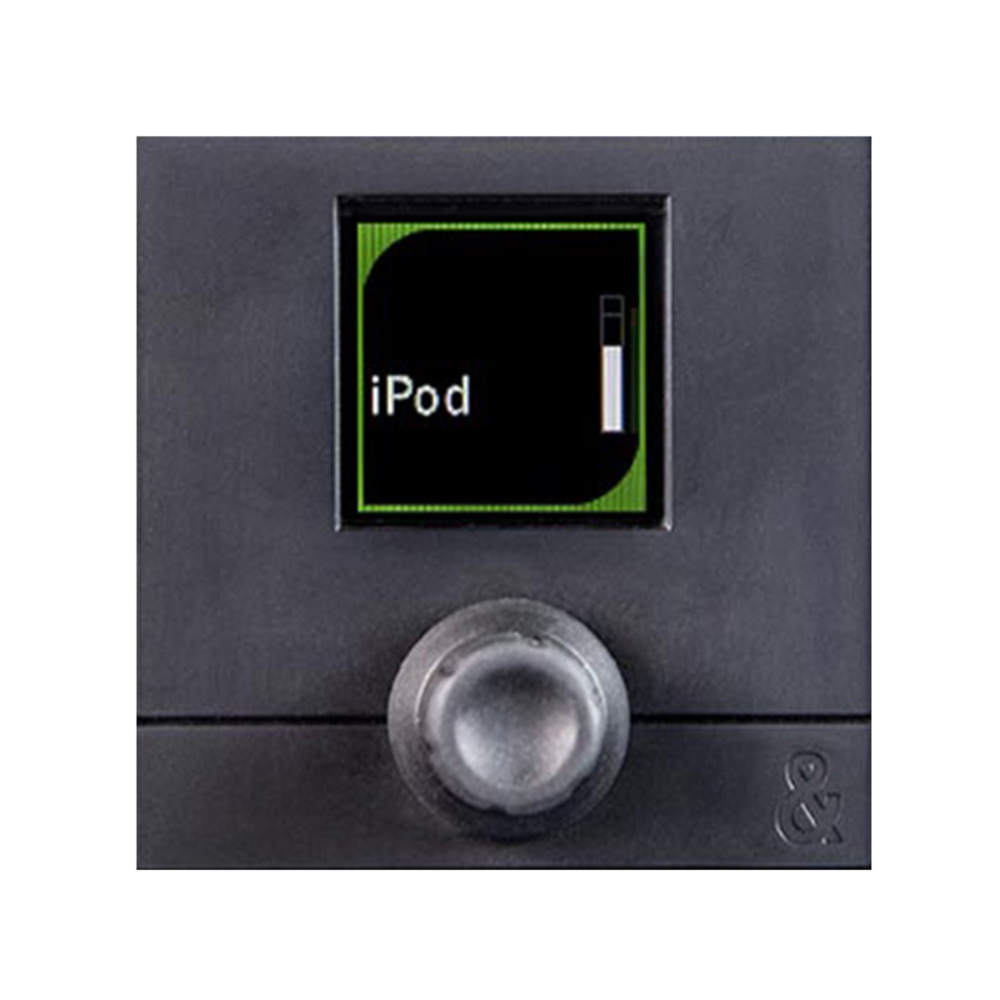

The colour LCD screen gives the user a clear indication of the parameter they are controlling.

Low Maintenance

The IP1 automatically matches firmware with connected devices for easy install and system maintenance.


IP1 interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.


The IP1’s controls and functions are configured using AHM System Manager, Avantis Director or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.

  • System
    • Network Fast Ethernet 100MBps
    • Operating Temperature Range 0°C to 35°C (32°F to 95°F)
    • Power Supply PoE
    • PoE Compatibility 802.3af (15.4W at source) and 802.3at (30W at source)
    • Max Power Consumption 2.5W
  • Dimensions
    • IP1 – EU:  50W x 32D x 50H mm (2″ x 1.3″ x 2″)
    • IP1 – EU (boxed):  131W x 170D x 90H mm (5.2″ x 6,7″ x 3.5″)
  • Weights
    • IP1 – EU:  70g (2.5 ounces)
    • IP1 – EU (boxed):  0,2kg (7 ounce)
