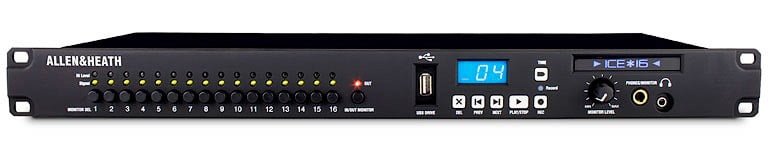

ICE-16 makes multitrack recording easy. Forget all that fiddling around at the back of clunky HD recorders or messing about with soundcard drivers. ICE-16 lets you capture a high quality 16 track recording straight to a USB key or hard drive.
ICE-16 is also a powerful 16×16 audio interface capable of studio quality recording over high-speed USB or FireWire. Whether it’s a live band, a studio session, a conference, a function or a theatre rehearsal, ICE-16 is the ideal choice for recording multichannel audio with or without your computer.
16 analogue Inputs, 16 analogue Outputs
Front USB socket for easy capture to USB storage devices
Hybrid FireWire (IEE1394) / USB 2.0 16×16 audio interface
Industry standard wav file format
Up to 6 hours of 16 channel audio on a 32GB USB stick
Signal Present and Peak LED metering on each channel
Mono headphone bus for Input or Output monitoring
Daisy chain multiple units over FireWire
Familiar transport buttons and intuitive controls
Multiple units can be daisy-chained over the FireWire bus, or kept in sync using the DIN connectors when recording on multiple USB devices, making iCE-16 the perfect companion for both small and large analogue consoles such as our acclaimed ZED, MixWizard and GL mixers. Plug into your desk Direct Outs or use a mix of Groups and Aux sends to save on channels.
Record The USB DRIVE is automatically detected and checked by the system. Starting the recording is as simple as pushing a button. Remove and plug the key into a computer to access or transfer the WAV files to any DAW.
Interface Removing the USB stick or powering up the unit without one enables the USB / FireWire interface. Signals present at the inputs will be sent to the Mac or PC on channels 1-16. WDM/ASIO drivers and USB2.0 class compliance ensure full compatibility with most DAWs, including Logic, Sonar, Cubase and Pro Tools.
Play Fancy a ‘virtual soundcheck’ or just need to play cues during a live gig? Tracks can be played back directly from the USB drive and full multichannel audio can be sent from the computer to the ICE-16 analogue Outputs.
Allen & Heath Press Release, Plasa 2012
…A 16 In/16 Out audio interface allowing performers and audio engineers to easily capture high quality multi-track recordings direct to a USB drive or interface to a computer.
Fitted into a compact 1U rack design, ICE-16 is capable of studio quality interfacing, converting and bi-directional streaming of 16 channels over high-speed USB or FireWire at 24 bit, 96kHz resolution. Alternatively, 16 channels can be simultaneously recorded straight to a USB hard drive or memory stick at up to 24bit 48kHz resolution .wav file. The ICE-16 is expandable, so you can link units together and synchronize recording of many channels.
ICE-16 connects to any audio mixer or analogue source using ¼” jacks for the inputs and RCA phono connectors for the outputs. Signal and peak metering is provided for each channel and can be switched to show input or output. Headphone monitoring is also included and switches on each channel enable checking of individual or multiple channels. ASIO drivers and Core Audio compliance ensure full compatibility with all the main DAWs, including Logic, Sonar, Cubase and Pro Tools.
“I like making things simple and the ICE-16 makes life easy in many ways. Recording multitrack at a live show no longer requires booting up a laptop and configuring a session – just plug in, turn on and press record. ICE-16 is also ideal for connecting audio to your DAW in the studio, or for expanding your existing system to add channels,” comments R&D designer, Mike Griffin.
Download the product brochure from the Allen & Heath website here
