Allen & Heath dLive S-Class S7000

Request Quote

Available as Direct Supply.
Or we can Install, Set-up, Configure or Train – Just Ask!

  • 36 faders
  • Fully assignable layout – 216 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • Dual 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
Allen & Heath
Category: SKU: MX/UNP/A&H22

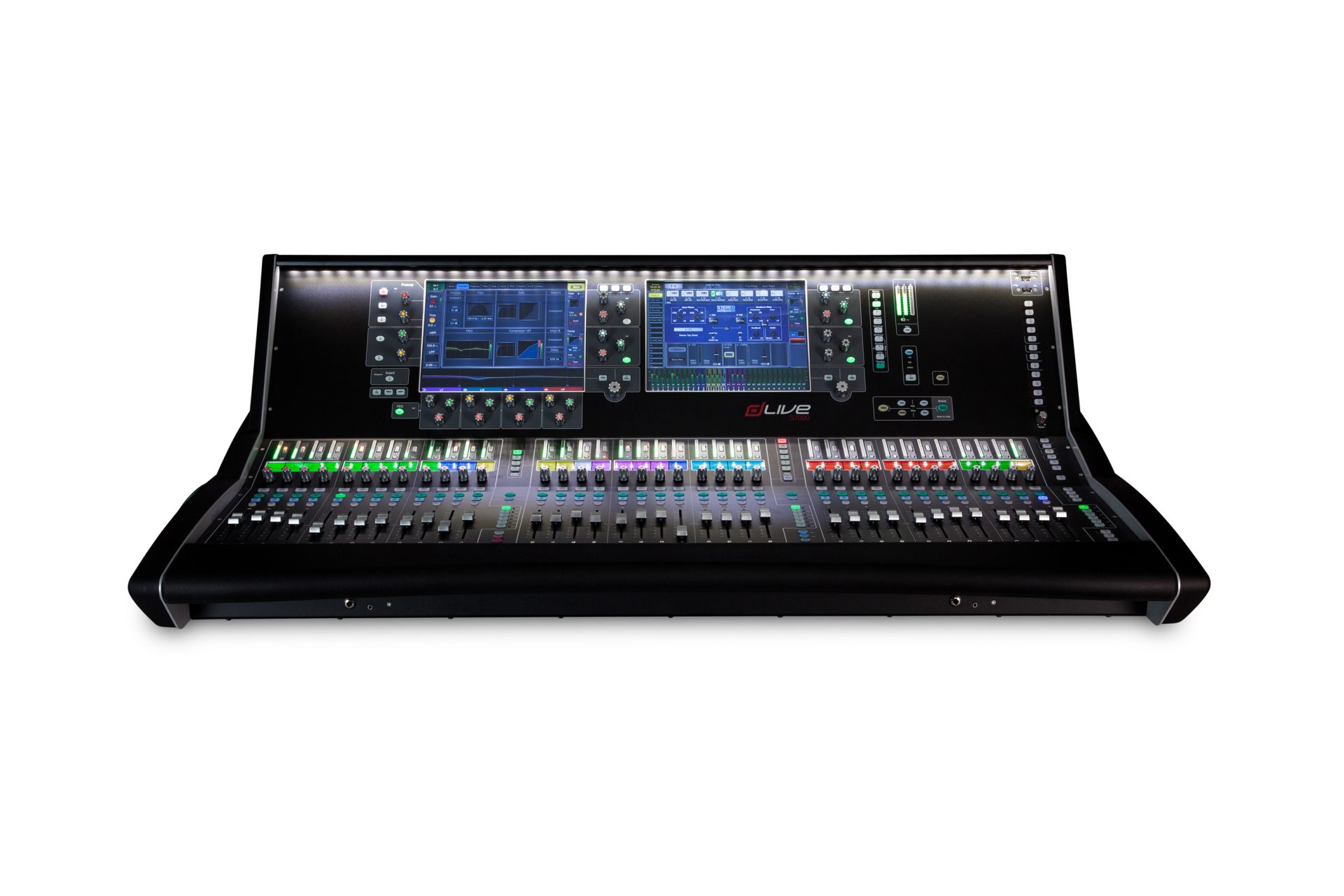

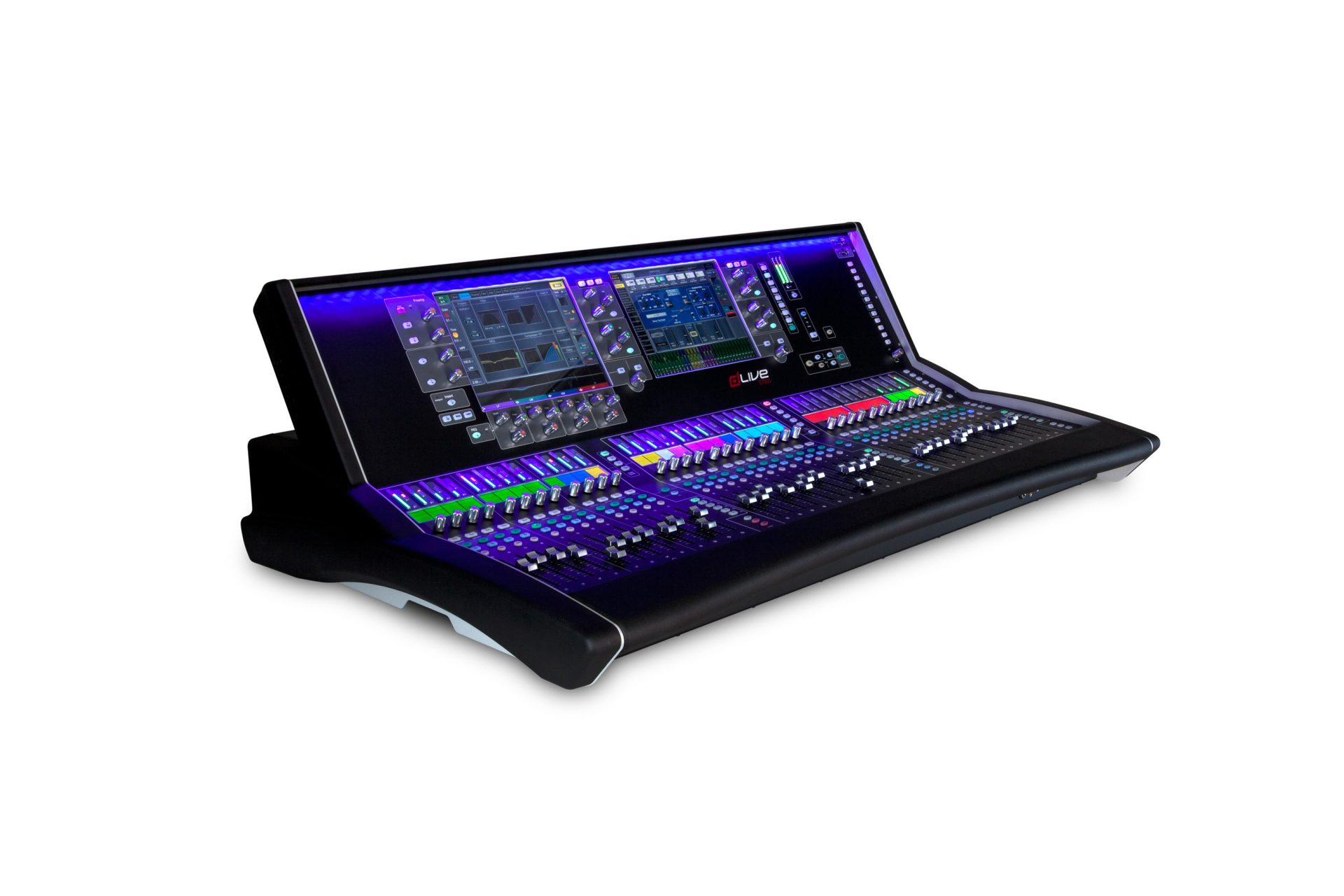

The S7000 is the largest control Surface in the dLive family, with a whopping 216 assignable fader strips. It features 36 faders over 6 layers, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Top-notch Digital Mixing w/Touchscreen Simplicity

Harnessing the full potential of digital mixing, the Allen & Heath dLive S7000 control surface rejects the typical faux-analogue console experience in favour of intuitive pinch, swipe, drag, and drop gestures. Dual 12″ touchscreens, 36 faders, and six assignable one-knob/one-function rotary controls provide you with at-a-glance visual feedback and immediate tactile command over your mix. Using the S7000 is a piece of cake, thanks to easily assignable inputs, clearly named virtual scribble strips, and customizable SoftKeys. Built from high-grade metal and packed with dual redundant, hot-swappable power supply capability, the Allen & Heath dLive S7000 control surface performs reliably under the most demanding of circumstances.

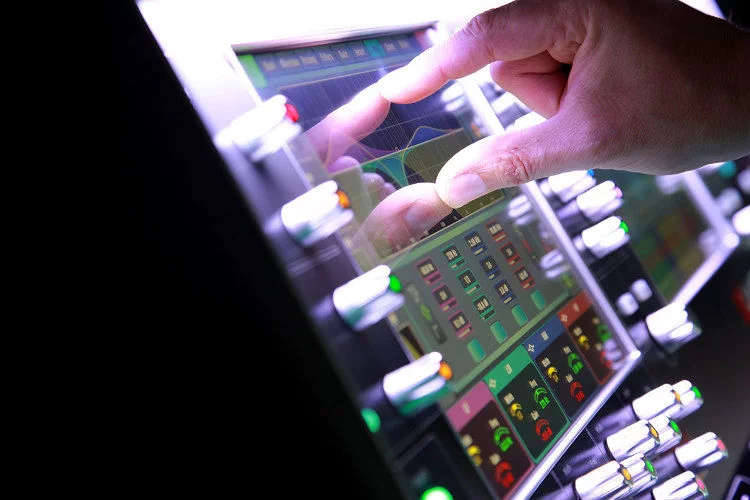

Harmony user interface yields incredible tactile control

The Allen & Heath dLive S7000 isn’t a digital mixer hiding under an analogue-looking surface; it unleashes the full potential of digital, providing you with levels of control that are impossible in an all-analogue world. If you’ve used a smartphone or tablet, you’ll find the S7000’s pinch, swipe, drag, and drop gestures familiar and incredibly easy to grasp. A dedicated multimode EQ view makes sound shaping as easy as wiggling your fingers. Configurable widget areas provide you with quick access to scenes, meters, effects, and other customizable controls. One-knob/one-function rotary controls and assignable SoftKeys give you immediate control over processing functions.

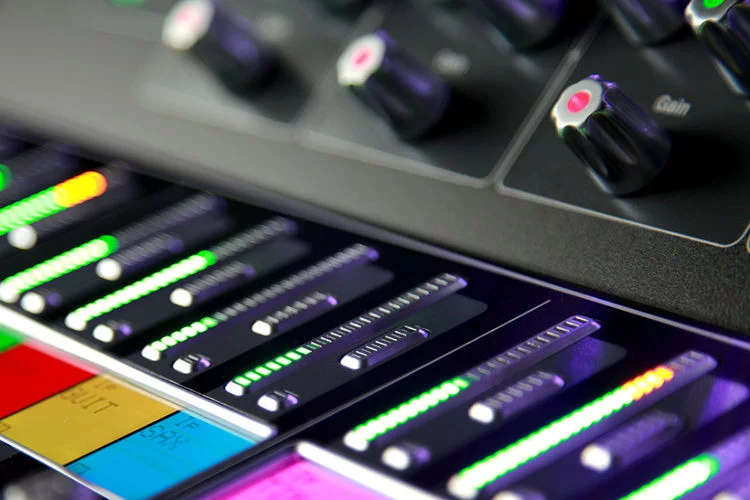

Incredible at-a-glance visual feedback and transparent workflow

Using the Allen & Heath dLive S7000 is simple. A quick glance at this console tells you everything you need to know. Despite the incredible arsenal of functions available, you won’t find yourself lost in complex menus. You don’t need to adapt to a different way of working to mix on the S7000. Its layout is completely customizable, so you can create a mixing interface that matches the way you like to work. Every input or mix can be assigned to every bank and/or layer. Virtual scribble strips ensure that all inputs and mixes are clearly named and colour coded. And the S7000’s screens remain clearly visible in sunny outdoor settings.

Incredible at-a-glance visual feedback and transparent workflow

Using the Allen & Heath dLive S7000 is simple. A quick glance at this console tells you everything you need to know. Despite the incredible arsenal of functions available, you won’t find yourself lost in complex menus. You don’t need to adapt to a different way of working to mix on the S7000. Its layout is completely customizable, so you can create a mixing interface that matches the way you like to work. Every input or mix can be assigned to every bank and/or layer. Virtual scribble strips ensure that all inputs and mixes are clearly named and colour coded. And the S7000’s screens remain clearly visible in sunny outdoor settings.

  • 36 faders
  • Fully assignable layout – 216 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • Dual 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
  • 3 pages of 6 assignable rotaries per screen
  • 26 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Connection hub
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Wordclock BNC I/O
  • Video output
  • Dual redundant, hot-swappable power supply
  • 3 Year Warranty
  • Type:DLive Control Surface
  • Channels:36 channel faders with 6 layers
  • Inputs – Mic Preamps:8 x XLR (mic/line)
  • Phantom Power:8 channels
  • Outputs – Main:8 x XLR
  • Outputs – Other:2 x 1/4″ (headphones), 2 x 1/8″ (headphones)
  • Inputs – Digital:2 x XLR (AES3)
  • Outputs – Digital:3 x XLR (AES3)
  • Busses/Groups:64 bus internal architecture (including all groups, aux, matrix, mains, effects)
  • Data I/O:2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports
  • USB:3 x USB Type A
  • Computer Connectivity:Ethernet, USB (2 x 2)
  • I/O Expansion Slots:2 x card slots (128×128 channels each, iLive/GLD option cards)
  • Headphones:1 x 1/4″, 1 x 1/8″
  • Word Clock:In, Out
  • Faders:36 x motorized faders
  • EQ Bands:4-band parametric EQ
  • Effects:16 RackFX
  • Height:16.3″
  • Depth:28.7″
  • Width:34.3″
  • Weight:62 lbs.
