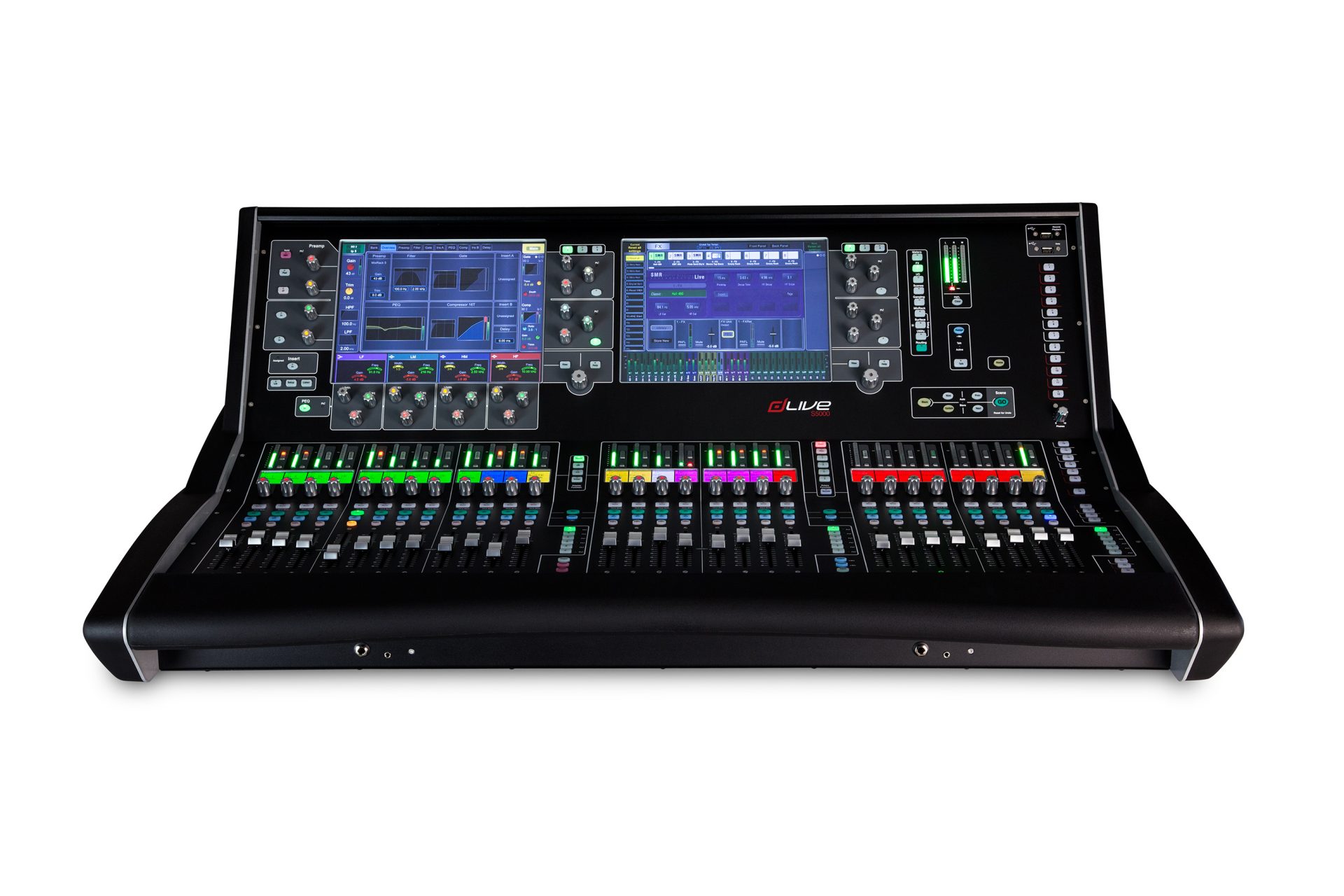

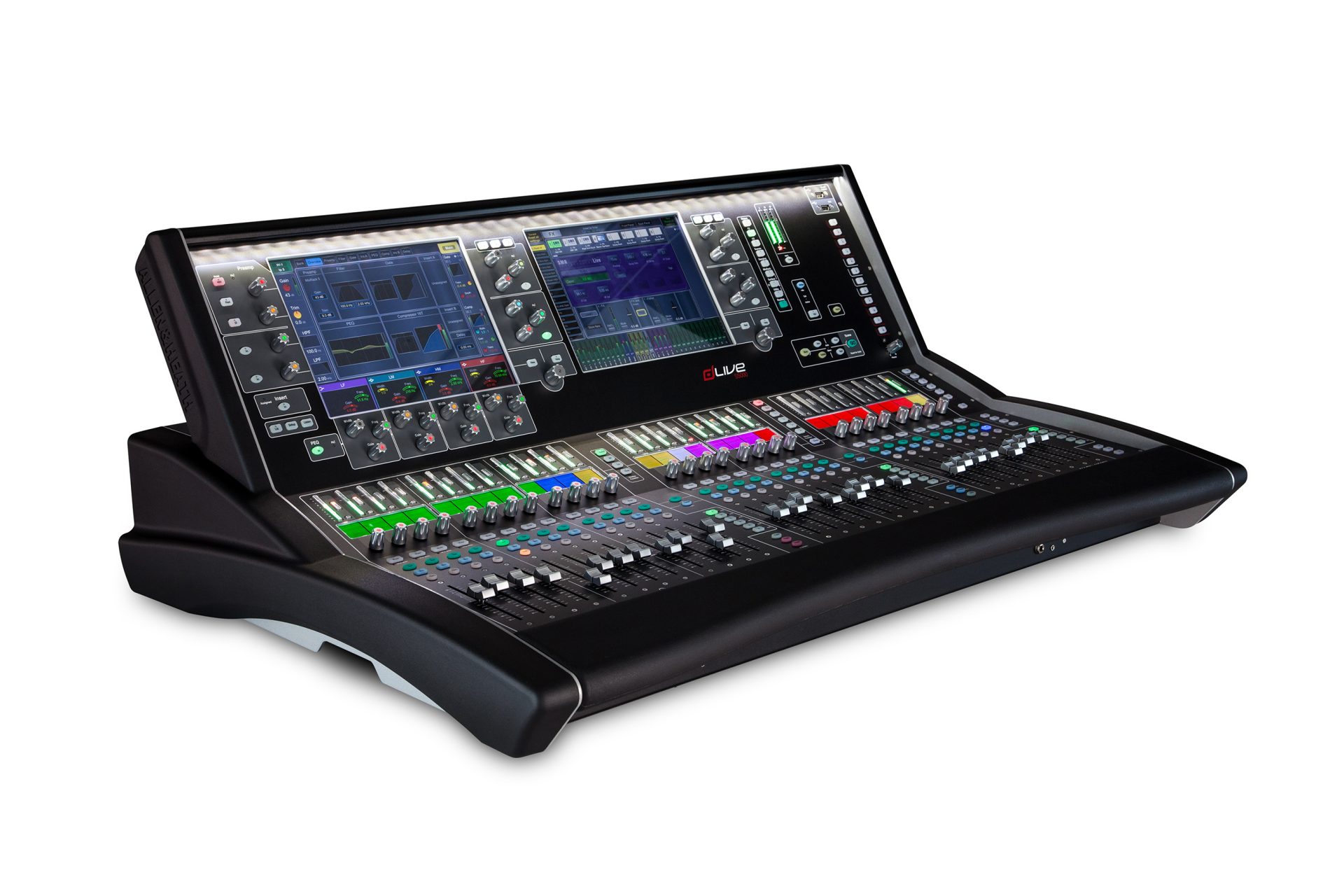

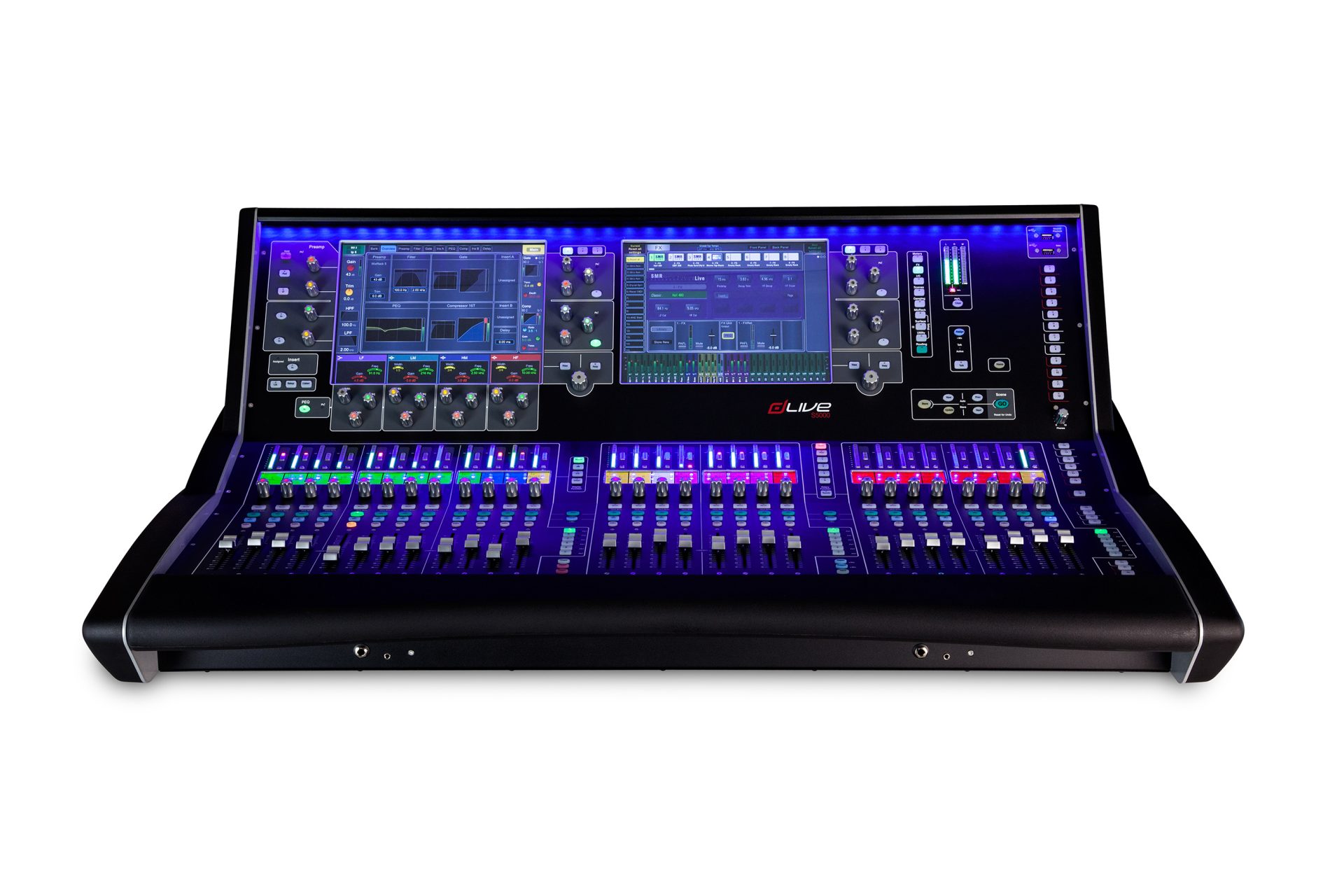

Allen & Heath dLive S-Class S5000

Available as Direct Supply.
Or we can Install, Set-up, Configure or Train – Just Ask!

28 faders
Fully assignable layout – 168 fader strips
Harmony UI integrates screen and wrap-around controls
Dual 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view

Category: Digital MixersSKU: MX/UNP/A&H21

Design for Live

There is something inherently thrilling about live sound. The immediacy of the direct interaction between the performers and the audience, the potential for anything to happen, the need to get it right first time – this is what makes live mixing so addictive. As the demands for more and more I/O and increasingly complex systems grow, there’s a danger of concentrating on the technology rather than the performance. Our design goal for dLive S Class was to create the ultimate mixing system, with plenty of processing and flexibility to handle the most demanding live scenarios, while at the same time giving the engineer intuitive tools to comfortably keep all that power at their fingertips, freeing them to focus on the live mixing experience.

Top-notch Digital Mixing w/Touchscreen Simplicity

Harnessing the full potential of digital mixing, the Allen & Heath dLive S5000 control surface rejects the typical faux-analog console experience in favor of intuitive pinch, swipe, drag, and drop gestures. Dual 12″ touchscreens, 28 faders, and six assignable one-knob/one-function rotary controls provide you with at-a-glance visual feedback and immediate tactile command over your mix. Using the S5000 is a piece of cake, thanks to easily assignable inputs, clearly named virtual scribble strips, and customizable SoftKeys. Built from high-grade metal and packed with dual redundant, hot-swappable power supply capability, the Allen & Heath dLive S5000 control surface performs reliably under the most demanding of circumstances.

Harmony user interface yields incredible tactile control

The Allen & Heath dLive S5000 isn’t a digital mixer hiding under an analog-looking surface; it unleashes the full potential of digital, providing you with levels of control that are impossible in an all-analog world. If you’ve used a smartphone or tablet, you’ll find the S5000’s pinch, swipe, drag, and drop gestures familiar and incredibly easy to grasp. A dedicated multimode EQ view makes sound shaping as easy as wiggling your fingers. Configurable widget areas provide you with quick access to scenes, meters, effects, and other customizable controls. One-knob/one-function rotary controls and assignable SoftKeys give you immediate control over processing functions.

Incredible at-a-glance visual feedback and transparent workflow

Using the Allen & Heath dLive S5000 is simple. A quick glance at this console tells you everything you need to know. Despite the incredible arsenal of functions available, you won’t find yourself lost in complex menus. You don’t need to adapt to a different way of working to mix on the S5000. Its layout is completely customizable, so you can create a mixing interface that matches the way you like to work. Every input or mix can be assigned to every bank and/or layer. Virtual scribble strips ensure that all inputs and mixes are clearly named and color coded. And the S5000’s screens remain clearly visible in sunny outdoor settings.

Durable high-grade metal construction

The Allen & Heath dLive S5000 is built like a tank. In fact, Allen & Heath’s lead mechanical designer used to be a tank commander. The S5000 boasts the optimal balance between strength and weight, with higher-grade metal on the sides and folded steel at key points to safeguard it against the rigors of the road. A dual redundant hot-swappable power supply capability offers amazing reliability. Every audio connection is also dual-redundant. With the S5000, you’re guaranteed worry-free operation, by virtue of its rugged design.

28 faders
Fully assignable layout – 168 fader strips
Harmony UI integrates screen and wrap-around controls
Dual 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries per screen
26 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility

USB stereo recording and playback
8 XLR mic/line in, 8 XLR line out
2 digital st AES3 in, 3 digital st AES3 out

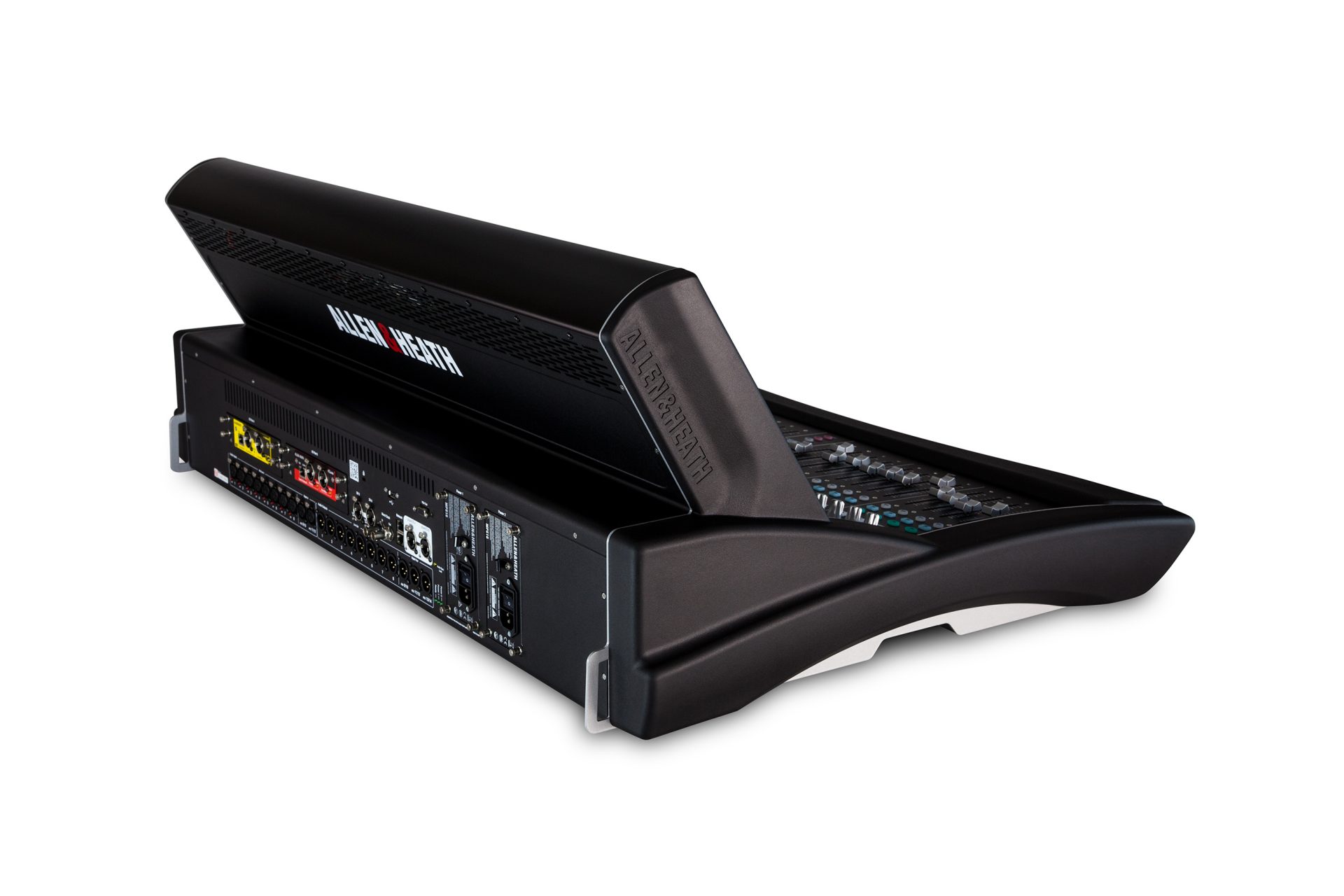

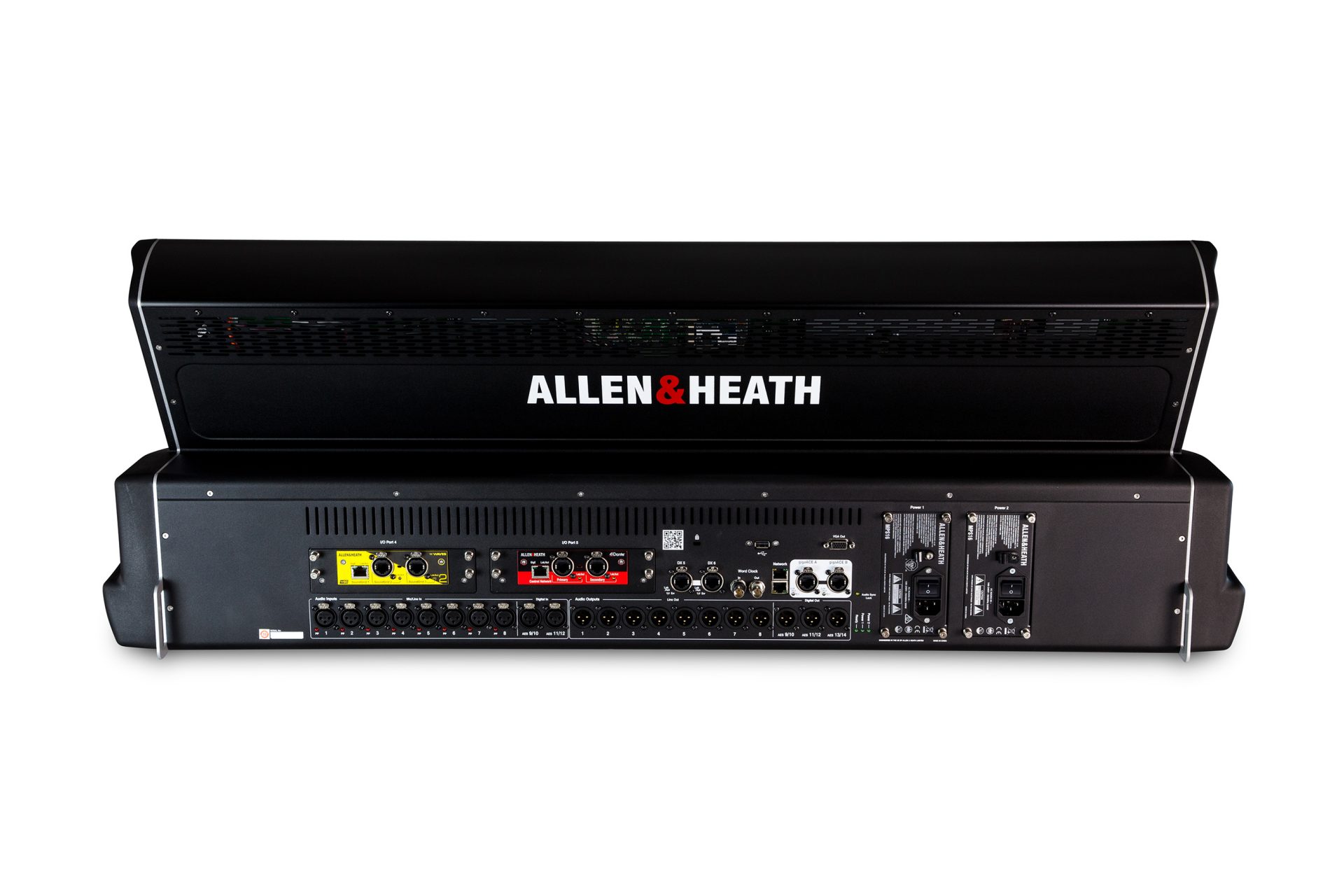

Connection hub
Dual redundant GigaACE gigabit link to MixRack
1x redundant DX link for I/O expansion
2x I/O Ports – 128 ch 96 kHz each
2x Network ports
Wordclock BNC I/O
Video output
Dual redundant, hot swappable power supply
3 Year Warranty

Type:Digital Console
Channels:28 channel faders with 6 layers
Inputs – Mic Preamps:8 x XLR
Phantom Power:8
Outputs – Direct:8 x XLR (line level)
Outputs – Other:2 x 1/4″ (headphones), 2 x 1/8″ (headphones)
Inputs – Digital:2 x XLR (AES3)
Outputs – Digital:3 x XLR (AES3)
Busses/Groups:64 bus internal architecture (including all groups, aux, matrix, mains, effects)
Data I/O:2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports
USB:3 x USB Type A
Computer Connectivity:Ethernet, USB (2 x 2)
I/O Expansion Slots:2 x card slots (128×128 channels each, iLive/GLD option cards)
Word Clock:In, Out
Faders:20 x motorized faders
EQ Bands:4-band parametric EQ
Effects:16 RackFX
Height:16.3″
Depth:28.7″
Width:34.3″
Weight:62 lbs.
