Shock mount for lectern gooseneck mics
Use with AKG GN15E/30E/50E and 5-pin versions
Provides attenuation of structure-borne noise by 12 dB
Rugged design & Fast set up
requires a mounting hole of 2.0 inches (50 mm)

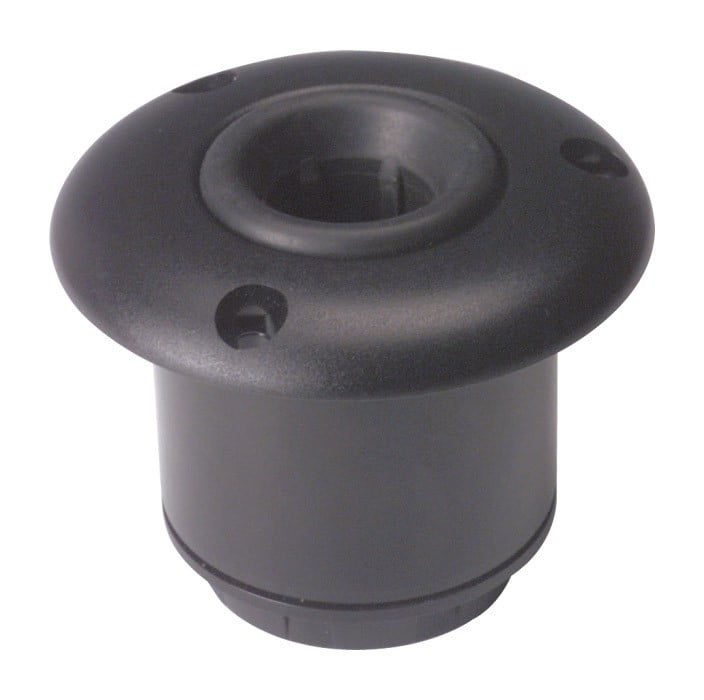

The AKG H 500 Elastic shockmount for gooseneck modules GN15E/30E/50E and 5-pin versions. Gooseneck shock mount that provides attenuation of structure-borne noise by 12 dB.

The H 500 shock mount is designed for permanent installation of E and ES version goosenck modules from the Discreet Acoustics Modular series. The H500 mount provides attenuation of structure-borne noise by 12 dB. The H 500 shock mount consists of a durable plastic shell and flexible inner rubber boot. It allows for quick and easy set up and break down of a sound system. The H 500 requires a mounting hole of 2.0 inches (50 mm).

The main features of the AKG H 500 include:
• Gooseneck shock mount that provides attenuation of structure-borne noise by 12 dB
• Isolation from physical vibration
• Rugged design
• Fast set up
• Economical
• Compatible with AKG E and ES Gooseneck Modules from the Discreet Acoustics Modular Series

DM Says
“These shock mounts are recommended to help reduce vibration and rumbles from your lectern being transmitted to the mic. They also offer a smart, tidy way of mounting a gooseneck mic and offer the option to remove the mic arm for storage when not in use. Remember – this shock mount is for gooseneck mic arms with a built in 3 pin (or 5 pin) standard XLR connector on the base, not for gooseneck mics with a hard wired trailing cable”

Specifications
screw holes qty 3 (even spacing 120 degrees each), 30.2mm from centre, 4.4mm diameter
outer diameter 73.9mm
depth 59.2mm
centre hole 19.8mm diameter (to receive XLR connector on Gooseneck)
drill hole size 50.8mm minimum

Note – securing screws not included

Brand

AKG
