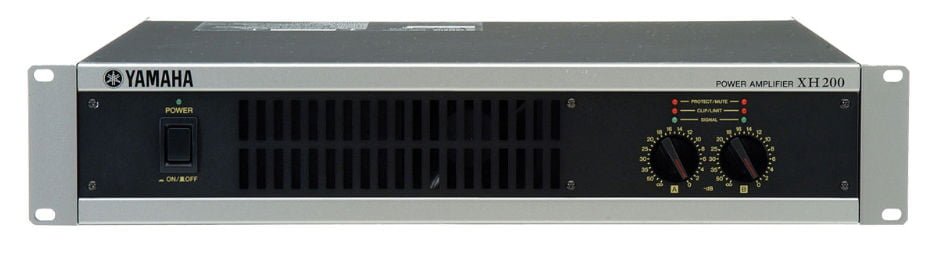

Compact, Lightweight 200W 200W Distribution Power Amp for Installed Systems
The XH200 is the ideal distribution power amp for use with numerous high-impedance speakers in theatre, hall, and conference facility installations. In addition to being remarkably lightweight, the XH200 is a compact 2U size that will fit comfortably in just about any installation. This combination of high power output and small size has been realized through the use of an advanced switching power supply. The XH200 also features a monitor/remote connector that allows remote status monitoring and control from an external device.
Two 200W Channels In a 2U Power Amp
The XH200 is a two-channel high-output power amp that can be switched between 70V and 100V line operation (200W x 2 channels into 24ohms-70V / 48ohms-100V). This high-impedance power amp is designed for installations in which multiple speakers are driven in parallel. A high-efficiency switching power supply means that the XH200 is significantly smaller and lighter than comparable amplifiers: it fits comfortably in a 2U rack space and weighs only 10 kg. Monitor/Remote and Other Important Functions
A rear-panel MONITOR/REMOTE connector allows the unit to be controlled or monitored from a remote location. The front panel provides dB-calibrated detented attenuators for each channel, and a comprehensive range of protection circuitry and indicators ensures operational stability and safety under the widest possible range of conditions. Euroblock Input/Output Connectors, and Barrier Strip Output Connectors
Euroblock input connectors and barrier-strip output connectors allow simple, secure input and output connection. High pass filters with switchable 40 Hz or 80 Hz roll-off provide an extra margin of system flexibility.
