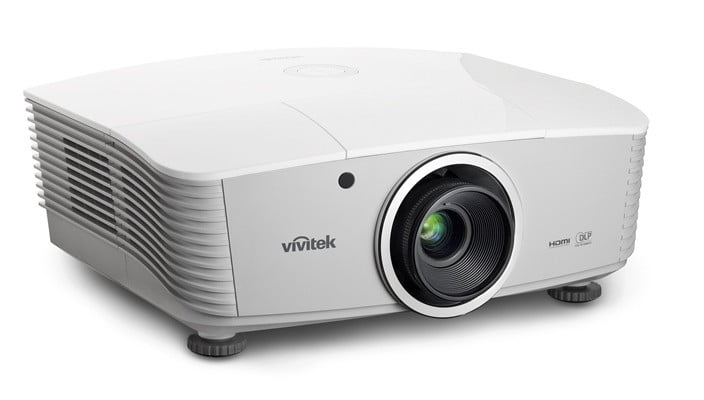

XGA High Brightness Installation Projector
- XGA resolution (1024 x 768)
- 6000 ANSI Lumens and 2000:1 contrast ratio
- DLP® and BrilliantColor™ technologies for detailed image quality
- Centered lens for easy planning &installation
- Three Interchangeable lens options for greater installation flexibility
Please note, This product is for body only. Lens is not included. Please call for options.
Combine high performance and rich functionality with simple handling.
The D5010 offers a range of features that makes it the ideal projector choice for the professional installation market. In addition to a high brightness of 6000 ANSI lumens, the XGA image resolution delivers excellent image quality for video, presentations, and display of charts and graphs.
With the installer in mind the D5010 features horizontal and vertical lens shift as well as a centered lens for easy installation and maintenance. The projector has three interchangeable lens options for flexible positioning with regard to varying screen sizes or projection distance requirements and a comprehensive range of connectivity options.
DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready
A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
DVI
A wideband digital video interface that can carry uncompressed high-definition video and control signals in the same cable.
| Native Resolution | XGA (1024 x 768) |
| Brightness | 6000 ANSI Lumens |
| Contrast Ratio | 2,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 4:3 |
| Lamp Life and Type | 1,500/3,500 hours (Normal/Eco. Mode) 370W / 280W |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.7” DMD |
| Throw Ratio | 1.6 – 2.0:1 (Std lens) |
| Image Size (Diagonal) | 37″ – 215″ (Std lens) |
| Projection Distance | 1.5 – 7 m |
| Projection Lens | F = 2.46 – 2.56 f = 22.82 – 28.49 mm |
| Zoom Ratio | 1.25x (Std lens) |
| Lens Shift ( Based on Full Image Height) | Vertical: -10% / 50%, Horizontal: /- 5% |
| Offset ( Based on Full Image Height) | Manual Lens Shift |
| Keystone Correction | Vertical /- 40° |
| Speakers | 3W x 2 (Stereo) |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |

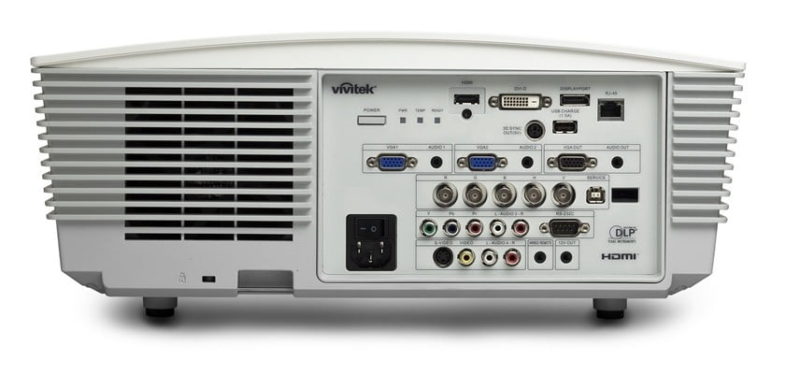

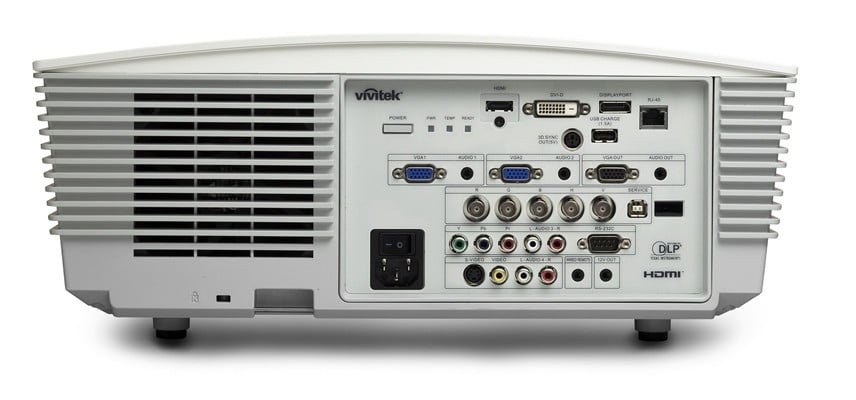

| I/O Connection Ports | VGA-In (15pin D-Sub) (2), HDMI, Display Port, DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr RCA x 3), S-Video, Composite Video, Audio-In (RCA) (2), Audio-In (Mini-Jack) (2), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, IP Telnet Capable Over RJ-45, 12v Trigger, RS-232, USB A (1 (5V-1.5A)), Remote Jack(wire remote) |
| Dimensions (W x D x H) | 432 x 345 x 181 mm |
| Weight | 8,6 kg |
| Noise Level | 42dB/37dB (Normal/Eco. Mode) |
| Power | Supply: AC 100 – 240V Consumption:450W (Normal Mode), 340W (Eco. Mode), Standby <0.5W |
| 3D Ready(DLP link, PC Video) | Yes |
| Spare Lamp P/N | 5811118452-SVV (Non-Tilt Lamp), 5811118482-SVV (Tilt Lamp) |
| Remote Control P/N | 5041825300 |
| Standard Accessories | VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories | Spare Lamp P/N: 5811118452-SVV (Non-Tilt Lamp), 5811118482-SVV (Tilt Lamp) , Remote Control P/N: 5041825300 |
| Warranty | Large Venue Warranty: 5 years projector / 1 year on lamp or 1000 hours whichever comes first |
| UPC Code | 814964 338853 |
