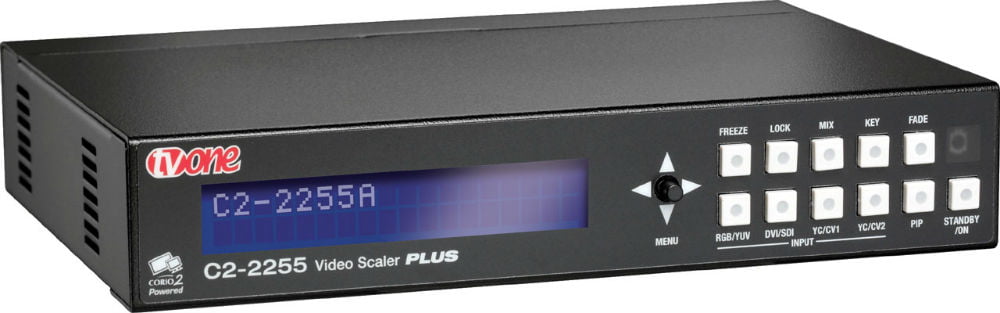

TV One C2-2255A


HD/SD to DVI/PC Conversion
Digital Inputs: SD/HD-SDI, DVI-D
Analog Inputs: YUV/YPbPr, 2xCV, 2xYC
Digital Outputs: DVI-I
Analog Outputs: DVI-I (RGB/YPbPr/YUV)
Analog: PC to 2048×2048, HDTV to 1080p/60
DVI: PC to 1920×1200, HDTV to 1080p/60
Motion Compensation & 3:2 Pulldown
Temporal Interpolation & Diagonal Interpolation
Automatic Incoming Resolution Detection
4:4:4 Full bandwidth Chroma Sampling
Video signal parameter adjustments
Integral 4×1 Stereo Audio Routing Switcher
RS-232 and IP Interface
Windows Control Panel
Variable Image Zoom to 10X and Shrink to 10%
Genlock With Subcarrier Phase Adjustment
PIP, Chroma/Lumakey, Edge Blending (C2-2255A)
Optional Single/Dual Rackmount Kit
Optional Input Expansion with S2 Switchers

TV One
Tag: Category: SKU: OB/AV/SW/TVO02FP

C2-2205A HD/SD to DVI-I Converter is based on TVOne’s exclusive CORIO®2 technology and provides high quality conversion from SD/HD-SDI, DVI, YUV, YPbPr, YC or Composite Video to DVI and analog RGB/YPbPr, scaled to virtually any resolution or refresh rate. NTSC, PAL, PAL-M, PAL-N, SECAM standards are supported.

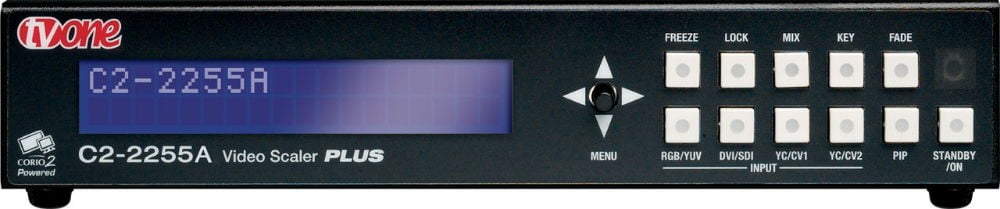

All settings are stored in non-volatile memory and are retained even when power is switched off. Ten user defined presets are also available to customize settings for various applications. All the functions can be controlled via the front panel Push Buttons, an Infrared Remote Control Unit or via an RS-232 or IP connection. Windows Control Panel software is provided and most third party control systems interface directly with the entire C2 range of products. A front panel LCD makes setup easy. The unit is housed in a desktop case and an optional rackmount kit holds one or two units.

Variable Zoom to 10X enlarges any part of the computer screen to fill the entire video screen and position controls allow movement to any area desired. Variable Shrink to as little as 10% allows fitting the image onto most displays. The hig sampling rate insures crisp, clear images, while full bandwidth chroma sampling insures faithfully reproduced, high resolution colors. Motion compensation, diagonal interpolation and a 3:2 Pulldown feature for NTSC greatly improve the image quality. Temporal interpolation greatly improves frame rate conversion by analyzing and merging successive frames. Pixel Level Motion Adaptive Diagonal Interpolation insures high quality de-interlacing of PAL and NTSC signals.

C2-2255A Advanced Features – In addition to all standard C2-2205A features. The Key Mode allows computer graphics to be keyed over an external Composite or YC signal. The keyed image may be faded in and out. Due to the 4:4:4 sampling format, precise keying at the pixel level can be achieved. The Mix Mode permits Seamless Cut, Fade or Wipe transitions between input sources. The PIP Mode allows either of the computer inputs to be inset in a window over the other inputs.The PIP window may be placed anywhere on the screen. The Edge Blending feature allows feathering any or all of the edges; multiple images can be aligned vertically, horizontally, or both to create unusual displays. Using multiple units, any number of images can be blended. The Genlock feature insures precise synchronization of the incoming signals.

Input Expansion is possible by using the optional S2 Series Input Expansion Modules for SD/HD-SDI, DVI, RGB, YPbPr, YUV, Composite or YC. These units link to C2-2205A/2255A unit via an OPTIONS Interconnect Cable and become an integral part of the main unit from a control and operational standpoint. The routing of these additional inputs is controlled directly from the control system of the C2-2205A/2255A and multiple different S2 models may be simultaneously connected.

Basic Integral Stereo Audio switching is provided by an integral 4×1 audio routing switcher. The four impedance-independent unbalanced inputs, via a rear panel terminal block, follow the video input selection.

Advanced Stereo Audio is available via the optional S2-106AD Input Expansion Switcher, providing six differential audio inputs, which can be used for low impedance balanced or high impedance unbalanced sources. The user controls audio level, audio sampling frequencies and up to 999ms of adjustable audio delay independently for each input. The unit has numerous choices for audio I/O connectors, including a terminal block. The S2-106AD connects to the C2-2205A/2255A via the OPTIONS interconnect cable and is then fully integrated into the control system of the host unit.

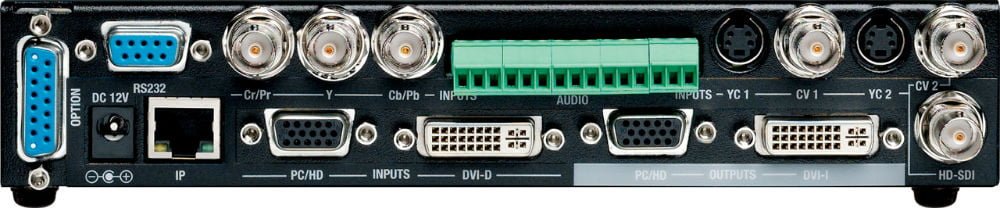

Video Inputs
Television Standards NTSC, PAL, PAL-M, PAL-N, SECAM
Composite Video 2x via BNC
YC (S-Video) 2x via 4-Pin Mini-DIN
YUV /YPbPr 1x via 3-BNC
SD/HD-SDI 1x via BNC
Computer Inputs
Signal Type 1x Analog via HD-15 Female
1x DVI-D via DVI-I Connector
Sync TTL Level, 10KĂ, Pos or Neg
Termination 75Ă
R-G-B Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
PC Resolutions Any up to 2048×2048
HDTV Resolutions Any up to 1080p
Max Horiz Scan Rate 150KHz
Computer Compatibility PC, Macintosh, Workstations
Computer Outputs
Signal Type 1x Analog via HD-15 Connector
1x DVI-I via DVI-I Connector
R-G-B Level 0.7 Vp-p
Analog Signals PC to 2048×2048,HD to 1080p/60
DVI Signals PC to 1920×1200,HD to 1080p/60
Vertical Refresh Rate Any to 250Hz
Size and Position Automatic via AutoSet or Manual
Image Size User-Definable Presets
Image Freeze One Video Frame
Settings Memory Non-Volatile
Zoom Range Variable to 10X Zoom
Shrink Range Variable to 10%
Image Mirroring Horizontal and/or Vertical
Horizontal Filtering Full Digital
Conversion Technology Proprietary ¡V CORIOR2
Frame Rate Conversion Temporal
Color Resolution 24-bit (16.8 Million Colors)
Sampling Rate 162MHz
Digital Sampling 24-bit, 4:4:4 format
Firmware Memory Flash, Upgradeable via RS-232
Video Decoder 9-bit Digital
Pixel-level Motion Adaptive,
Diagonal Interpolation
Comb Filter Decoding Adaptive
Film Mode (NTSC) 3:2 Pulldown
Video Adjustments
CV/YC: Contrast, Brightness,
Saturation, Hue (NTSC).
Analog RGB/YPbPr levels
Audio Input/Output (Note 1)
Inputs 4x Unbalanced via Terminals
Output Unbalanced via Terminals
I/O Impedance Impedance-Independent

Operational Modes (2255A)
Key Chromakey or Lumakey
Mix PC to/from Video
PIP Variable Window Size & Position
Input Vertical Rates -SMPTE259M-C (SD-SDI)
525i (720×488) 59.94Hz
625i (720×576) 50 Hz
Input Vertical Rates -SMPTE292M (HD-SDI)
720p (1280×720) 23.98, 24, 25, 29.97, 30, 50,
59.94, 60Hz
1035i (1920×1035) 59.94, 60Hz
1080i (1920×1080) 50, 59.94, 60Hz
1080p (1920×1080) 23.98, 24, 25, 29.97, 30Hz
Control Methods
Local via Front Panel Buttons & OSD
RS-232 Interface via D9 Female Connector
IP Interface RJ45 Connector
Infrared Remote via IRC-5 Remote Unit
Input Expansion Control via D-15 Options Connector
Limited Warranty 5 Years Parts and Labor
Regulatory Compliance
Main Units FCC, CE, RoHS
Power Supplies UL, CUL, CE, PSE, GS, RoHS
Size (H-W-D) 41.5x218x150mm(1.63¡¨x8.6¡¨x5.9¡¨)
Weight (Net) 1.32kg (2.90 lbs)
Operating Temperature 0„ato 50„aC ( 32„ato 122„aF)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -10„ato 70„aC ( 14„ato 158„aF)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply 12VDC@1.5A (Note 2)
Accessories Included
1x Operations Manual
1x Power Adapter US, UK, Euro or AU
Product Item Numbers
C2-2205A Basic Version
uptuC2-2255A PLUS Version with Key, Mix, PIP
Optional Accessories
RM-220 Single/Dual Rackmount Kit
S2 Series Input Expansion Switchers
Control Software Downloadable form Website
(1) Balanced Audio (6-inputs) and Audio Delay is available
via the S2-106AD accessory.
(2) The C2 unit uses less than 1A, however, if an S2 unit is
powered via the OPTIONS connector, 1.5A is required.
