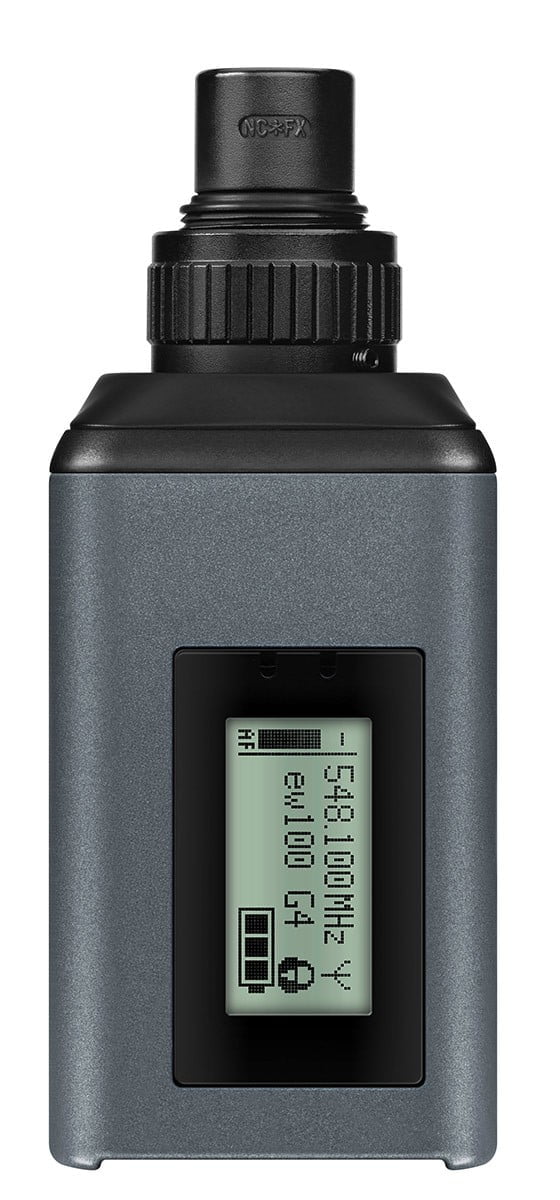

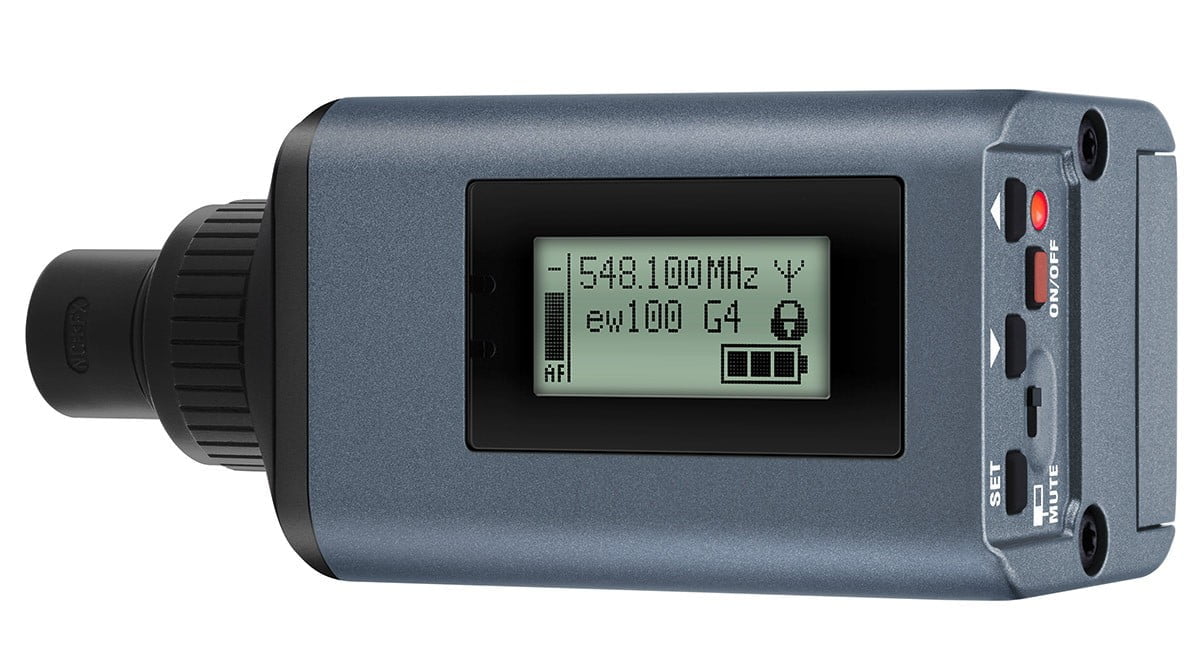

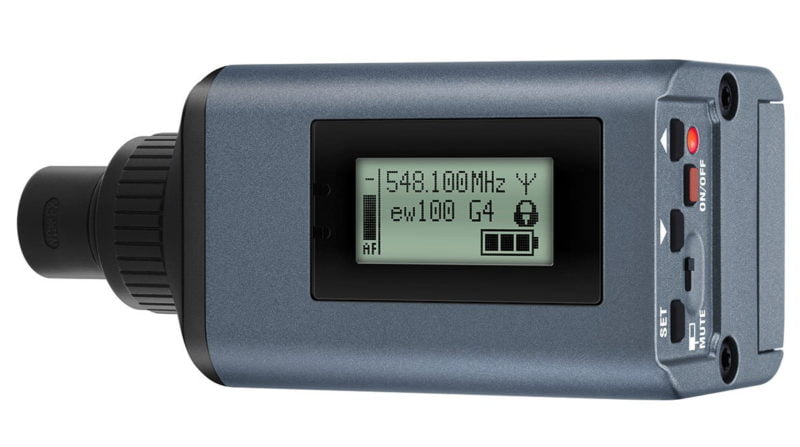

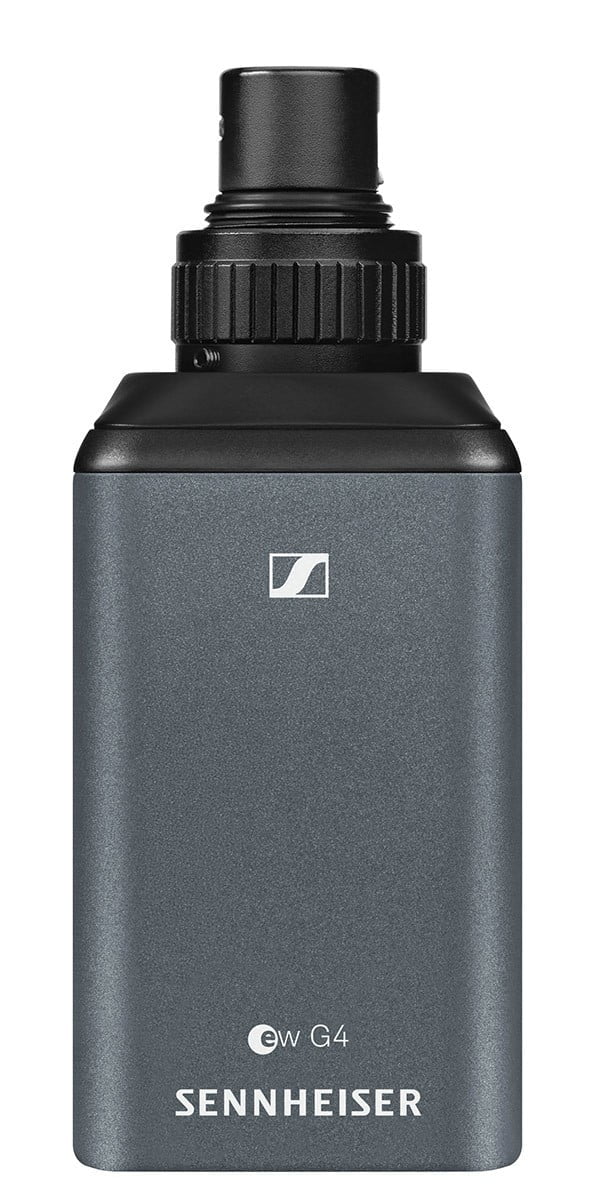

Sennheiser SKP 100 G4 Plug-on Transmitter

Discontinued 1/7/24

Please see the replacement EW-D SKP Plug-on

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For speech, documentary, Mobile Journalism and audio for video applications.

  • Powerful camera receiver, easily mounted on any kind of camera
  • Excellent sound and construction quality
Sennheiser
Categories: , SKU: RM/TX/PO/SEN01

Please see the replacement EW-D SKP Plug-on

FEATURES

  • Powerful camera receiver, easily mounted on any kind of camera
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time

DELIVERY INCLUDES

  • SKP 100 G4 plug-on transmitter
  • 2 AA batteries
  • quick guide
  • safety guide
  • manufacturer declaration sheet

SKP 100 G4

RF characteristics

Modulation Wideband FM
Frequency ranges A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
Transmission frequencies Max. 1680 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω Max. 30 mW
Pilot tone squelch Can be switched off

AF characteristics
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA
Total harmonic distortion (THD) ≤ 0.9 %
Max. input voltage 3.3 Veff
Input impedance 68 kΩ, unbalanced
Input capacitance Switchable
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps

Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
Operating time Typically 8 h
Dimensions Approx. 105 x 43 x 43 mm
Weight (incl. batteries) approx. 195 g
