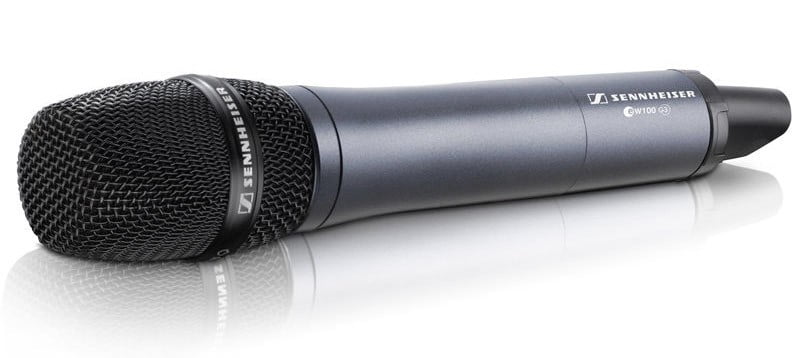

Sennheiser SKM100-845 G3 Evolution Handheld Mic transmitter only

Discontinued

Vocal radio mic with Super-Cardioid Dynamic head for ew100 G3 system

Sennheiser
Tag: Categories: , SKU: RM/TX/HH/SEN04

The SKM100-845 G3 raises the bar with it’s integral sync function. The transmitter automatically adjusts to a corresponding G3 receiver with a simple push of the receiver’s sync button. The capsule is based on the evolution 800 series, providing rich sound while minimizing the risk of feedback. The directivity of the mic reproduces the voice clearly while rejecting ambient background noise; this makes it a great choice where feedback may be an issue. Perhaps you want a different pick-up pattern or sound characteristic? The newly developed G3 microphone heads can be changed out in seconds without tools.

Features
Sturdy metal housing
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization via infrared interface from receiver
User-friendly menu operation with more control options
Illuminated graphic display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Battery indicatation in 4 steps, also shown on receiver display
Easy-exchangeable microphone modules from evolution series
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement

Delivery Includes
1 SKM 100-845 G3 handheld transmitter (dynamic, super-cardioid)
1 MZQ 1 microphone clip
2 batteries
Operating instructions

RF frequency range 516 ….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
RF output power 30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern super-cardioid

SKM100 G3 hand held radio mic transmitters comparison chart

ew135 ew145 ew165
Transducer Dynamic Dynamic Condenser
Sensitivity 2.1mv/Pa 1.6mv/Pa 1.6mv/Pa
Pickup pattern Cardioid Super-cardioid Super-cardioid
Max SPL 154dB 154dB 152dB
