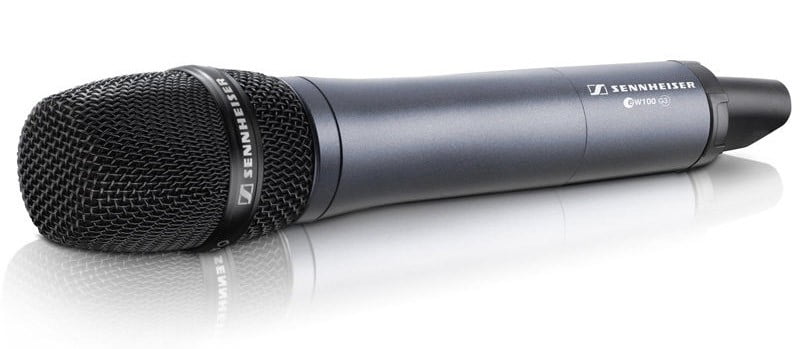

Sennheiser SKM100-835 G3 Evolution Handheld Mic transmitter only

Discontinued

Vocal radio mic with Cardioid Dynamic head for ew100 G3 system

Sennheiser
Tag: Categories: , SKU: RM/TX/HH/SEN03

Now with infrared sync function, the SKM100-835 G3 can tune to a G3 receiver with a simple push of the receiver’s sync button. Compatible with ew 100 G3 receivers and every vocal style, this hand-held transmitter/microphone combination provides wireless freedom to both performers and presenters alike. With rugged design and powerful sound, it is ideally suited for the stage as it is in the auditorium.

Newly revised features such as the enhanced graphic display, easily swappable capsule and included charging contacts make the SKM100-835 G3 a solid choice.

Features

  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Battery indicatation in 4 steps, also shown on receiver display
  • Easy-exchangeable microphone modules from evolution series
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Delivery Includes

  • 1 SKM 100-835 G3 handheld transmitter (dynamic, cardioid)
  • 1 MZQ 1 microphone clip
  • 2 batteries
  • Operating instructions





RF frequency range 516 ….. 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Compander HDX
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion 8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 2,1 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern cardioid

SKM100 G3 hand held radio mic transmitters comparison chart

ew135 ew145 ew165
Transducer Dynamic Dynamic Condenser
Sensitivity 2.1mv/Pa 1.6mv/Pa 1.6mv/Pa
Pickup pattern Cardioid Super-cardioid Super-cardioid
Max SPL 154dB 154dB 152dB

Brand

Sennheiser

Sennheiser

DM Music Ltd are a Sennheiser Professional Audio Premium Partner. We have been supplying Sennheiser equipment for many years and regard it as our leading microphone brand. If you require anything not seen below then call us on: 01582 761122
