The new PROEL FREEPASS10 is an all-in-one sound system combining in an ultra-portable, easy-to-use package everything musicians and other PA users need for playing: a full-featured mixer, a powerful amplifier, two full-range speakers and high quality connection cables.
FREEPASS10 is a complete PA systems that, even if compact in size, quick to setup and simple to use, is packed with a full set of features and delivers an unexpected sound quality for this kind of systems.

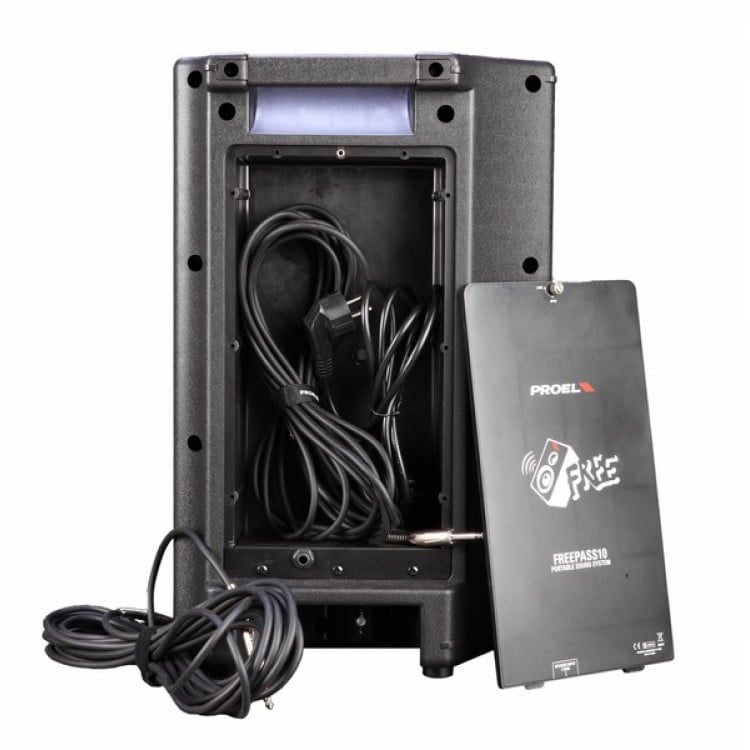

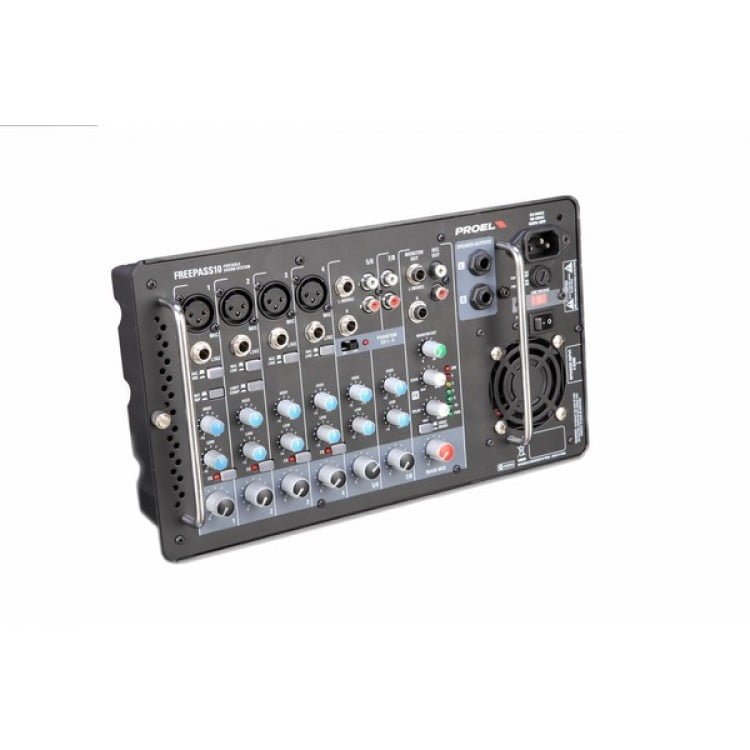

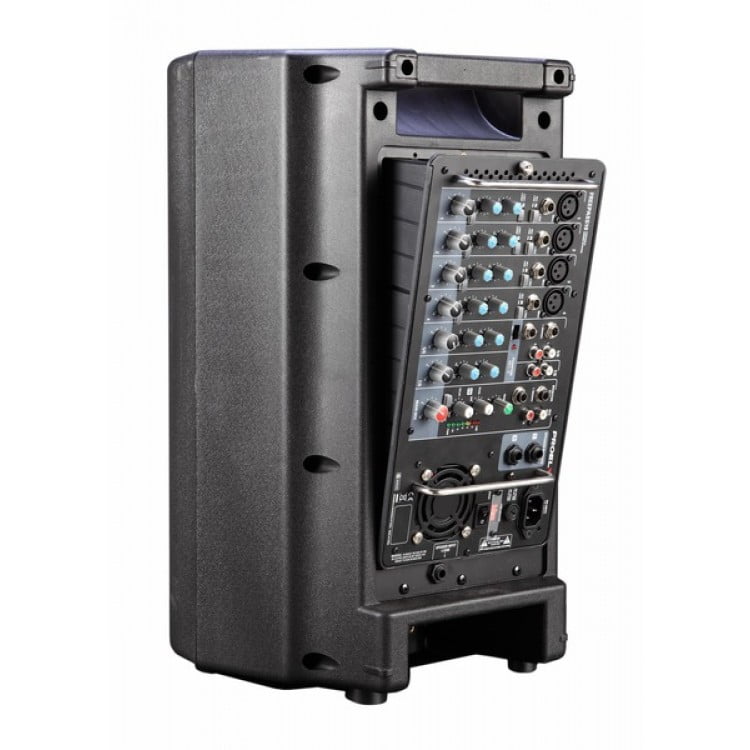

The 8-channel, 2x250W powered mixer fits perfectly in one of the two speakers and it can be used as it is or detached with a simple operation. The second speaker includes a convenient and large compartment that can contain all the connection cables and other accessories.

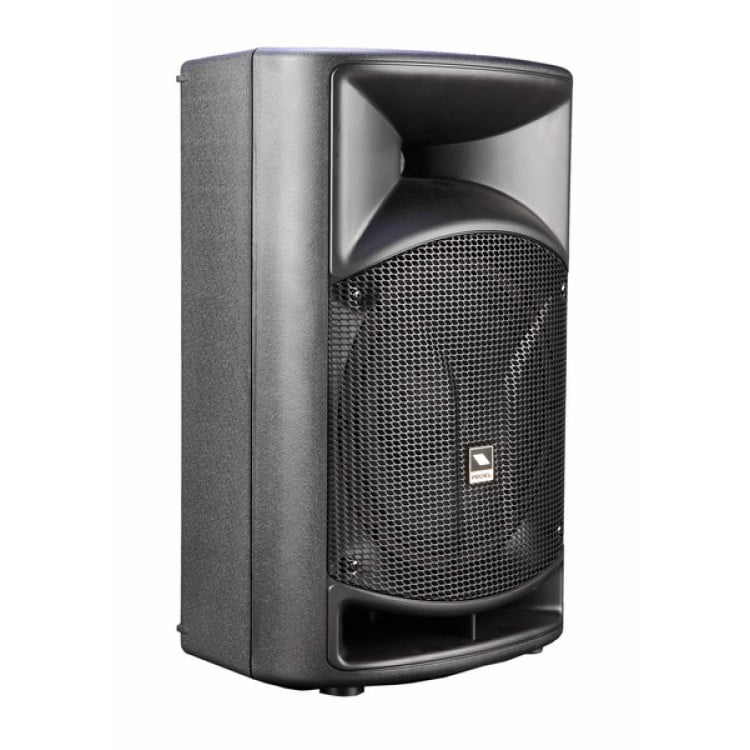

Two high-quality PROEL speaker cables with ultradurable 1/4” metal jack connectors are also provided. The two speakers, hosted in lightweight injected PP cabinets, feature a horn-loaded 1.35” VC compression driver and a 10” woofer, able to provide a clean and powerful full-range sound.
A large handle on top of the cabinet and a pole holder on the bottom make transport and installation quick and easy. Thanks to its versatility and portability, FREEPASS10 can be used in a variety of applications, such has live gigs for singers or small bands, education and sporting events, seminars and presentations.
– 4 MIC/LINE MONO inputs with phantom power – 2 LINE STEREO inputs – 2-band channel EQ – ECHO / DELAY eff ect – MUSIC/SPEECH main EQ – 7-LED VU-METER – 2-TRACK and MONITOR out – Dual 250W CLASS D power amplifi er with SMPS – 2-way speakers with 1” horn-loaded compression driver and 10” woofer – 2 x 7.5mt. PROEL power cables with metal ¼” JACK – Convenient accessory compartment
MONO inputs: (4) MIC IN (XLR-F) LINE IN (JACK)
Input EQ: HIGH: /-15dB 10 kHz, LOW: /- 15dB 100 Hz
PHANTOM power: 15 V (CH 1-4)
Dynamic Processor: COMPRESSOR / LIMITER (CH 1-2)
Internal Effect: ECHO / DELAY (CH 1-4)
Outputs: MONITOR OUT (2xJACK), REC OUT (2xRCA), SPEAKER OUT (2xJACK)
Main EQ: VOICE / MUSIC selector
Metering: 2×6-LED VU-METER
Amplifier Type: Class D with SMPS (Switch Mode Power Supply)
Maxium Output Power: 2 x 250 W @ 4 ohm (1 KHz, 1% THD)
Frequency Response: MUSIC: 20 Hz – 20 KHz, VOICE: 80 Hz – 20 KHz
Loudspeaker System: 2-way system vented
High Frequency Device: 1” compression driver 1.35′ VC – horn loaded
Angular Coverage: 90° H x 60° V
Impedance: 4 ohm
Frequency Response: 65 Hz – 20 kHz (-10 dB)
SPL 1W 1m: 95 dB
Construction: Black polypropylene, metal grille
Handles: 1 top
Pole Holder: 1 bottom
Dimensions: Speaker: 50x32x29 cm / Mixer: 32x18x9 cm
Weight: System: 25 kg / Speaker: 10.6 kg / Mixer: 2.4 kg
Power Supply: 230 VAC / 120 VAC (switchable) 50/60 Hz
Power consumption: 400 W
