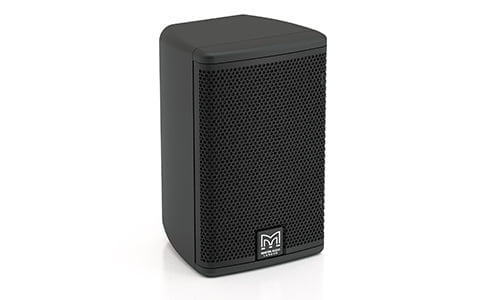

The ADORN A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

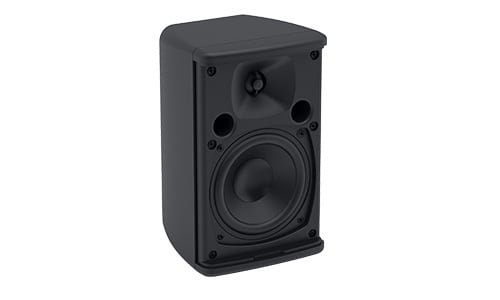

The A40T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX. Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silkdome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz. The A40T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.

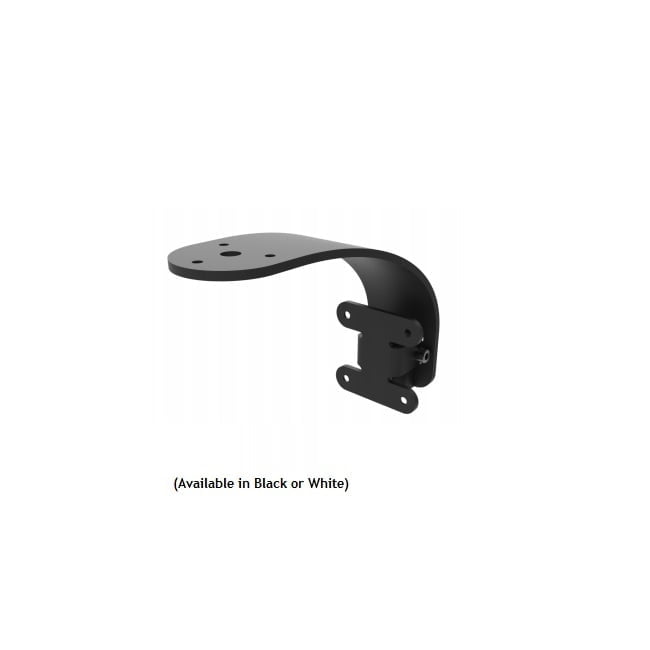

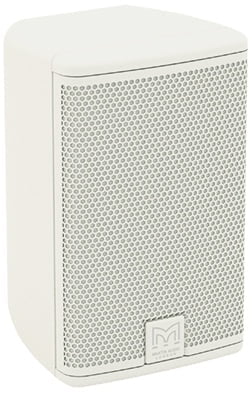

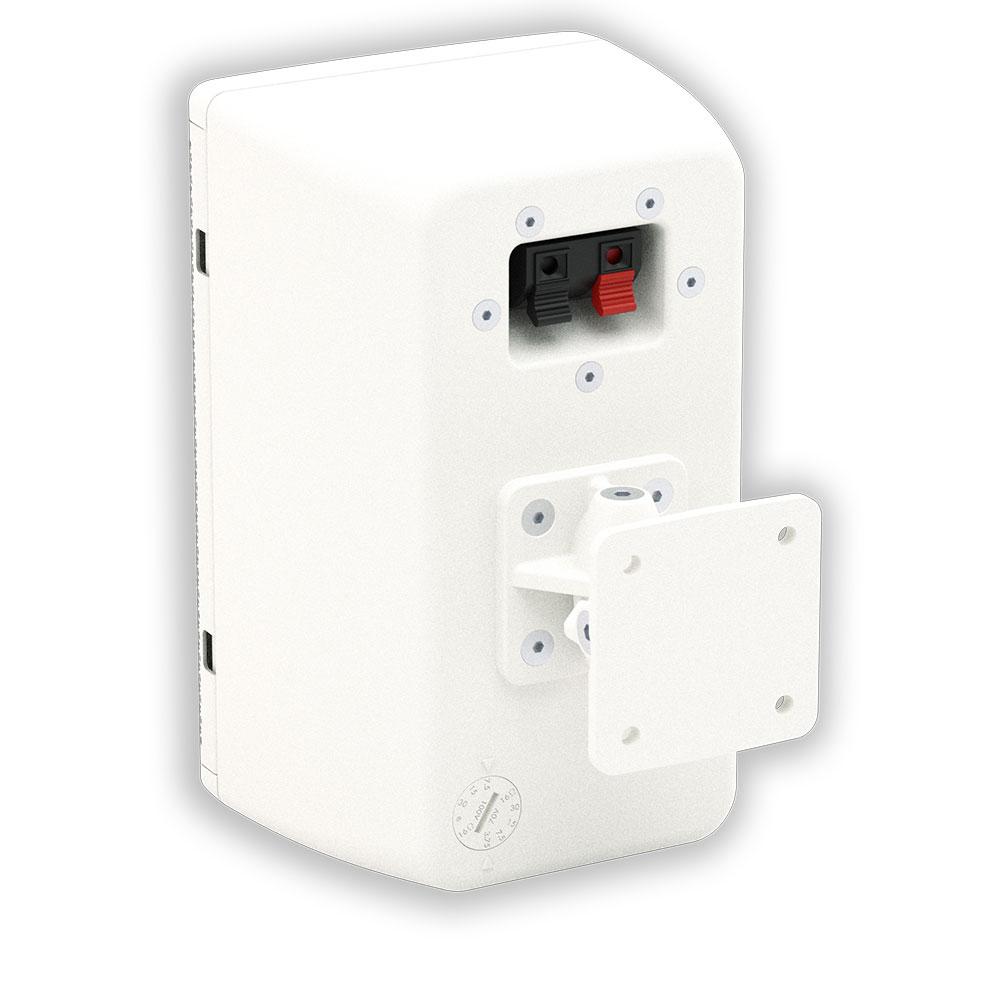

For full-bandwidth protection, the low and high-frequency sections are individually protected against overload. Available in black or white as standard, it can be readily painted to match any décor, and can be wall-mounted vertically or horizontally using the wall bracket supplied.
|TYPE||Ultra-Compact passive two-way system, front ported bass reflex|
|FREQUENCY RESPONSE (1)||98Hz-17kHz ± 3dB|
-10dB @ 70Hz
|RATED POWER (2)||40W AES, 160W peak|
|RECOMMENDED AMPLIFIER||VIA5002 [In conjunction with suitable line transformer]|
|MAXIMUM SPL (9)||109dB peak|
|DISPERSION (-6DB)||110° H x 80° V|
|CROSSOVER||3.5kHz passive (LF and HF auto-resetting fuses)|
|RECOMMENDED HIGH-PASS FILTER||60Hz 24dB/oct|
|ENCLOSURE||ABS, UL 94V-0 rated|
|FINISH||Black or white|
|FITTINGS||Wall bracket included|
|DIMENSIONS EXCL. BRACKET|
