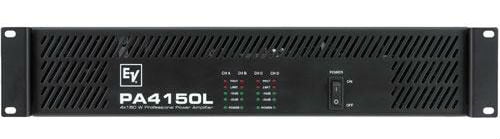

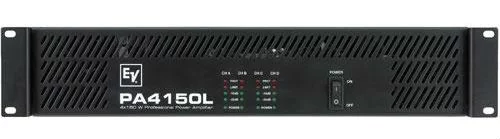

Name: EV PA4150L
SKU: AM/HVL/EV03
Price: 679.00 GBP
Availability: InStock

£679.00 Inc VAT

100 volt line amp – 4 channel
4 x 150W multi-channel power for installation
160 W per channel into 4 ?
Bridged mode for dual 315 W outputs into 8 ?
Compact 2U design
Selectable 50 Hz or 300 Hz high-pass filter
Thermal protection, peak limiting, turn-on delay

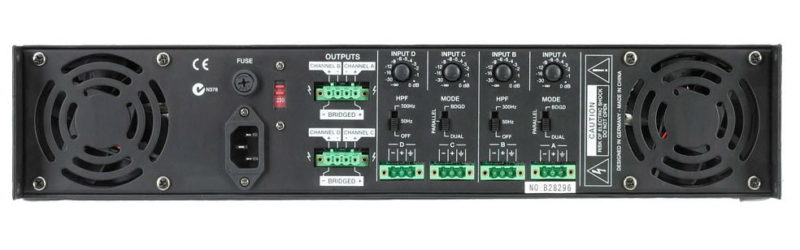

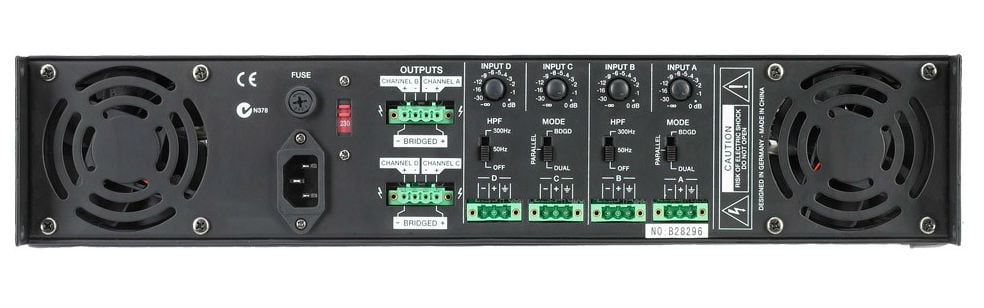

Phoenix-type inputs and outputs Integrated rack ears for direct mounting

SKU: AM/HVL/EV03 Category: 100 Volt Line Amplifiers

Amplifier Gain 30 dB Continuous Rated Power (1 kHz, THD 1%) 4? 160 Watts Continuous Rated Power (1 kHz, THD 1%) 8? 100 Watts Continuous Rated Power (20-20 kHz, THD<0,2%) 4? 150 Watts Continuous Rated Power (20-20 kHz, THD<0,2%) 8? 75 Watts Crosstalk < -75 dB ref. 1kHz, @ 10% rated output power DIM 30 0.1 % Frequency Response < 10Hz – 40kHz -1dB, ref. 1kHz Impedance 4/8 ? Input Sensitivity 0 dBu (775mV) @ rated output power or voltage, 1kHz Intermodulation Distortion (SMPTE) 0.1 % Network Control (IRIS-Net) No Number of Channels 4 Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz 150/75 W 4?/8? Rated output power (*rated load) THD < 1%, 1kHz 160/100 W 4?/8? Signal-to-Noise Ratio (A-weighted) 101 dB Slew Rate 16 V/µs Total Harmonic Distortion 0.1 % Height 2RU 88 mm (3.46″) Width 483 mm (19.02″) Depth 406 mm (15.98″) Weight Net 18 kg (39.68 lbs)
