Discontinued

Streaming Encoder

  • Dual Streaming Encoder
  • H.264 streaming and recording simultaneously
  • Supports SDI and HDMI input and external audio RCA unbalanced input.
  • Selectable audio output: embedded audio/external audio/mixed audio
  • LED indicator showing the status or the detections.
Datavideo
Tag: Categories: , SKU: HD/DAT04

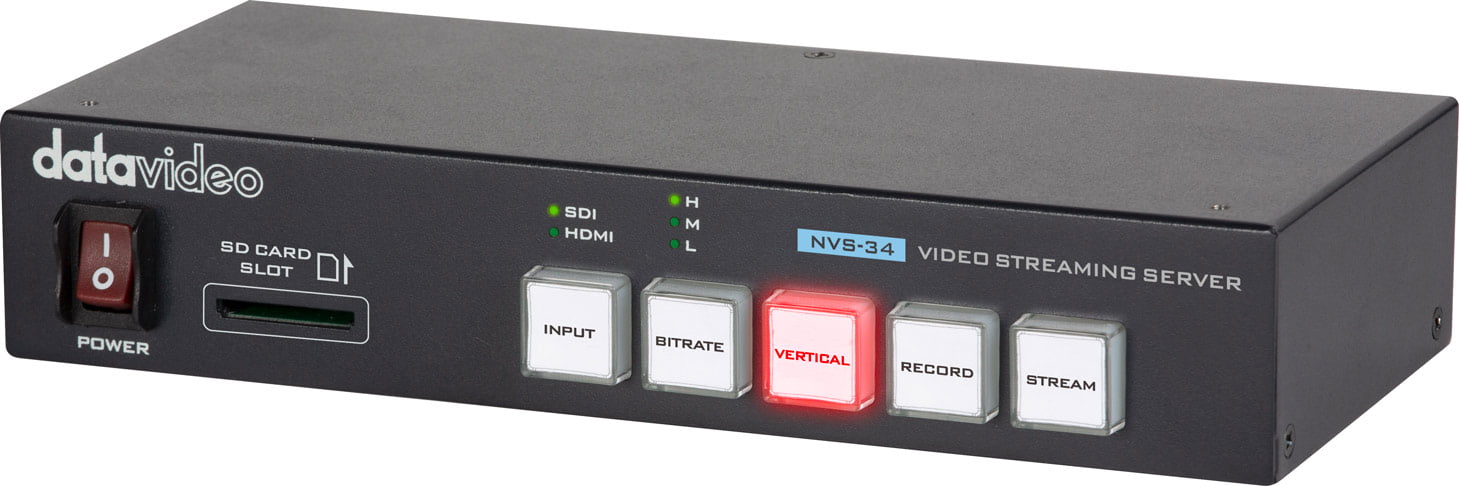

Dual video streaming server

The NVS-34 is an Dual H.264 multi-platform video streaming server, which offers two distinct bit rate options, for streaming and recording streaming simultaneously. Additionally, the NVS-34 supports vertical video streaming. The encoder accepts SDI and HDMI inputs, along with embedded or analogue RCA unbalanced audio. The recording file system supports NTFS, FAT32 or exFat for continuous recording without file size limitations.

Supports dual streaming

NVS-34 can stream to multiple destinations at the same time. This means that you can send the stream to two streaming platforms as well as recording locally on an SD card.

Simultaneous H.264 streaming and recording

NVS-34 supports simultaneous recording in H.264 MP4 format while streaming in RTMPS, RTMP, RTSP, TS, or SRT.

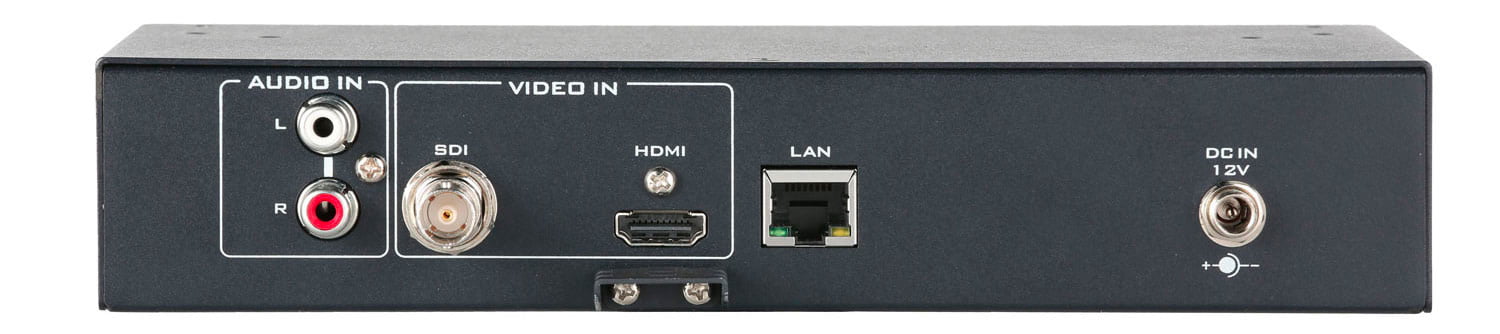

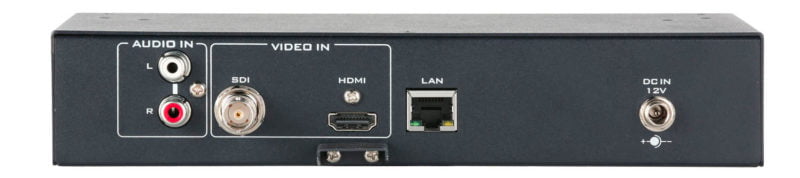

SDI & HDMI Video Inputs with Stereo RCA

NVS-34 has SDI and HDMI inputs for video. For audio, it comes with a stereo RCA input.

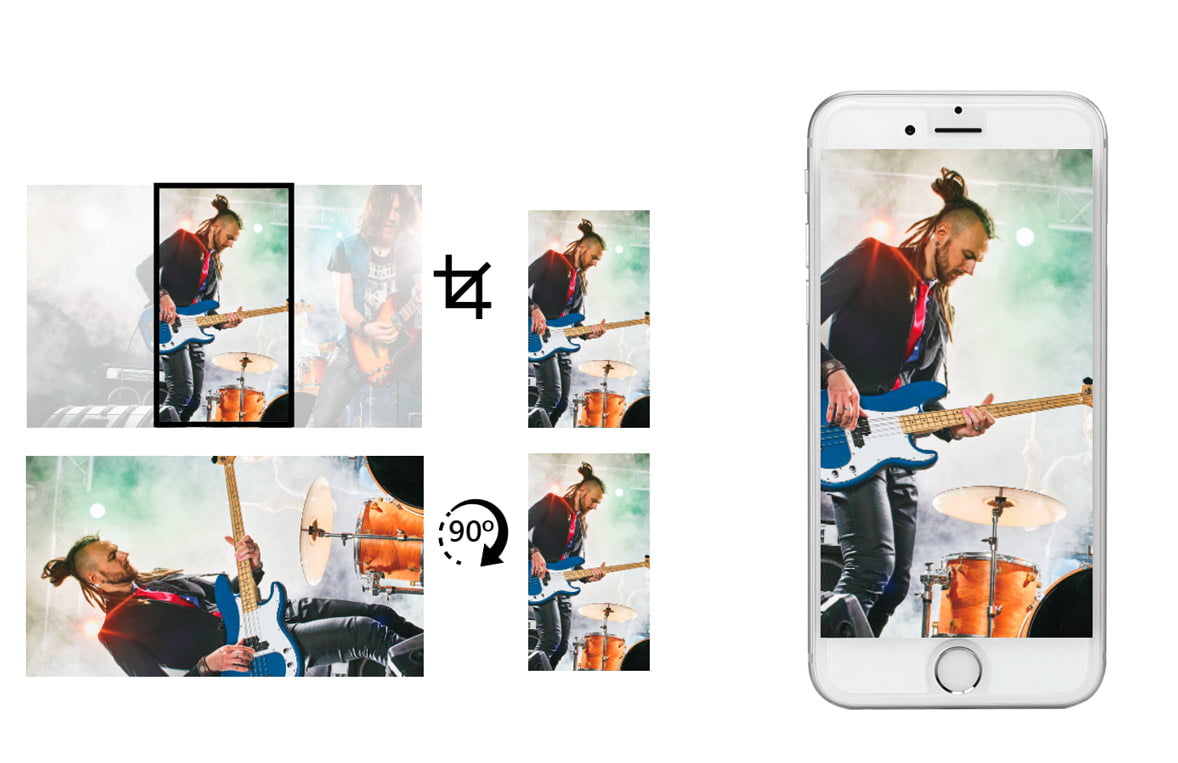

Vertical streaming

Vertical video streaming for social media like Facebook and Twitch. Rotate and Central Crop is available.

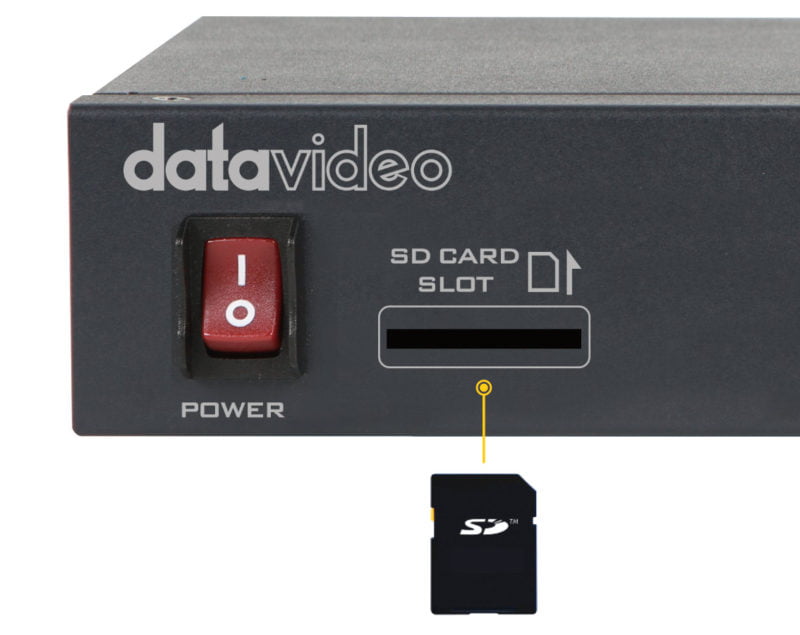

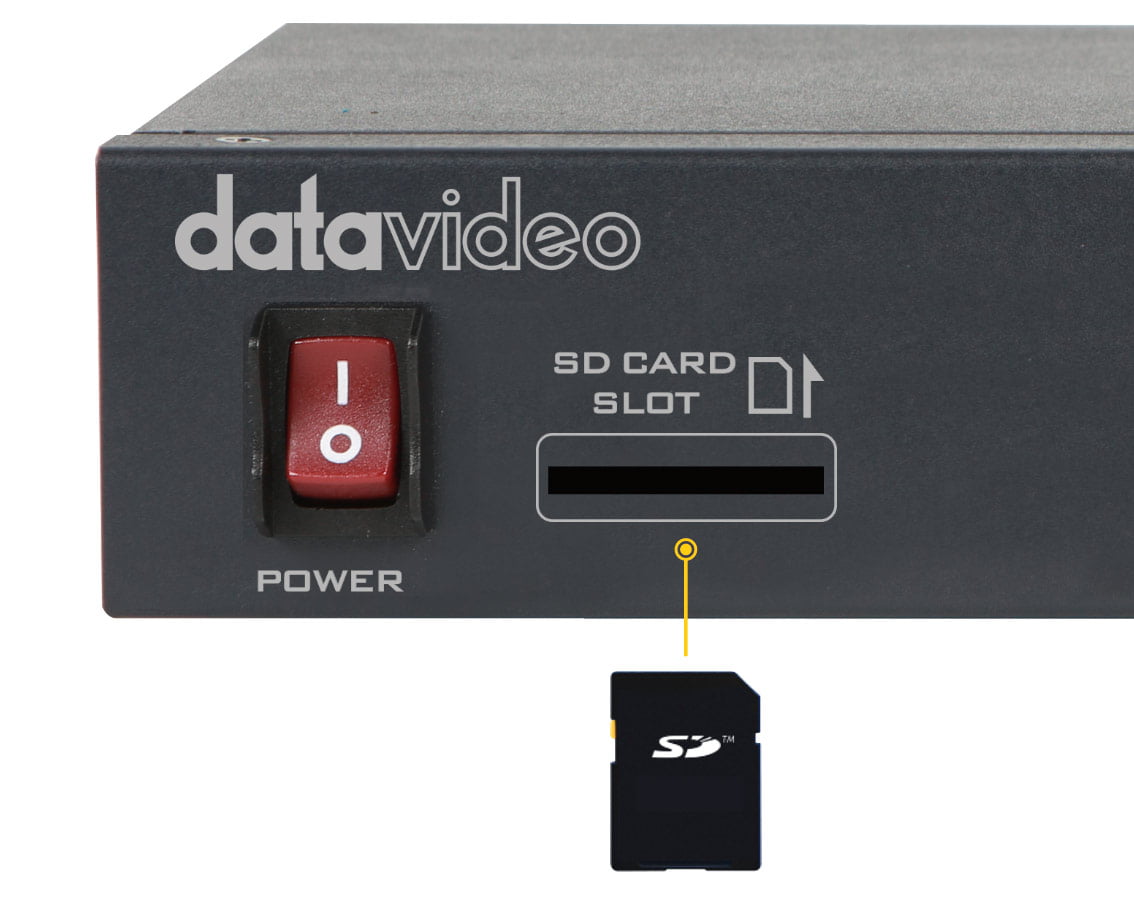

Record on SD card

Easy to store. The NVS-34 can record MP4 or TS files to an SD card

Remotely controlled by Windows or Mac

Remotely controlled using a mobile device with a web browser.

Supports FAT/NTFS file system

Recording to SD Card with either NTFS and FAT file system continuous recording without file size limitation.

NVS-34 H. 264 Video Dual Streaming Server
Video Input HDMI x1
SDI x1
Supported Video Input Resolution 1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
480i 59.94, 576i 50
Video Output None
Audio Input SDI & HDMI embedded audio
RCA L/R x1
Encode H.264/AVC, Main/High Profile Level 4.1
Video Bitrate Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60)
Rec+Stream: 36Mbps (1080p50/60)
Video Rate Mode CBR
Audio Mode Stereo/Mono
Audio Bitrate Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface 1x RJ45 (10/100Mbps Ethernet)
Recording File Format MP4, TS
Storage SD Card x1
(File System: NTFS, FAT, exFAT)
Special Feature Vertical video stream(rotate & crop)
Dual streaming
Power Supply DC 12V 11W
Dimension (LxWxH) 220 x 95 x 47 mm
Weight 0.7 kg
Operating Temp. Range 0~40 °C
What’s in the Box 1 x NVS-34 product
1 x AD Switch DC 12V
1 x Thank You Card
