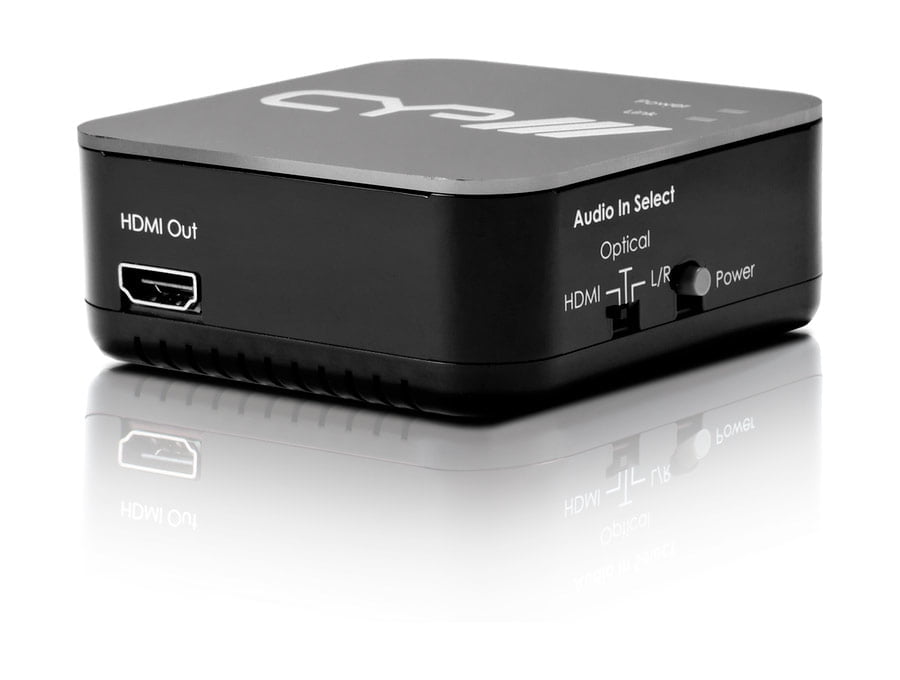

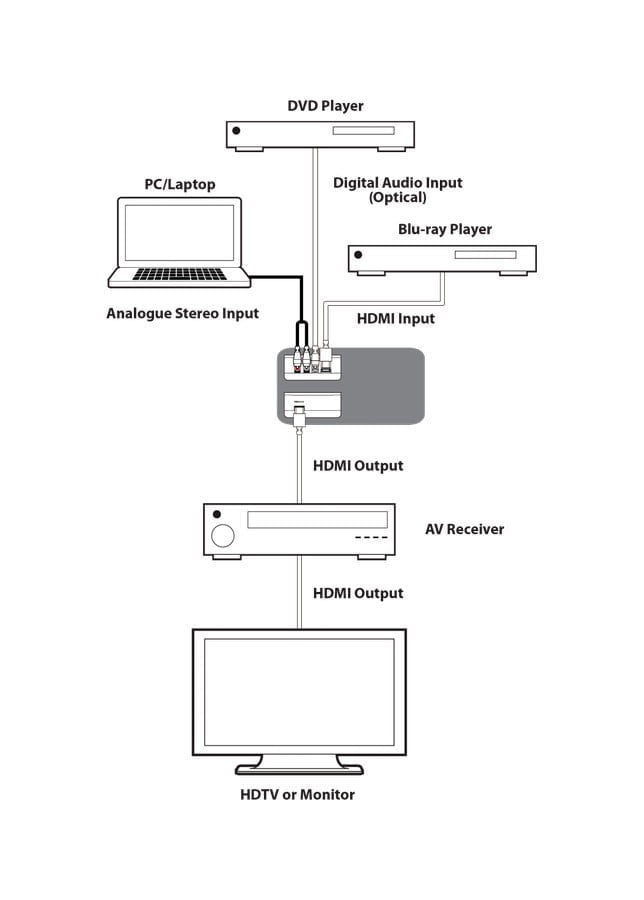

CYP’s AU-11CA Audio Embedder allows an external audio signal to be inserted into any HDMI source.
With very little effort, the user can quickly insert an analogue or digital Stereo and multi-channel digital surround sound audio signal (via Optical) to provide the ability to overcome audio issues within complex HDMI AV systems.
The CYP AU-11CA will also boost the HDMI signal to allow an extended total HDMI signal transmission range.
Compliant with HDMI v1.3 , HDCP 1.2 and DVI 1.0
Supports Optical Sample Rate up to 96 kHz
Supports LPCM Stereo, DTS and Dolby Digital via Optical input
Supports up to 24bit resolution digital audio
Supports resolutions of 1080P up to cable lengths of 10m either side of the device
Supports HDMI Sample Rates up to 192 kHz
Supports 3D signals

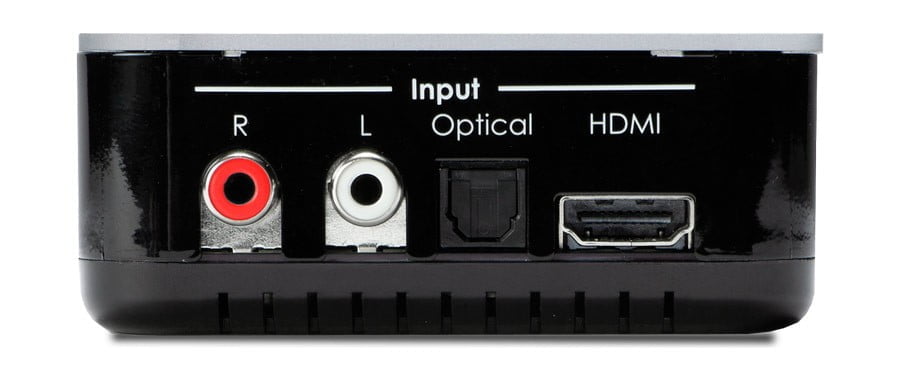

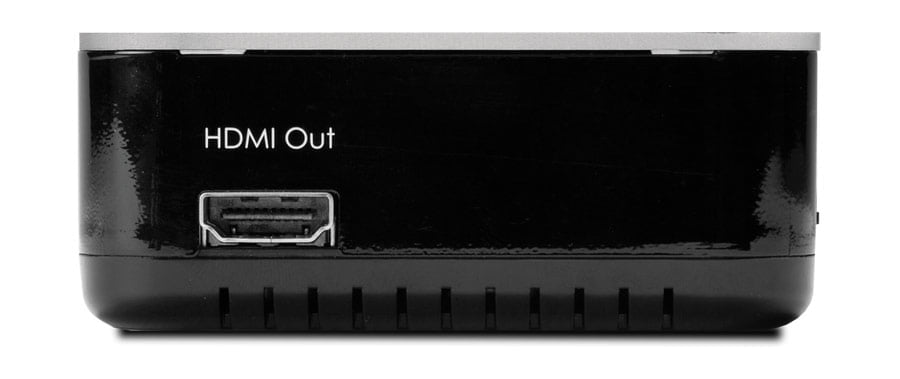

1x HDMI [1x HDMI Uncompressed AV and Data]
2x RCA [1x Analogue Stereo (L/R)]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
