Datavideo Monitor TLM-702HD

£949.00 Inc VAT

2 x 7″ 16:9 Wide Screen Panel
Resolution: RGB 800 x 480 dots
Aspect ratio: 16:9 / 4:3 / 15:9 switchable
Tally Light: YES Dual Colours
Tally Connection: D-Sub 15-Pin

Tag: Categories: , SKU: MON/LCD/DAT07FP

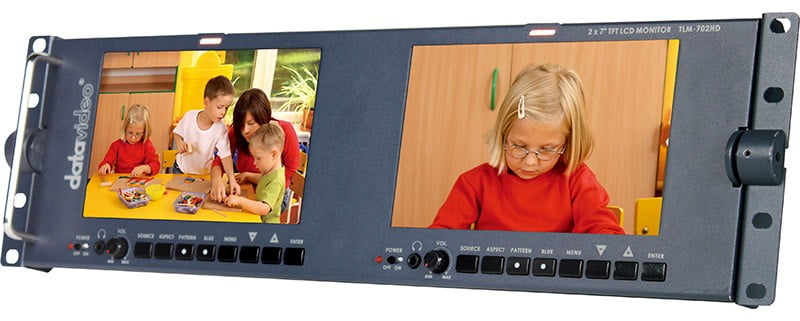

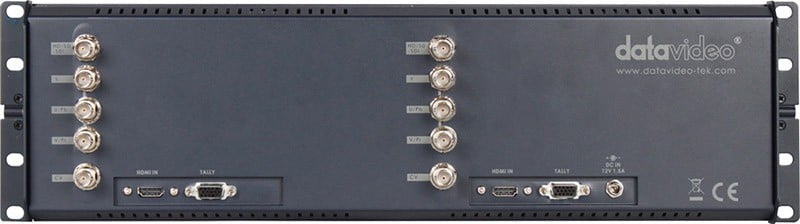

Datavideo TLM-702HD is a dual 7″ LCD TFT monitor bank in a standard 19″ 3U rack-mountable design, with a wide range of both High Definition and Standard Definition connections including HD & SD-SDI, HD & SD YUV, HDMI & Composite Video Input for each monitor.

The TLM-702HD monitor provide a range of advanced features that includes, audio indicator when working with SDI and HDMI, safe area indicators (80%, 90% OFF), VITC time code display, auto detection of NTSC/PAL, aspect ratio: 16:9 / 4:3 / 15:9 switchable and dual colour tally indication.

Each monitor have individual adjustments for brightness, contrast, colour and tint (Tint NTSC only).

Built in internal colour bar and blue only function, enables perfect and precise calibration of the monitor.

The TLM-702HD is an ideal choice when working with any High Definition switcher, such as Datavideo’s SE-2000, and thanks to the robust steel and aluminium construction, is a standard 19″ rack-mountable design, it is a perfect partner for any installation job, in production studio, OB van’s, presentation, stage and many other.


2 x 7″ 16:9 Wide Screen Panel
Resolution: RGB 800 x 480 dots
Brightness, Contrast, Colour, Tint Adjustable (Tint NTSC only)
Flip/Mirror effect: YES
NTSC/PAL Auto Switching
Aspect ratio: 16:9 / 4:3 / 15:9 switchable
OSD Menu Control
Support Blue Only
Support Embedded Audio & Time Code Viewing angle Minimum: Top 40 degree / Bottom 60 degree / Right 60 degree / Left 60 degree
Viewing angle Typical: Top 50 degree / Bottom 70 degree / Right 70 degree / Left 70 degree
LCD Brightness: Minimum 250/Typical 300 cd/m2
LCD Contrast ratio: Minimum 400/Typical 500
LED life time: 20,000 Hours
LCD Backlight: LED
Tally Light: YES Dual Colours
Tally Connection: D-Sub 15-Pin

What’s in the box:

  • TLM-702HD monitor
  • Sunshield
  • Switching Adaptor DC 12V/1.5A
  • Instruction Manual

Dimensions & Weight:

  • Width: 485mm
  • Height: 135mm
  • Depthp 75mm
  • Weight: 2.2Kgs


For specifications click here
