£660.00 Inc VAT
7″ 16:9 Wide Screen Panel – ideal as monitor screen
Resolution: RGB 800 x 480 dots
Brightness, Contrast, Colour, Tint Adjustable (Tint NTSC only)
Flip/Mirror effect: YES
NTSC/PAL Auto Switching
Aspect ratio: 16:9 / 4:3 / 15:9 switchable
LCD Backlight: LED
Tally Connection: D-Sub 15-Pin

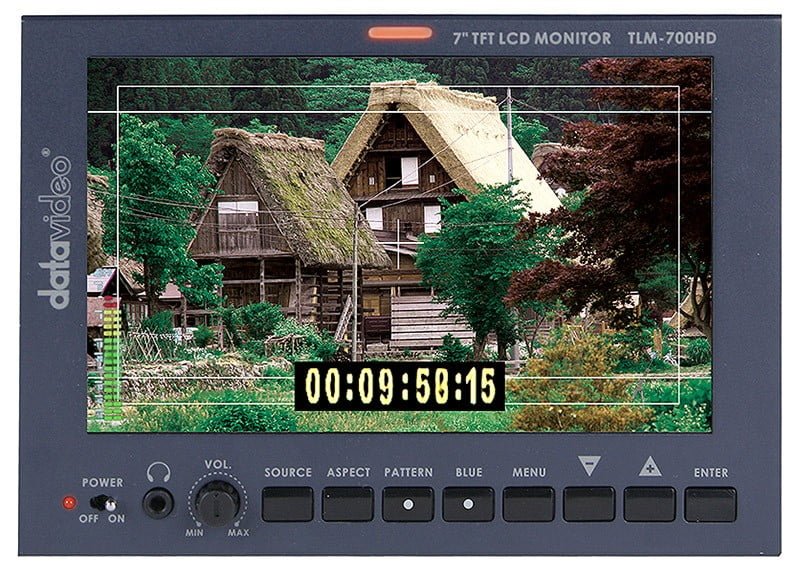

The Datavideo TLM-700HD is a 7 Inch monitor with a range of both High definition and standard definition connections including HD & SD-SDI, HD & SD YUV, HDMI & Composite Video Inputs. The range of connections and rugged metal design make it a perfect choice for users who work outdoors in the field or in a studio, with HD or SD.

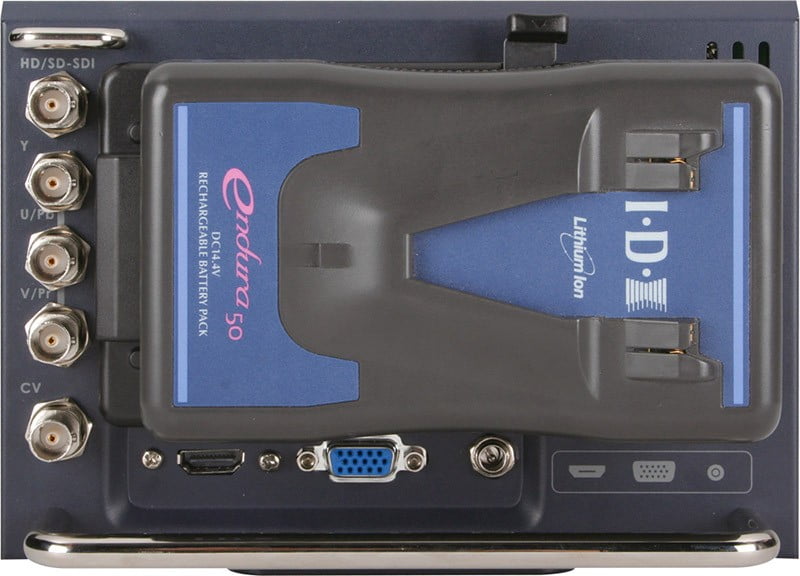

The TLM-700HD can be powered from a standard V-Mount type battery, enabling you to power the monitor using an existing camera battery from a range of manufacturers. The TLM-700HD can also be powered via the supplied mains power adapter.
The monitor provides a range of advanced features including, audio indicator when working with SDI and HDMI, safe area indicators (80%, 90% OFF), VITC time code display, auto detection of NTSC/PAL, aspect ratio: 16:9 / 4:3 / 15:9 switchable and dual colour tally indication.
Adjustment for brightness, contrast, colour and tint (Tint NTSC only).
Internal colour bars and Blue only function enables perfect and precise calibration.
For specifications click here
