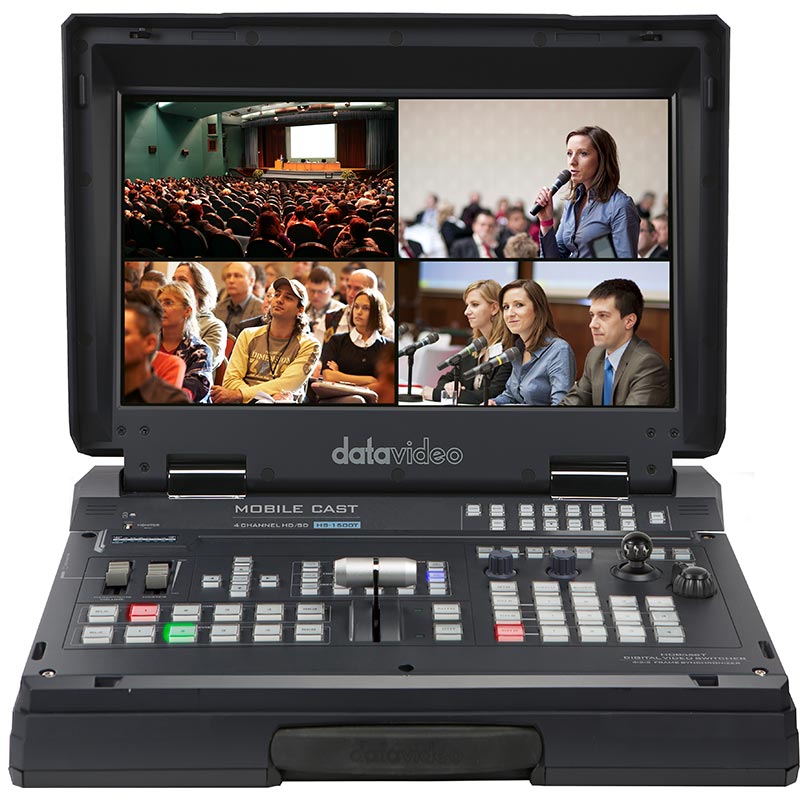

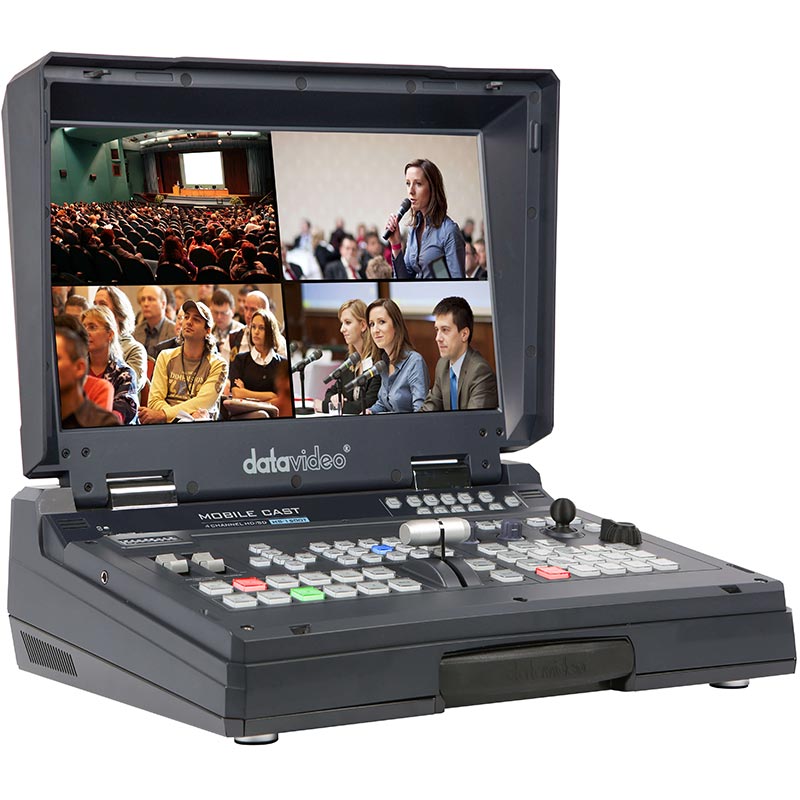

The HS-1500T portable HDBaseT switcher supports full 1080p video and is designed broadcasting live events and TV programs, which require a wide variety of video and audio sources.
The HS-1500T is a highly valuable solution for the worship, education, and AV markets. Its built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150T HDBaseT PTZ cameras via CAT6 or above cable. It also features PoE to provide power to three PTC-150T cameras, making installation fast and easy.
The HS-1500T has an audio mixer with balanced XLR inputs and unbalanced RCA audio inputs. Other features include PIP, wipe generator, and tally.
One of the best features of the HS-1500T is the integrated joystick, which allows the user to pan, tilt, and zoom the PTC-150T cameras. In addition, users can adjust the PTC-150T’s focus, iris, and other settings remotely using the HS-1500T.
HD/SD 4 Channel HDBaseT Portable Video Studio
Built-in HDBaseT technology allows control of up to three PTC-150T Pan, Tilt, and Zoom cameras, as well as send power to PTC-150Ts by PoE
Pan, tilt, and zoom with speed control by Joystick

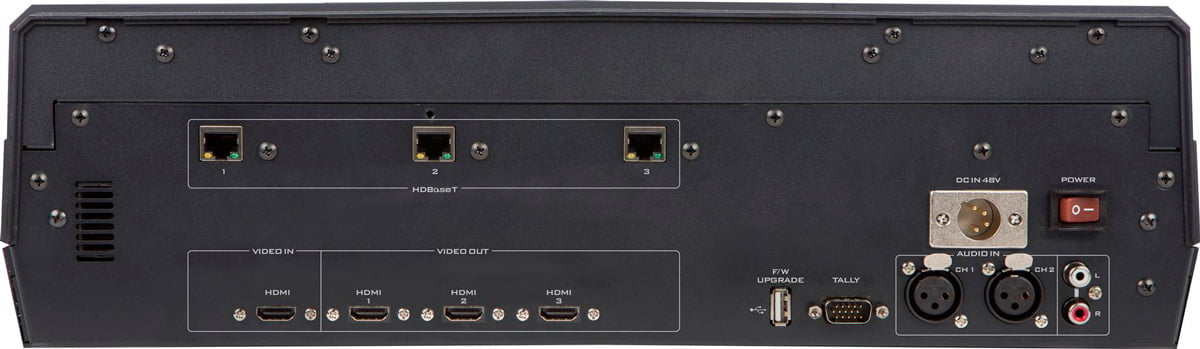

4 video inputs (3 x RJ-45 + 1 x HDMI)
4 video outputs (3 x HDMI + 1 x RJ-45)
Audio inputs: 2 x XLR Analogue + 2 x RCA Analogue (L/R)
Flexible Mix/Effects : PIP, WIPE, Mix, Fade
One 17.3-inch with a resolution of 1920×1080 dots
Video Standard HD & SD Video Format 1080p 50/59.94/60Hz , 1080i 50/59.94/60Hz 720p 50/59.94/60Hz , 576i 50Hz , 480i 59.94Hz Input Routable / Crosspoint N/A Video Input 3 x HDBaseT , 1 x HDMI Computer Graphic Interface 1 via HDMI Down-converted output N/A Video output 3x HDMI assignable: PGM or multi-view Audio input 2x Balanced XLR , 1x Stereo RCA (L/R) , De-embedded Digital Audio Audio output 1x Stereo headphone Embedded audio support 2 ch Audio embedded Audio Delay Calibration N/A A+V switching N/A Built-in Audio Mixer Yes Picture in Picture 1 Built-in Monitor Display 17.3” HD TFT LED backlit, 1920×1080 pix Dimension (LxWxH) 455 x 355 x 134 mm Weight 15.4 Lbs (7 Kg), Reinforce Plastic Case
