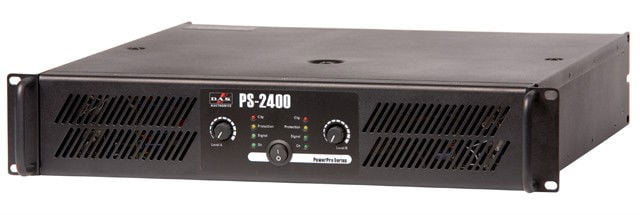

DAS PowerPro PS 2400 amplifier


Stereo Amplifier
1200 W x 1200 W at 4 ohms
Input Sensitivity Selector
Stereo, Bridged Mono or Parallel Operation

Tag: Category: SKU: 00AMPDAS05

The PS-2400 is a high power stereo amplifier which incorporates a rugged 2 unit all-steel chassis ensuring structural rigidity and protecting components. The low-noise fans offer both quiet and cool operation while the high energy toroidal transformer saves weight. The amplifier incorporates rear located switches which permit ground lift, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Power EIA (1 kHz@THD 1%) 8/4? 800 W / 1200 W
Power EIA (1 kHz@THD 1%) Bridged 8? 2200 W
Frequency Response 20 Hz-20 kHz /- 1 dB
Signal/Noise (20 Hz-20 kHz) 90 dB
Distortion (SMPTE-IM) Menor del 0.5%
Distortion (typical) 20 Hz-20 kHz Menor del 0.5%
Damping Factor 8 ? >100
Input Sensitivity 0.775 V/1.0 V/1.44 V
Input Impedance 10 kohms Un-balanced, 20 kohms Balanced
Voltage Gain 39 dB
Output Circuitry Class G
AC Requirements 230 VAC 50 Hz
Current Draw (1/3 Power 4 ?/230V) 9.6 A

Dimensions (H x W x D) 8.8 x 48.2 x 38.6 cm, 3.5 x 19 x 14.2 in
Weight 21 kg (46.2 lb)
