Australian Monitor MX883

Call for price
  • 8 x XLR microphone/line, and stereo RCA inputs with LED status indication
  • Treble and Bass controls per channel
  • Left, Right and Aux assignment per channel
  • Stereo output
  • 5 band constant Q graphic EQ on Left/Right outputs
  • Direct output (TRS) per channel
  • 15dB gain trim per input
  • Link bus to expand the MX883
  • Low noise/high performance for live sound and critical applications
Australian Monitor
Category: SKU: MX/UNP/AM05

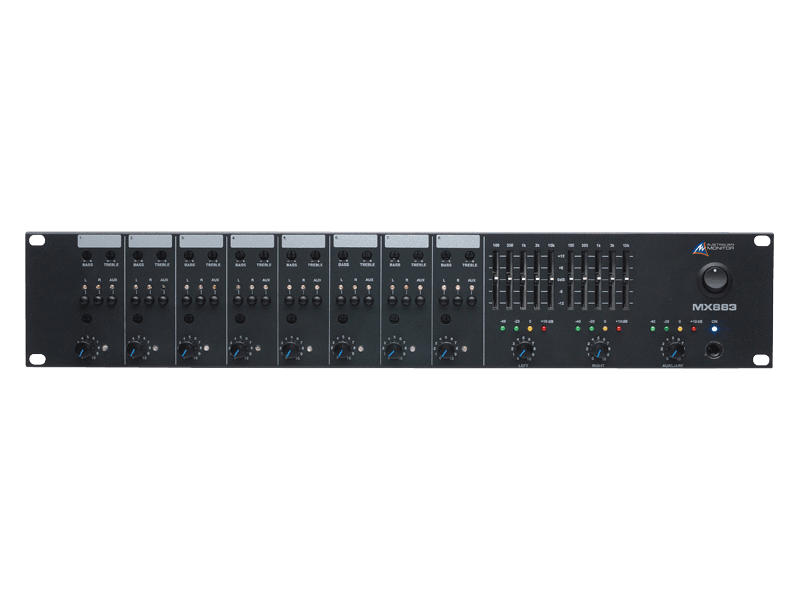

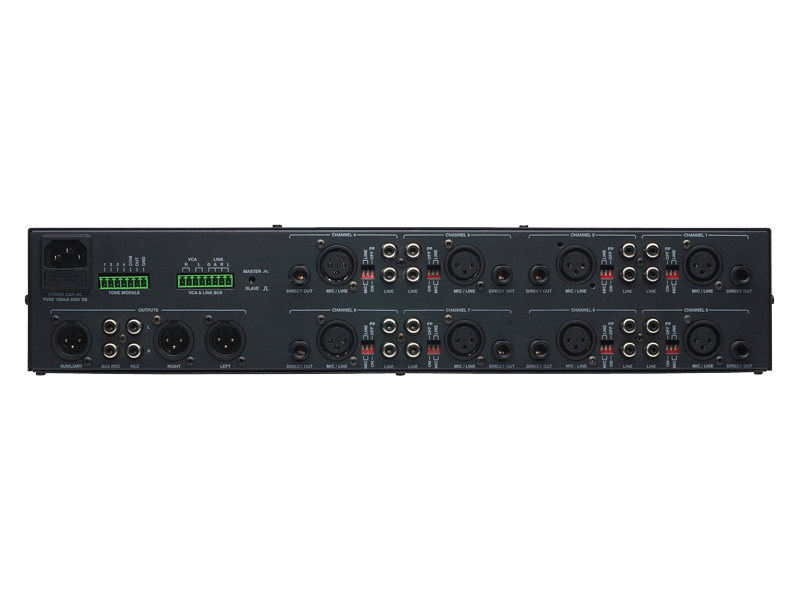

The MX883 is the latest MX mixer addition and is the most versatile and fully featured mixer in the MX mixer family. The MX883 is a 2RU stereo mixer that features 8 stereo or XLR balanced inputs. Each input offers individually switchable phantom power, 15dB /- of gain trim, balanced XLR switchable between microphone and line level, stereo RCA in.

It also features line level direct outputs which can be used to feed additional amplifiers, mixers or recording devices, dual colour status LED indication, treble and bass controls and individual left, right and aux assign switching with LED indication. The MX883 also features a link bus allowing 2 MX883’s to be linked to form a 16 channel stereo mixer.

Designed to be a high performance stereo mixer with a separate auxiliary output bus for added flexibility, the left and right bus outs feature 5 band constant Q graphic EQ and all outputs have 4 stage LED level indication. The MX883 also has a pre/post master switchable headphone output. The MX883 is equally at home in a commercial installation or in the demanding environment of live performance.

Frequency Response 20Hz – 20kHz ( 0,-3dB)
Total Harmonic Distortion < 0.1% @ 1kHz
Signal To Noise Ratio > 90dB (all pots at centre position)
Crosstalk Between channels >70dB
Tone Controls Bass @ 100Hz /- 12dB
Treble @ 10KHz /- 9dB
Sensitivity (Trim in centre 0dB) Mic Sens 4.36mV, -45dBu Imp 1k3ohm
Line Sens 0.775V, 0dBu Imp >100k
RCA 200mV, -12dBu Imp 30kohm
Max Level in XLR mic -9dBu
XLR line >30dBu
RCA >30dBu
Max Level out 21dBu
PHANTOM POWER 15V DC
Outputs Master Out Nominal Level 0dBu into 1kohm
Imp 100ohm
Stereo Headphone Out Nom -6dBu into 200ohm
Imp 10ohm
Stereo Rec Out Nom -12dBu into 10kohm
Imp 10kohm
Channel Direct Out Nom 0dBu into 1kohm
Imp 100ohm
Power Input AC: 230V/50Hz or 115V/60Hz, 3 pin IEC320-C14 connector
Power Consumption (max) 30 VA
Fuses Mains (115V) 200mA
Mains (230V) 100mA
Dimensions (H x W x D) 88 x 482 x 270mm (3.5” x 19” x 10.6”)
Shipping Dimensions (H x W x D) 170 x 505 x 350mm (6.7” x 19.9” x 13.8”)
Weight Net 4.0kg (8.8lb)
Shipping 4.5kg (9.9lb)
