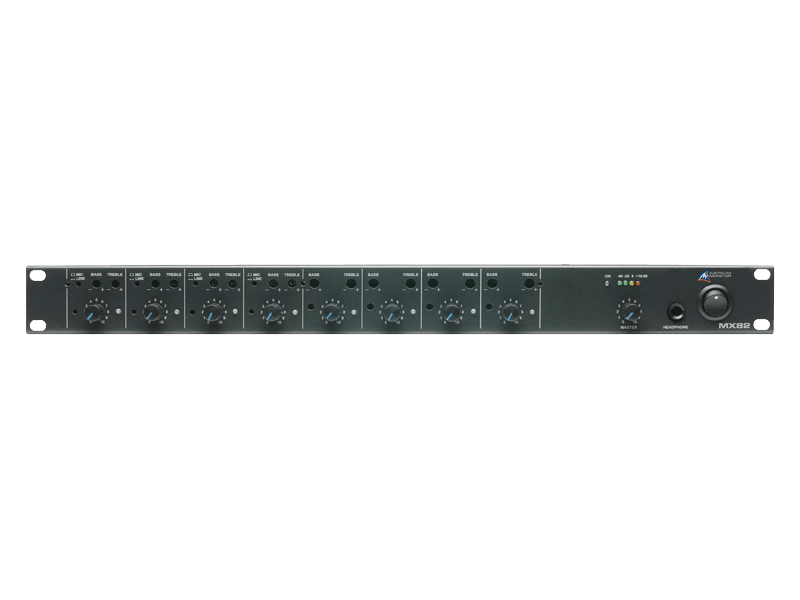

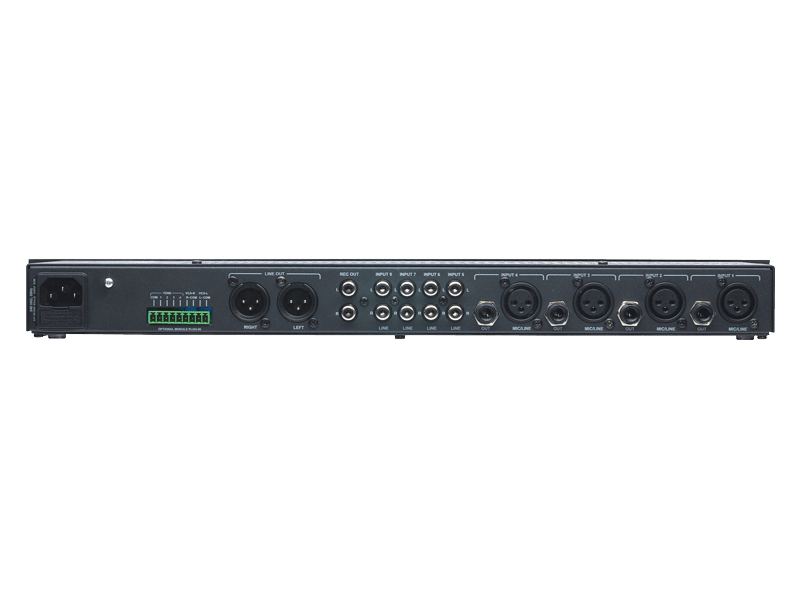

The MX82 offers high quality audio performance and a wide array of features in a standard 1RU size. There are four mic/line inputs and four stereo inputs. Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level, 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC).
The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices.
An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. You can also feed the optional tone generator to the direct outs if required. Input 1 can also be pre or post master if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.
The MX82 also features four-segment LED output metering and the ability to internally switch input one to be either pre or postmaster. With both Headphone Out and Record Out also available, the MX82 is extremely versatile. Each input channel has individual bass, treble and pan controls. The Australian Monitor MX82 mixer has taken the heritage of a contractor-friendly installation product and added the audio fi delity required in today’s AV contracting market.
Frequency Response 20Hz – 20kHz ( 0,-3dB) Total Harmonic Distortion < 0.1% @ 1kHz Signal To Noise Ratio > 90dB (all pots at centre position) Crosstalk Between channels >70dB Tone Controls Bass @ 100HZ /- 12dB Treble @ 10kHZ /- 9dB Sensitivity (Trim in centre 0dB) Mic Sens 4.36mV, -45dBu Imp 1k3ohm Line Sens 0.775V, 0dBu Imp >100k RCA 200mV, -12dBu Imp 30kohm Max Level in XLR mic -9dBu XLR line >30dBu RCA >30dBu Max Level out 27dBu Phantom Power 15V DC Outputs Master Out Nominal Level 0dBu into 1kohm Imp 100ohm Mono Headphone Out Nom -6dBu into 200ohm Imp 10ohm Mono Rec Out Nom -12dBu into 10kohm Imp 10kohm Channel Direct Out Nom 0dBu into 1kohm Imp 100 ohm Power Input AC: 230V/50Hz or 115V/60Hz, 3 pin IEC320-C14 connector Power Consumption (max) 7 VA Fuses Mains (115V) 120mA Mains (230V) 63mA Dimensions (H x W x D) 44 x 482 x 182 (1.75” x 19” x 7.2”) Shipping Dimensions (H x W x D) 90 x 505 x 270 (3.5” x 19.9” x 10.6”) Weight Net 2.8kg (6.2lb) Shipping 3.8kg (8.4lb)
