Name: Audio Technica ATW-3141b
SKU: RM/HH/ATEC07
Price: 539.00 GBP
Availability: BackOrder

Discontinued

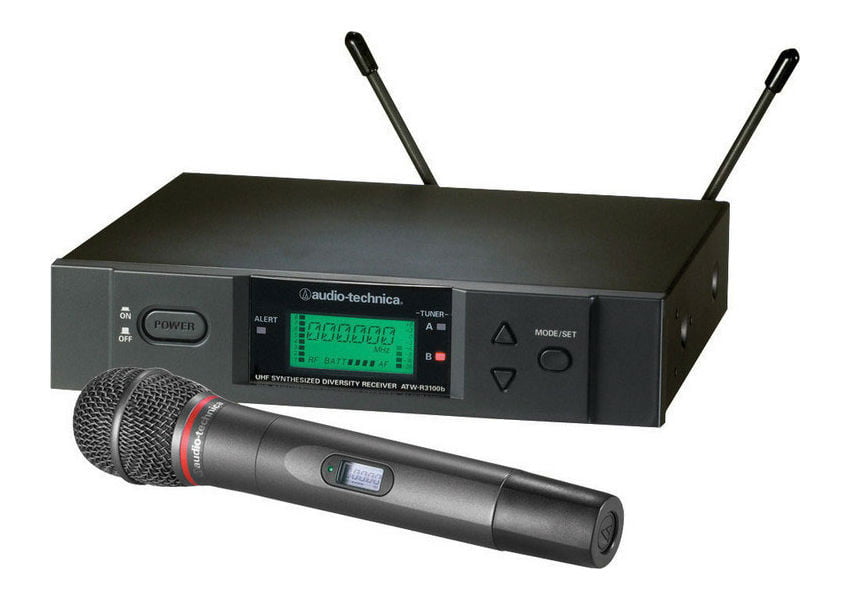

Hand Held dynamic radio mic system

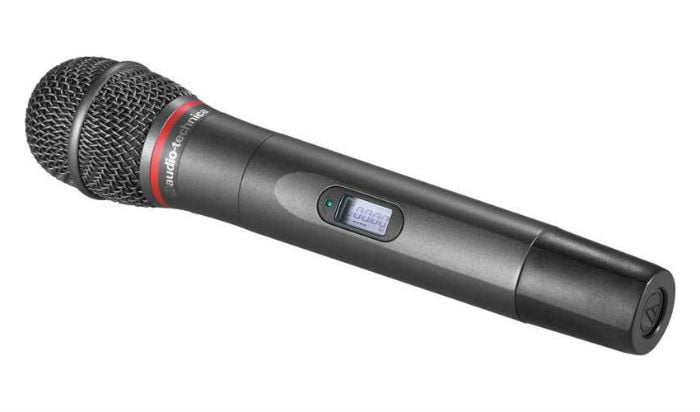

Cardioid Dynamic (Vocal) hand held transmitter mic
200 PLL-synthesized channels
True Diversity operation, UHF band operation
Advanced digital ToneLock squelch
Channel 38 operation – requires UK licence to operate

Tag: DiscontinuedCategory: Handheld Radio MicsSKU: RM/HH/ATEC07

DM Music recommends all radio mics are used on licenced frequencies (channel 38 or Fixed Site Licences). From 2013 Channel 70 (unlicenced) may experience interference from 4G Mobile phone networks. Please also see our DM Quick Expert Guide for more information. We can also arrange licences on your behalf. Please call us on 01582 761122 for more information.

Features

Automatic frequency scanning for easy set-up
200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter
Available in two frequency bands:
840.125 – 864.875 MHz (F Band).
795.500 – 820.000 MHz (E Band)
True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
Interference-resistant UHF band operation
Advanced digital ToneLock“ squelch
Red alert light that warns of low battery power, signal loss and input overload
Transmitter battery-life fuel gauge on the receiver
Ground-lift switch
Balanced and unbalanced audio output jacks
Two receivers can be mounted side-by-side in a single 19″ rack space
ATW-T310 UniPak’ transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
ATW-T341 handheld microphone/transmitter features the Artist Elite’ AE4100 cardioid dynamic element
ATW-T371 handheld microphone/transmitter features the Artist Series ATM710 cardioid condenser element

Specifications
Operating Frequencies: UHF band
840.125 – 864.875 MHz (F Band).
795.500 – 820.000 MHz (E Band)
Number of Channels: UK: 198 – 197 EX band
Frequency Stability: ñ0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Normal Deviation: ñ10 kHz
Operating Range: 90 m (300′) typical
Operating Temperature Range: 5? C (41? F) to 45? C (113? F)
Frequency Response: 70 Hz to 15 kHz
Receiver Specifications
Receiving System: Dual independent receivers, automatic-switching diversity
Image Rejection: 60 dB nominal, 55 dB minimum
Signal-to-noise Ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total Harmonic Distortion: Sensitivity: 24 dBæV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate Frequency: 243.950 MHz, 10.7 MHz
Audio Output: Unbalanced: 50 mV (at 1 kHz, ñ5 kHz deviation, 10k ohm load)
Balanced: 32 mV (at 1 kHz, ñ5 kHz deviation, 10k ohm load)
Output Connectors: Unbalanced: 1/4″ TS (“mono”) phone jack
Balanced: XLRM-type
Power Supply: PS6 230/240V AC 50Hz with supplied 13.5V, 500 mA AC adapter
Dimensions: 210.0 mm (8.27″) W x49.0 mm (1.93″) H x176.0 mm (6.93″) D
Weight: 1.1 kg (2.4 lbs)
Accessories Included: PS6 230/240V AC 50 Hz 13.5V, 500 mA AC adapter; two flexible UHF antennas; rack-mount adapters
