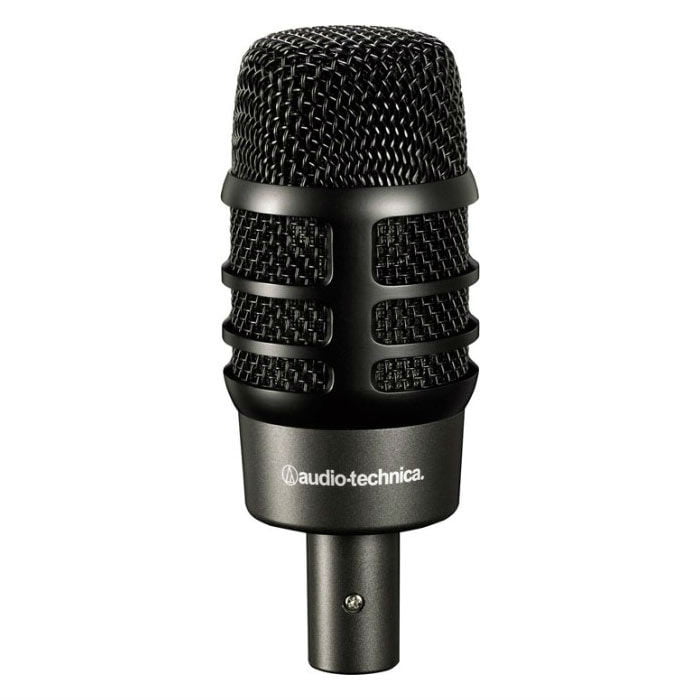

Audio Technica ATM250DE

£359.00 Inc VAT

Dual element Bass Drum mic

  • Features two elements (condenser and dynamic)
  • Perfect for kick drum, guitar amps and instrument use
  • Requires dedicated XLR Y-lead – included (condenser element requires Phantom Power)
Audio Technica
Categories: , , SKU: MI/DYN/ATEC06

Dual element Bass Drum mic

The Artist Series new kick-drum mic, the ATM250DE dual-element instrument microphone features cardioid condenser and hypercardioid dynamic capsules combined in a single housing. Audio-Technica’s innovative use of two polar patterns is ideal for kick drum: the hypercardioid dynamic element focuses tightly on the aggressive attack of the beater, while the condenser captures the round tonalities of the shell.
The elements are positioned in a perfect phase relationship, something practically impossible to achieve with two separate microphones. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

Features

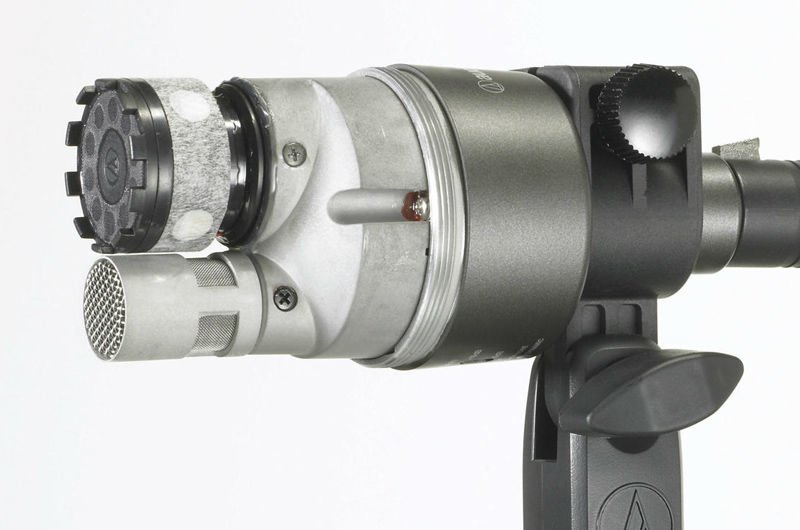

  • Two elements (condenser and dynamic) enclosed in a single housing
  • Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
  • Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
  • Perfect for kick drum, guitar amps and instrument use
  • Integral 80 Hz HPF switch and 10 dB pad (condenser element)
  • Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Rugged, all-metal design and construction for years of trouble-free use
  • Requires dedicated XLR 5 pin Y-lead – included (condenser element requires Phantom Power)

DM Music says
“We love this mic – a great idea and a very versatile piece of kit that really does what it sets out to do! Great for that fat bottom end and click attack for bass drums, especially for double pedalling – Metallica love ’em for just that reason! Just don’t forget you need 2 mic cables for this dual mic!”

Specifications

* Frequency Response: 40-20,000 Hz (condenser) 40-15,000 Hz (dynamic)
* Low Frequency Roll Off: 80 Hz, 12 dB/octave (condenser)
* Open Circuit Sensitivity: 49 dB (3.5 mV) re 1V at 1 Pa (condenser) -53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
* Impedance: 50 ohms (condenser) 600 ohms (dynamic)
* Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
* Dynamic Range: 122 dB, 1 kHz at Max SPL (condenser)
* Signal to Noise Ratio: 68 dB, 1 kHz at 1 Pa (condenser)
* Phantom Power Requiremens: 11-52V DC, 3.5 mA typical (condenser)
* Weight: 320 g (11.3 oz)
* Dimensions: 143.6 mm (5.65″) long, 55.0 mm (2.17″) diameter
* Output Connector: Integral 5-pin XLRM-type
* Cable: 5.0 m (16.5′) dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors

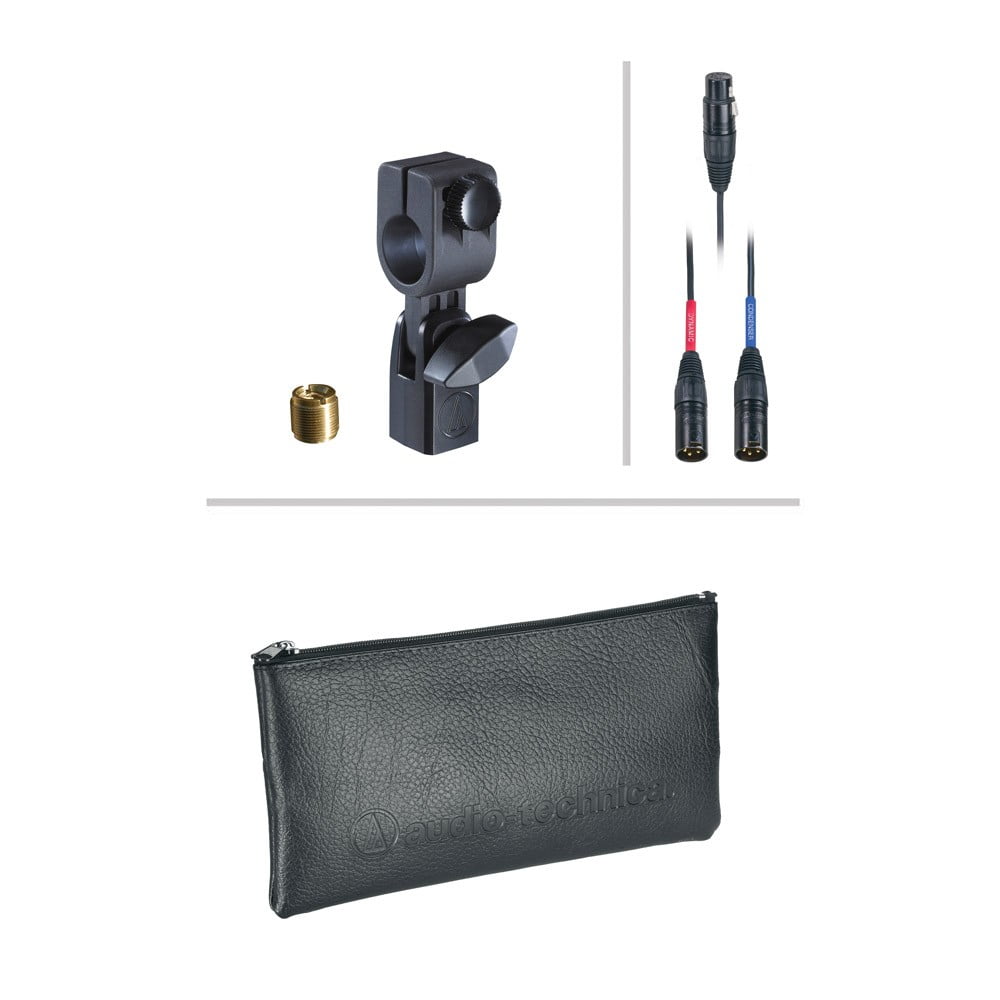

* Accessories: AT8471 isolation clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 adapter; soft protective pouch
