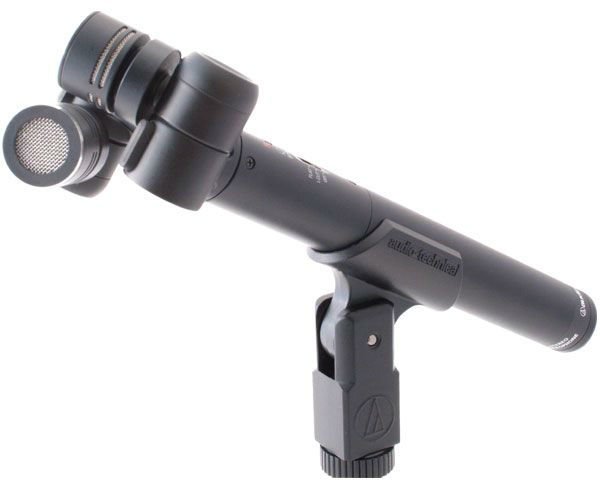

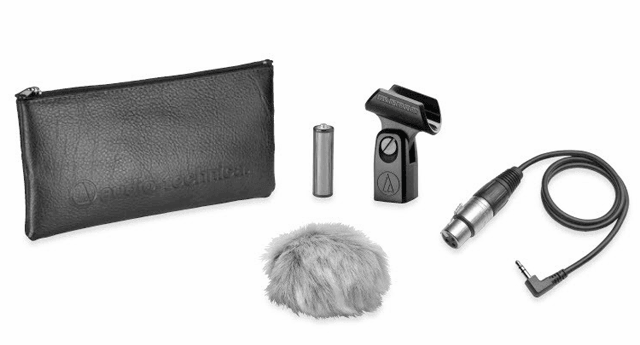

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide (120°) stereo operation. The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen and .5 m cable that terminates in a 3.5 mm stereo plug.
Mic stand clamp
0.5 m cable that terminates in a 3.5 mm stereo plug
Elements: Fixed-charge back plate, permanently polarized condenser

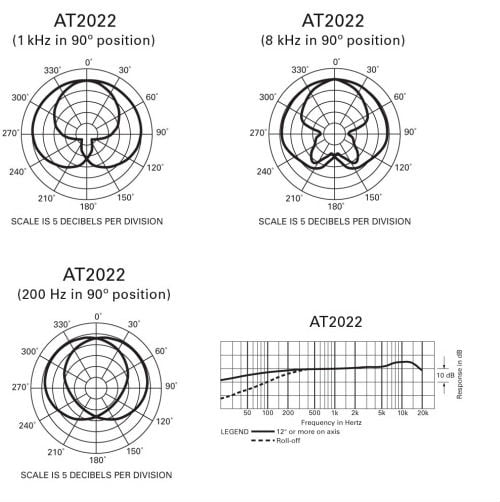

Polar Pattern: X/Y Stereo
Frequency Response: 20–20,000 Hz
Low Frequency Roll-Off: 150 Hz, 6 dB/octave
Open Circuit Sensitivity: -41 dB (8.9 mV) re 1V at 1 Pa
Channel Balance: <2.5 dB
Impedance: 200 ohms
Maximum Input Sound Level: 122 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (Typical): 103 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio: 75 dB, 1 kHz at 1 Pa
Battery Type: 1.5V AA/UM3
WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
Battery Current / Life: 1.2 mA / 500 hours typical (alkaline)
Switch: Off, on/flat, on/roll-off
Weight: 270 g (9.5 oz)
Dimensions: 192.0 mm (7.56″) long,
65.0 mm (2.56″) maximum head diameter,
21.0 mm (0.83″) body diameter
