Discontinued
  • 1U rack mount mixer
  • 8 balanced XLR channels
  • Individual channel tone controls
  • Individual Phantom Power selectors
ART
Tag: Categories: , SKU: MX/UNP/ART05

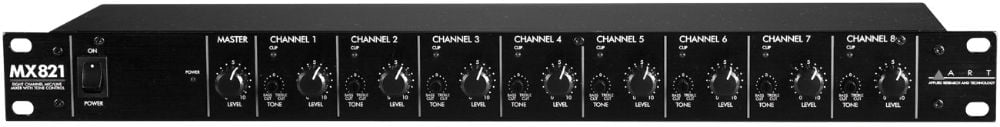

The ART MX821 is a versatile rack mount mixer combining eight independent input channels into a single mono line level mixed output.

Essential features include: XLR mic and 1/4-inch line inputs, individual level and tone controls, switch-selectable 48 Volt phantom power on each channel. Main output is balanced low impedance. An additional pre-fade output and auxiliary buss input jacks allow patching multiple MX821’s together when more channels are needed.

Built in power supply and single high 19-inch rack mount format allows for easy installation and reliable long term operation.

Features

  • Eight Independent Input Channels
  • Level and Tone Controls on each Channel
  • Balanced XLR and 1/4-inch Unbalanced Line Inputs on each Channel
  • 48 Volt Phantom Power on XLR inputs with DIP Switch for each Channel
  • Balanced TRS 1/4-inch Main Output Jack with Master Level Control
  • RCA-type Pre-Fade Output (Not Affected by Master Level Control)
  • RCA-type Aux Buss Input Jack for Channel Expansion
  • Solid Single High Rack Mount Chassis with Built In Power Supply
