Boundary layer microphone, small, lightweight and easy to place.

  • Studio-quality microphone capsule – Hemisperical pickup (Omni)
  • High sensitivity and low self-noise
  • Extremely small and inconspicuous – 80mm diameter
  • switchable bass-cut filter
  • XLR connector
  • Requires phantom power


Tag: Categories: , SKU: MI/CON/AKG41

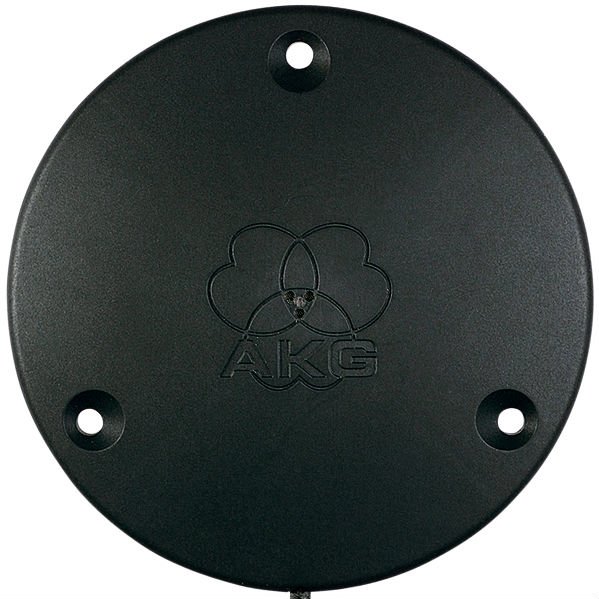

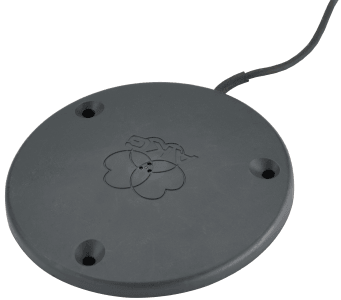

The CBL99 is a hemispherical boundary layer microphone designed to deliver superior results for a multitude of recording applications.

The CBL99 is small, lightweight and easy to place. Since the transducer sits in a metal plate only 5mm (0.2 in) thick, the plate doesn’t interfere with or color the sound. Frequency response is very uniform within its hemisphere, and it captures the “room sound” of an instrument very accurately.

The CBL99 requires 9V – 52V phantom power. Its output is balanced via a professional XLR connector with switchable bass-cut filter.

Studio-quality microphone capsule
offers a sensational price/performance ratio

High sensitivity and low self-noise
to ensure generous headroom in critical situations

Extremely small and inconspicuous
for mobile and installed solutions – 80mm diameter, 5mm height


Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 20 mV/Pa
Equivalent Noise Level 16 dB-A
Signal to Noise 78 dB-A
Recommended Load Impedance 2000 Ohms
Polar Patterns
Polar Pattern hemispherical
Powering Interface
Voltage 9 to 52 V
Current 2 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Finish matte black
Dimensions / Weight
Height 5 mm
Diameter 80 mm
Net Weight 56 g
