Power with control: this system not only ensures vocals cut through, but also provides the user with a programmable mute button on the mic. Add in a backlit graphic display, intuitive menu navigation, and you have a professional wireless system. Enjoy one-touch programming of the transmitter to the receiver via the wireless sync function. The Ethernet jack on the receiver allows for remote PC monitoring and control using Sennheiser’s “Wireless Systems Manager” software.

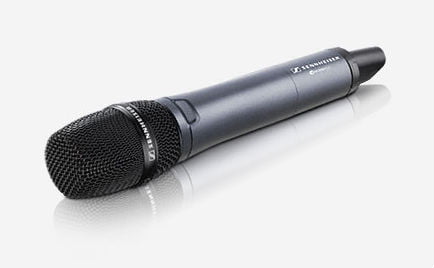

The ew 335 G3’s hand-held transmitter is perfect as a ‘roaming mic’ for spontaneous dialogue and interviews.
If you do intend to run on Channel 38 you will require a licence. Operating on Channel 70 will not require a licence.

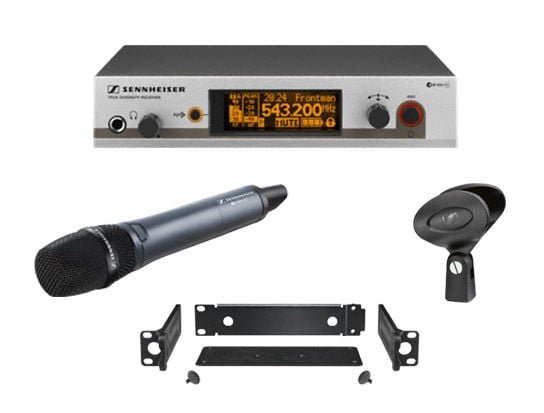

1 EM 300 G3 rack-mount receiver
1 SKM 300-835 G3 handheld transmitter (cardioid, dynamic)
1 MZQ 1 microphone clip

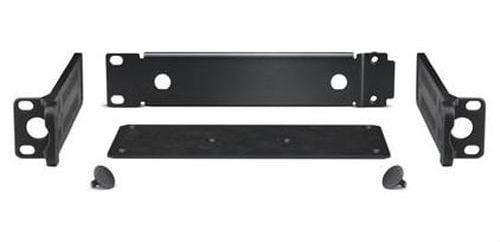

1 GA 3 rack mount
1 NT 2 power supply unit
2 AA size batteries
RF frequency range 516 ….. 865 MHz
Transmission/receiving frequencies 1680
Switching bandwidth 42 MHz
Peak deviation /- 48 kHz
Frequency response (microphone) 80…..18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) 18 dBu max
Audio output level (unbalanced) 10 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 980 g
RF output power 10/30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 2,1 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern cardioid
